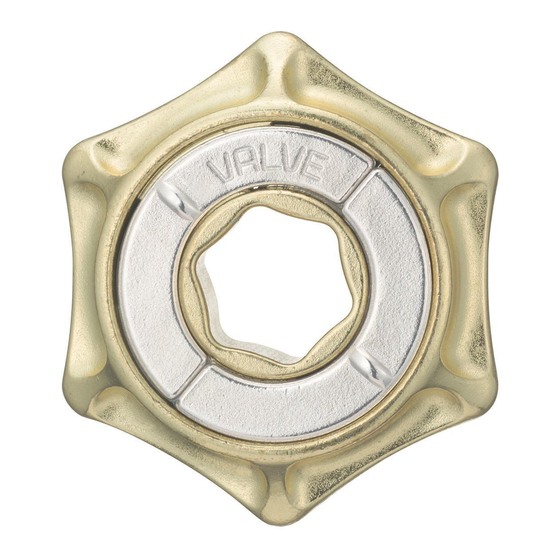

B: Inside piece(Silver)
*VALVE mark on the rear side
D: Inside piece (Gold)
①
While holding it as illustrated
below, rotate D leftwards. When
it is rotated, B and C are hooked
and rotate together.
④
From the position in ③, rotate
only D leftwards until it stops,
and place on the table so that D
rises.
When viewed from the side
(To our customers)
We provide this explanatory diagram as a key to the puzzle.
Due to the nature of the products,we cannot provide any
explanations over the telephone.Thank you for your understanding.
INSTRUCTION FOR CAST VALVE 1
Starting
Position
②
Keep rotating so that the tops
of A and D are aligned.
⑤
Rotate B, C and D leftwards to
the positions shown below, and
lift up so that D falls.
When viewed from the side
A: Outside piece (Gold)
C: Outside piece (Gold)
*with HANAYAMA mark
③
There is a position where, out of
the 6 tops, C slides to the bottom.
*A star mark (★) is given as a guide.
When viewed from the side
⑥
Rotate only D rightwards to the
position shown below so that D
falls.
When viewed from the side
HANAYAMA Co., Ltd.
Unauthorized duplication is prohibited.
