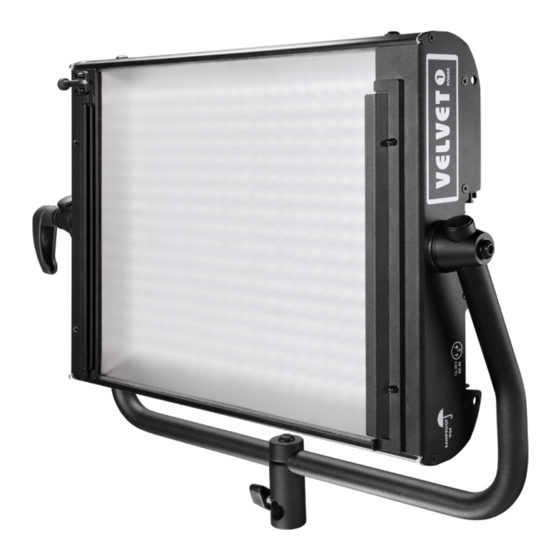

- Page 1 Power 1 (IP54/Studio) Power 2 (IP54/Studio) Power 2x2 (IP54/Studio) Last updated on August 2022 User manual...
-
Page 2: Velvet Power
velvetlight.tv... - Page 3 For your own safety, please read and follow all safety instructions and precautions warnings. Exemption VELVET (THELIGHT Luminary) does not assume any responsibility for lighting from liability failures caused by malfunction of this product. The manufacturer disclaims liability for any damage to persons or property caused by inappropriate operation, damage of this kind lies in the responsibility of the operator.
- Page 4 LED panel side covers or front plastic diffuser. No user-serviceable parts inside. Maintenance and repair work to be carried out only by VELVET Service Centre. Do not cover the aluminium lamp head heat sink while using it. Proper ventilation must be provided.
-
Page 5: Table Of Contents
Power cables Beam Control Transport Rigging Cables Remote Control Placing into operation VELVET Power 1 & 2 Yoke to LED Panel assembling VELVET Power 2x2 Yoke to LED Panel assembling Pole Operated Yoke to LED Pannel assembling Mounting Options Security cables... - Page 6 Accessories installation Snapgrid installation Snapbag installation Diagrams VELVET Power 1 VELVET Power 2 VELVET Power 2x2 Digital adjustments Color Dimming Master & slave DMX RDM controls Adressing channels Chromacity coordinates diagram Regulations Warranty QR links...
-
Page 7: Main Features
(CCT) of the light emitted by VELVET and other LED light fixtures. The eventual diversions to green display as CC05M or CC10M in hand- held color meters are due to these unaccuracy on reading of the light emitted by LED and must not be considered. - Page 8 (NIST) of the United States and of the Physikalisch-Technische Bundesanstalt (PTB) of Germany. In order that the advanced VELVET luminaries could be used together with other light sources, VELVET has accurately calibrated both the CCT and the chromatic coordinates to match them with traditional light...
-
Page 9: Power Series Range Models
B. Power series families Power series range models IP54 Weatherproof IP51 Studio Dustproof VP1IP54NY VP1IP54SPNY VP1STNY VP1SPSTNY VELVET Power 1 VELVET Power 1 VELVET Power 1 VELVET Power 1 30º weatherproof Spot 15º 30º Studio LED panel Spot 15º Studio... -
Page 10: Velvet Power 1 Ip54 Weatherproof
IP54 Studio C. IP54 Weatherproof range models IP54 weatherproof range models VELVET Power 1 IP54 (Ref: VP1IP54NY / VP1IP54SPNY) PARTS XLR-3 DC IN Power switch Adjustment buttons 3200K/ 5600K Quick access button Mode selection button (Dimmer/ Colour Temp) Digital display... - Page 11 From -20ºC to +40ºC COOLING No-noise, fan-free passive cooling PROTECTION IP54 rainproof, indoor or outdoor use VELVET LED TECHNOLOGY Selected BIN High-power LED + VELVET custom optics + CPU software control CONSTRUCTION & FINISH Made of black powdercoated extruded and sheet aluminum...
-
Page 12: Velvet Power 2 Ip54 Weatherproof
IP54 Studio C. IP54 Weatherproof range models VELVET Power 2 IP54 (Ref: VP2IP54NY / VP2SPIP54NY) PARTS XLR-3 DC IN Power switch Adjustment buttons 3200K/ 5600K Quick access button Mode selection button (Dimmer/ Colour Temp) Digital display XLR-5 DMX In&Out... - Page 13 From -20ºC to +40ºC COOLING No-noise, fan-free passive cooling PROTECTION IP54 rainproof, indoor or outdoor use VELVET LED TECHNOLOGY Selected BIN High-power LED + VELVET custom optics + CPU software control CONSTRUCTION & FINISH Made of black powdercoated extruded and sheet aluminum...
-
Page 14: Velvet Power 2X2 Ip54 Weatherproof
IP54 Studio C. IP54 Weatherproof range models VELVET Power 2x2 IP54 (Ref: VP2X2IP54NY / VP2X2SPIP54NY) PARTS Power switch XLR-3 DC IN Adjustment buttons 3200K/ 5600K Quick access button Mode selection button (Dimmer/ Colour Temp) XLR-5 DMX Out Digital display XLR-5 DMX In... - Page 15 From -20ºC to +40ºC COOLING No-noise, fan-free passive cooling PROTECTION IP54 rainproof, indoor or outdoor use VELVET LED TECHNOLOGY Selected BIN High-power LED + VELVET custom optics + CPU software control CONSTRUCTION & FINISH Made of black powdercoated extruded and sheet aluminum...
-
Page 16: Power Options
IP54 Studio C. IP54 Weatherproof range models POWER OPTIONS AC POWER 90 to 264 VAC STEP 1 Insert the power supply plate by sliding it into the slot located at the back of the panel. Insert and extract the plate from the right hand of the panel where the digital display is located. - Page 17 Connect any battery from 12 to 35 VDC to the XLR3 connector located at the back of the panel When powering VELVET from an external battery through the XLR3 connector check the proper polarity as shown in the picture at the side of the panel.
-
Page 18: Ip54 Weatherproof Models Accessories
IP54 Studio D. IP54 Weatherproof models accessories Weatherproof models accessories POWER SUPPLY VL-PSU120W 100W AC power supply + mount for VELVET Power 1 VLIP54-PSU120W 120W weatherproof AC power supply + mount for VELVET Power 1 VP2IP54-PSU 200W AC power supply... -
Page 19: Battery Adapters
VL1-VLOCK Vlock battery adapter on VELVET plate for VELVET Power 1 VL2-VLOCK Double Vlock battery adapter + mount for VELVET Power 2 VL1-GOLD Gold battery adapter on VELVET plate for VELVET Power 1 VL2-GOLD Double Gold battery adapter + mount for VELVET Power 2... - Page 20 DopChoice 40º Snapgrid for VELVET Power 2 Snapbag VL2X2-SGXSB DopChoice 40º Snapgrid for VELVET Power 2x2 Snapbag VP1-D25 Diffuser 1/4 for VELVET Power 1 VP1-D50 Diffuser 1/2 for VELVET Power 1 VP1-D100 Diffuser Full for VELVET Power 1 VP1-DVL VELVET Diffuser (+100) for...
- Page 21 IP54 Studio D. IP54 Weatherproof models accessories VP2-D25 Diffuser 1/4 for VELVET Power 2 VP2-D50 Diffuser 1/2 for VELVET Power 2 VP2-D100 Diffuser Full for VELVET Power 2 VP2-DVL VELVET Diffuser (+100) for VELVET Power 2 VP2X2-D25 Diffuser 1/4 for VELVET Power 2x2...
- Page 22 Rectangular Rabbit Ears aluminum frame for 2x1 panels 2X2-RABBITSQ DopChoice Rabbit Ears frame for VL2x2 and VP2x2 VL2X2-SPACEKIT Spacelight Hilite Kit + mount frame for VELVET Power 2x2 VL2X2-H Hanger mount for VELVET Power VL2X2-SLOTKIT Slots kit for VELVET Power 2x2...
- Page 23 IP54 Studio D. IP54 Weatherproof models accessories OCTA-SBR03 OCTA 3 foldable Snapbag 0,9m diameter for Rabbit Ears mount OCTA3-SG DopChoice 40º Snapgrid for Octa 3 OCTA-SBR05 OCTA 5 foldable Snapbag 1,5m diameter for Rabbit Ears mount OCTA5-SG DopChoice 40º Snapgrid for Octa 5 OCTA-SBR07 OCTA 7 foldable Snapbag...
-
Page 24: Transport
OCTA-SBR03 OCTA 3 foldable Snapbag 0,9m diameter for Rabbit Ears mount TRANSPORT VL1-BAG Soft bag for 1x VELVET Power 1 VL1-DBAG Soft bag for 2x VELVET Power 1 VL2-BAG Soft bag for 1x VELVET Power 2 VL1-CASE Flight case for VELVET Power 1... -
Page 25: Cables
DMX-DMX6M DMX daisy- chain cable 6m / 20 feet DMX-DMX10M DMX daisy- chain cable 10m / 33 feet DMX-DMX20M DMX daisy- chain cable 20m / 66 feet THE-DMXINOUT DMX aerial splitter in out REMOTE CONTROL VL-RC VELVET DMX remote control... -
Page 26: Velvet Power 1 Studio
IP54 Studio E. Studio range models IP51 Dustproof range models VELVET Power 1 Studio (Ref: VP1STNY / VP1SPSTNY) PARTS XLR-3 DC IN Power switch XLR DMX-5 OUT Adjustment buttons 3200K/ 5600K Quick access button Mode selection button (Dimmer/ Colour Temp) - Page 27 From -20ºC to +40ºC COOLING No-noise, fan-free passive cooling PROTECTION IP51 dustproof, indoor or outdoor protected use VELVET LED TECHNOLOGY Selected BIN High-power LED + VELVET custom optics + CPU software control CONSTRUCTION & FINISH Made of black powdercoated extruded and sheet aluminum...
-
Page 28: Velvet Power 2 Studio
IP54 Studio E. Studio range models VELVET Power 2 Studio (Ref: VL2STNY/ VP2SPSTNY) PARTS XLR-3 DC IN Power switch Adjustment buttons 3200K/ 5600K Quick access button Mode selection button (Dimmer/ Colour Temp) XLR DMX-5 OUT Digital display XLR-5 DMX IN... - Page 29 From -20ºC to +40ºC COOLING No-noise, fan-free passive cooling PROTECTION IP51 dustproof, indoor or outdoor use VELVET LED TECHNOLOGY Selected BIN High-power LED + VELVET custom optics + CPU software control CONSTRUCTION & FINISH Made of black powdercoated extruded and sheet aluminum...
-
Page 30: Velvet Power 2X2 Studio
IP54 Studio E. Studio range models VELVET Power 2x2 Studio (Ref: VP2X2STNY / VP2X2SPSTNY) PARTS Power switch XLR-3 DC IN Adjustment buttons 3200K/ 5600K Quick access button Mode selection button (Dimmer/ Colour Temp) XLR-5 DMX Out Digital display XLR-5 DMX In... - Page 31 From -20ºC to +40ºC COOLING No-noise, fan-free passive cooling PROTECTION IP51 dustproof, indoor or outdoor use VELVET LED TECHNOLOGY Selected BIN High-power LED + VELVET custom optics + CPU software control CONSTRUCTION & FINISH Made of black powdercoated extruded and sheet aluminum...
-
Page 32: Power Options
IP54 Studio E. Studio range models POWER OPTIONS AC POWER 90 to 264 VAC STEP 1 Insert the power supply plate by sliding it into the slot located at the back of the panel. Insert and extract the plate from the right hand of the panel where the digital display is located. -
Page 33: Studio Dustproof Models Accessories
VL1ST-PSU 100W AC power supply + mount for VELVET Power 1 Studio VP2ST-PSU 200W AC power supply + mount + power cable for VELVET Power 2 Studio VP2X2ST-PSU 340W AC power supply + mount + cable for VELVET Power 2x2... -
Page 34: Beam Control
IP54 Studio F. Studio models accessories BEAM CONTROL VL1-RB Barndoors for VELVET Power 1 VL2-RB Barn doors for VELVET Powrer 2 VL2X2-RB Barndoors for VELVET Power 2x2 VL1-SG DopChoice 40º Foldable Snapgrid for VELVET Power 1 VL2-SG DopChoice 40º Foldable Snapgrid... - Page 35 DopChoice 40º Snapgrid for VELVET Power 2 Snapbag VL2X2-SGXSB DopChoice 40º Snapgrid for VELVET Power 2x2 Snapbag VP1-D25 Diffuser 1/4 for VELVET Power 1 VP1-D50 Diffuser 1/2 for VELVET Power 1 VP1-D100 Diffuser Full for VELVET Power 1 VP1-DVL VELVET Diffuser (+100) for...
- Page 36 IP54 Studio F. Studio models accessories VP2X2-D25 Diffuser 1/4 for VELVET Power VP2X2-D50 Diffuser 1/2 for VELVET Power VP2X2-D100 Diffuser Full for VELVET Power VP2X2-DVL VELVET Diffuser (+100) for VELVET Power 2x2 VP1-FBAG 1x1 diffusion filters protection VP2-FBAG 2x1 diffusion filters protection...
- Page 37 IP54 Studio F. Studio models accessories 2X2-RABBITSQ DopChoice Rabbit Ears frame for VL2x2 and VP2x2 VL2X2-SPACEKIT Spacelight Hilite Kit + mount frame for VELVET Power 2x2 VL2X2-H Hanger mount for VELVET Power VL2X2-SLOTKIT Slots kit for VELVET Power 2x2...
- Page 38 IP54 Studio F. Studio models accessories OCTA-SBR03 OCTA 3 foldable Snapbag 0,9m diameter for Rabbit Ears mount OCTA3-SG DopChoice 40º Snapgrid for Octa 3 OCTA-SBR05 OCTA 5 foldable Snapbag 1,5m diameter for Rabbit Ears mount OCTA5-SG DopChoice 40º Snapgrid for Octa 5 OCTA-SBR07 OCTA 7 foldable Snapbag 2,1m...
-
Page 39: Transport
IP54 Studio F. Studio models accessories TRANSPORT VL1-BAG Soft bag for 1x VELVET Power 1 VL1-DBAG Soft bag for 2x VELVET Power 1 VL2-BAG Soft bag for 1x VELVET Power 2 VL1-CASE Flight case for VELVET Power 1 VL2-CASE Flight case for VELVET Power 2... -
Page 40: Cables
DMX-DMX6M DMX daisy- chain cable 6m / 20 feet DMX-DMX10M DMX daisy- chain cable 10m / 33 feet DMX-DMX20M DMX daisy- chain cable 20m / 66 feet THE-DMXINOUT DMX aerial splitter in out REMOTE CONTROL VL-RC VELVET DMX remote control... -
Page 41: Placing Into Operation
IP54 Studio G. Placing into operation Placing into operation VELVET POWER 1 & 2 YOKE TO LED PANNEL ASSEMBLING VL1-YT VELVET Power 1 & 2 yoke kit VL2-YT Spigots assembling pieces a. EV-EURO28-T Kit Euro 28mm junior pin for tubular yoke b. - Page 42 (*) Generally, spigots and yokes are assembled together, but depending on the size of the assembling box, the spigot may have to be assembled separately by the customer. Spigot mounting Ref: Ref: THE-2816CTUBE EV-EURO28-T STEP 2 Align the adjustable yoke with the VELVET Power panel as shown in the picture. Alignment...
- Page 43 IP54 Studio G. Placing into operation Assemble the yoke to the LED panel by using the mounting Kit of bolts STEP 3 (e), washers (g, h, i) and adjustable handle (f). First mount the handles Assembling with the metric M8 metal washer then insert the thick rubber washers steps between the yoke and the LED panel.
-
Page 44: Velvet Power 2X2 Yoke To Led Panel Assembling
IP54 Studio G. Placing into operation VELVET POWER 2X2 YOKE TO LED PANNEL ASSEMBLING VL2X2-YD Yoke disc kit for VELVET Light 2x2 and VELVET Power 2x2 a. TOR-D711M8 Thrust bearing M8 b. TOR-D6796M8 Conical spring washer M8 c. THE-UFIJACION U-Clamp for 2x2 yoke adjustable handle d. - Page 45 IP54 Studio G. Placing into operation Steps scheme STEP 1 Place the nylon cap and assemble this side of the yoke using the socket button head cap screw (h), the conical spring washer (b), the thrust bearing M8 and the yoke bushing (m). Place the ferodo washer between te yoke and the panel.
- Page 46 IP54 Studio G. Placing into operation STEP 2 Place the remaining nylon cap and use the socket buton cap screw again as an axis for the conical spring washer (b), the thrust bearing and the yoke bushing (i). Use the bottom hole to fix the wide wing washer M8 and the U-Clamp piece with the adjustable...
-
Page 47: Pole Operated Yoke To Led Pannel Assembling
IP54 Studio G. Placing into operation POLE OPERATED YOKE TO LED PANNEL ASSEMBLING VL1-YPO Pole operated yoke for VELVET VL2-YPO Light series and VELVET Power VL2X2-YPO series STEP 1 Remove the ferodo washer fixed with two Philips countersunk head screws M4x10 black on the right side panel cover as show in the picture. - Page 48 IP54 Studio G. Placing into operation Display the panel over a table with the back facing to you and the STEP 3 display and tactile buttons to the right. Mount the Pole Operated yoke with the tilt gear box facing to the right. Insert the hexagon socket head cap screw M8x80 with its washer through the PO yoke gear box...
-
Page 49: Mounting Options
The LED panel is provided with several holes specially design to insert one o more snaps and their safety cable. When a VELVET panel and any other component is mounted in a hanging position it must be secured with a safety cable rated at a minimum of ten times the weight of the light fixture including its accessories. -
Page 50: Accessories Installation
VL2X2-SG VL2X2-SG20 STEP 1 Position the VELVET panel with the light pointing up. Unfold the snapgrid, place it over the VELVET diffuser and flip the elastics over the panel corners to secure it. The side covers prevent emitting of spill light. -
Page 51: Snapbag Installation
Studio H. Accessories installation SNAPBAG INSTALLATION VL1-SB DopChoice SnapBag softbox for VL2-SB VELVET Light series and VELVET VL2X2-SB Power series STEP 1 Open the Snapgrid and secure it over the Power Panel by hooking the rear velcro strips (a). STEP 2... - Page 52 IP54 Studio H. Accessories installation At the end of process, secure again all velcros and tensors.Check the STEP 3 front corners and finish the assembly using the central maintensioners so that the assembly looks equal, centered and firm. STEP 4 Hook in the intermediate diffuser fabric using the white velcro strips on the corners of the snap bag.
-
Page 53: Diagrams
IP54 Studio I. Diagrams Diagrams VELVET Power 1+MO Yoke 495 mm 380 mm 310 mm 308 mm THE-2816CTUBEK EV-EURO28-T VELVET Power 1+PO Yoke 435 mm... - Page 54 IP54 Studio I. Diagrams VELVET Power 2+MO Yoke 815 mm 690 mm 612 mm mm 515 THE-2816CTUBEK EV-EURO28-T VELVET Power 2+PO Yoke 880 mm...
-
Page 55: Velvet Power 2X2
IP54 Studio I. Diagrams VELVET Power 2x2+MO Yoke 770 mm 690 mm 612 mm VELVET Power 2x2+PO Yoke 880 mm... -
Page 56: Digital Adjustments
The digital control enables to adjust the following light parameters through its programmed CPU: •Calibrated color temperature variation •Stable color dimming Color VELVET Power series includes a dedicated button to immediately set temperature 3200K or 5600K. variation Color temperature can also be increased or reduced through the buttons located at the digital control panel. -
Page 57: Dimming
Power product together and operate them all without a controller. The first VELVET fixture will be the Master acting as the controller and all the others will react and copy the color temperature and dimmer values. Use DMX XLR-5 in&out splitter cables (ref. THE-VL-DMXinout) to daisy chain several VELVET Power panels. -
Page 58: Dmx Rdm Controls
Every time you switch off the power button the VELVET panels are automatically set to SLAVE mode. Only the first VELVET panel on the chain can be the Master. Every other VELVET panels must be set on standard Slave mode and address at channel 001. -
Page 59: Adressing Channels
• After the DMX address is entered the fixture will automatically assign the following channel • If you wish to control several VELVET fixtures at the same values you will have to set them to the same address • If you wish to control several VELVET fixtures independently you will have to offset their address by 2 channels. -
Page 60: Chromacity Coordinates Diagram
D illuminants. The diagram evidence the light emanated by VELVET luminary at every color temperature entirely matches with the described locus reference so that the color of the light produced is essentially the same as incandescent and daylight. - Page 61 30932004, with its accessory TOP-100 has an imprecision over the spectral radiometric results delivered lower than 1%. Specifications subject to change without notice. VELVET technology is protected under Spanish license laws with international patents pending. THELIGHT luminary for cine and tv, S.L...
-
Page 62: Regulations
VELVET Cyc3, Cyc4, Cyc5, Cyc6 VELVET Mini 1, Mini 2, Mini 3 VELVET Mini Power 1, Mini Power 2 VELVET Light 1, Light 2, Start 2, Light 2x2, Light 4 VELVET Power 1, Power 2, Power 2x2 VELVET Sword 2, Sword 4. - Page 63 IP54 Studio L. Regulations DIRECTIVE 2011/65/EU of the European Parliament and of the Council of 8 June 2011on the restriction of the use of certain hazardous substances in electrical and electronic equipment. In compliance with the harmonized standards: IEC 60598-1:2014 Luminaires - Part 1: General requirements and tests. IEC 60598-1-17:2017 Luminaires - Part 2-17: Particular requirements - Luminaires for stage lighting, television and film studios (outdoor and indoor).
-
Page 64: Warranty
M. Warranty Warranty General warranty VELVET LED light equipments are guaranteed to be free from defects in workmanship and parts in a warranty period of two (2) years from the date of purchase. Defects that occur within this warranty period, under normal use and care will be repaired or replaced at VELVET discretion, solely at our option with no charge for parts or labour. - Page 65 The total or partial reproduction of this guide is prohibited without the express written permission of VELVET. VELVET technology is protected under Spanish license laws with international patents pending. Information and specifications in this document are subject to change without notice.
-
Page 66: Qr Links
IP54 Studio N. QR links QR Links VELVET Power series website VELVET Power series suport documents... - Page 67 velvetlight.tv...
- Page 70 Design, Engineering & Production center Carrer de la Cerdanya. 11A 08192 — St. Quirze del Vallès Barcelona (Spain) +34 937 073 011 info@velvetlight.com VELVET USA Office 7411 Laurel Canyon, unit 3 North Hollywood, CA 91605 +1 (818) 358 2888 usa@velvetlight.tv velvetlight.tv...
