Summary of Contents for Jetting TriggAIR

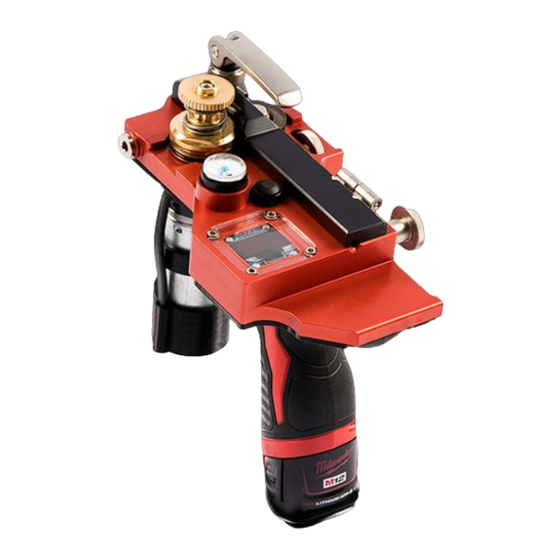

- Page 1 TriggAIR Product model/type: TriggAIR TriggAIR USER'S GUIDE AND SAFETY MANUAL...
- Page 2 For permission requests, write to the publisher, addressed “Attention: Permissions Coordinator” at the address below. Jetting AB, Murgatan 1, 522 35 Tidaholm, Sweden jetting.se info@jetting.se...
- Page 3 Important safety notice Read and understand all procedures and safety instructions before using the TriggAIR. Observe all safety information on this page and note specific safety requirements as explained by procedures in this manual. Failure to follow these instructions could result in serious personal injury or death.
-
Page 4: Table Of Contents
Table of contents Section Page General information Technical information Safe operating practices Unpacking the box Set up the TriggAIR Crash test Blower operations Maintenance Troubleshooting guide EC Declaration of Conformity Notes... -
Page 5: General Information 1
The TriggAIR is supplied in hard side case including the TriggAIR, box for seals, 2 pcs battery and charger. As option for the TriggAIR you can get a tripod and reel arm kit for pre terminated fibre. -
Page 6: Technical Information
2. Technical information A. Condition of use Temperature from -15° C to +40° C Humidity from 20 % to 90 % Weather conditions relevant to working conditions Natural and/or artificial lighting of the work site, >200 lux B. Air compressor requirements Pneumatic pressure 16 bar maximum Required air flow... -
Page 7: Safe Operating Practices
3. Safe operating practices Read and understand all procedures and safety instructions before using the TriggAIR. Observe all safety information on this page and note specific safety requirements as explained by procedures called out in this manual. Failure to follow these instructions could result in serious personal injury, property damage or death. -
Page 8: Unpacking The Box
4. Unpacking the box A. Components Each TriggAir Kit contains the following items: TriggAIR main unit with built in clamps for 5,0- and 7,0-mm duct Cejn Air regulator Behöver en bättre bild 2 pcs Batteries Battery Charger Robust protecting case... - Page 9 (2 m) or more from the TriggAIR. The TriggAIR must be positioned in-line between the fiber to be installed and the micro duct. The fiber should not enter the TriggAIR at an angle of more than 10 degrees from the intended axis.
-
Page 10: Crash Test
IMPORTANT For the Crash Test to work properly, use the same size fiber and pipe that will be used for the job. Jetting cannot be responsible for any fiber damages. Crash Test: For all types of fibers > 0,5 mm diameter Insert the fiber and seal inside the duct as it would be for the actual installation. -
Page 11: Blower Operations
7. Blower operations 1. Verify adjustable push force Verify adjustable push force is set to the established crash test value and the speed is at minimum. 2. Engage wheel drive The wheel drive can be operated forward and backward. For installation, engage the wheel drive in forward by pressing the button. -
Page 12: Maintenance
Wheel cleaning and tightening use, or when necessary Disconnect power supply and exhaust any air pressure before servicing any component on the TriggAIR. Avoid handling leaking couplings, valve seal or inadequately sealed pipe in air block. DANGER! Risk of air under pressure penetrating skin. -
Page 13: Troubleshooting Guide
9. Troubleshooting guide Fiber becomes jammed in the duct 1. Inform the people at the other end of the pipe that a problem has been experienced and the operator is going to shut down the system. 2. Shut off the air supply with the air control valve, allowing the air pressure to be depressurized from the duct and the duct clamp air block. -
Page 14: Ec Declaration Of Conformity
10. EC Declaration of Conformity... -
Page 15: Notes 11
11. Notes... - Page 16 TriggAIR USER'S GUIDE AND SAFETY MANUAL...
