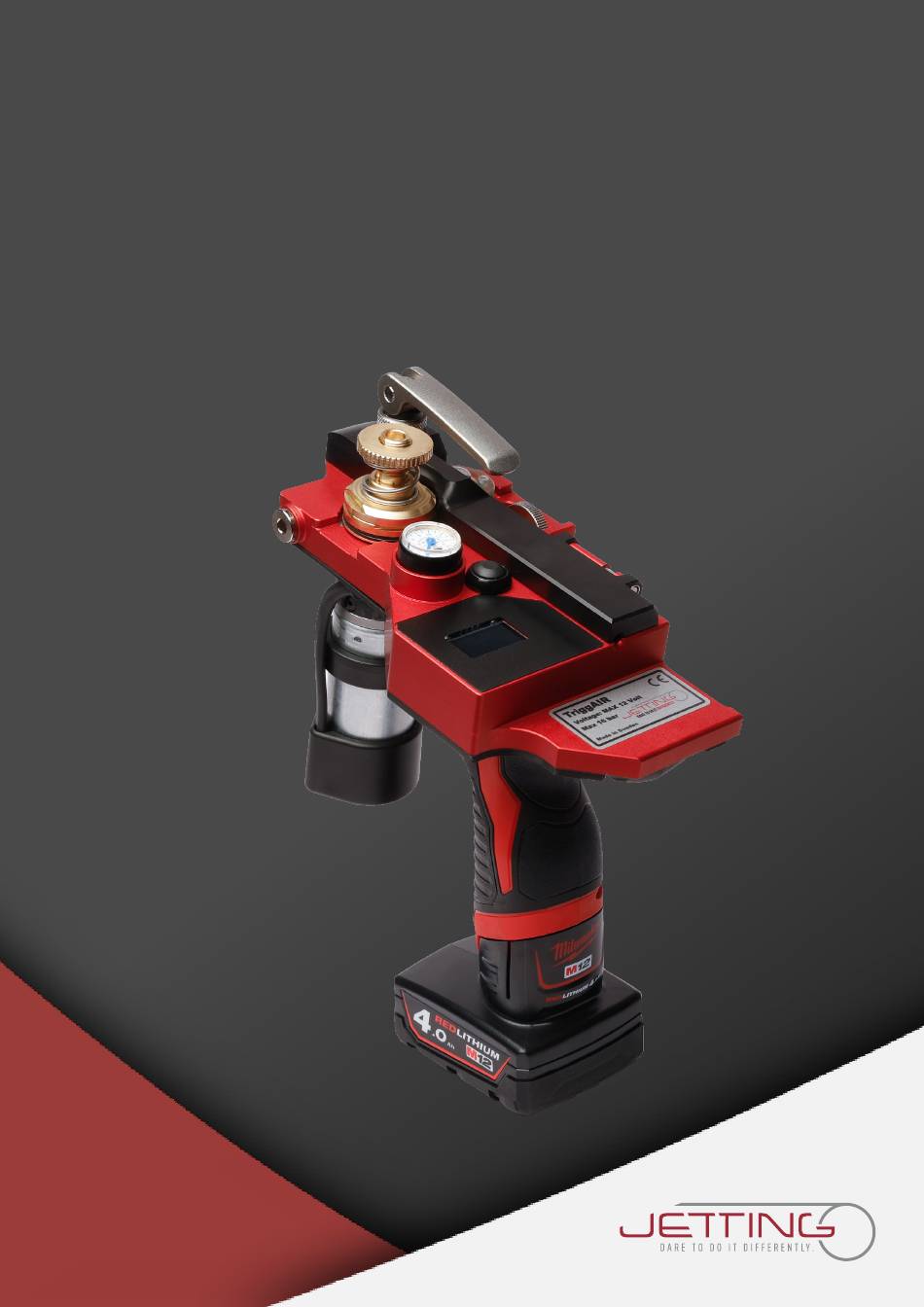

- Page 1 Triggair Product model: Triggair Triggair USER’S GUIDE AND SAFETY MANUAL...
- Page 2 For permission requests, write to the publisher, addressed ”Attention: Permissions Coordinator,” at the address below. Jetting AB, Murgatan 1, 522 30 Tidaholm, Sweden jetting.se | info@jetting.se...
- Page 3 Clamp Lid 2. Counting Wheel 3. Manometer 4. Track for fiber 5. Power Button 6. Display 7. Quick Connector 8. Adjustable clutch for fiber protection 9. Drive Wheel 10. Trigger 11. Battery indicator 12. Expander Unit 13. Pressure adjustment 14. Mount for Reelarm 15.
- Page 4 Important Safety Notice Read and understand all procedures and safety instructions before using the Triggair fiber blowing machine. Please note all safety information on this page and take note of specific safety requirements outlined in the procedures of this manual. Failure to follow these instructions may result in serious personal injury or death.
-
Page 5: Table Of Contents
Table of contents Section Page General information Technical information Safety regulations Unpacking the case Set up the machine Cable Crash Test Machine operations Maintenance Repair & Service Troubleshooting Documentation and disposal EC Declaration of Conformity Notes... -
Page 6: General Information 1
The Triggair is a unique handheld device for installing fiber optic directly into a duct. The Triggair consist of an air block with max air pressure of 16 bar and duct clamps for 3,0*, 5,0, 7,0 and 8,0 mm ducts. The drive wheel, powered by a 12 V battery, will work together with compressed air to install fibers ranging from 0,8 to 3,0 mm in diameter into an airtight duct, at speeds of 0 to 150 m/min. -
Page 7: Technical Information
2. Technical information 2.1. Condition of use Temperature from -15° C to +40° C 2. Humidity from 20 % to 90 % 3. Weather conditions relevant to working conditions 4. Natural and/or artificial lighting of the work site, >200 lux 2.2. -
Page 8: Safety Regulations
3. Safety Regulations Read and understand all procedures and safety instructions before using the Triggair. Please note all safety information on this page and take note of specific safety requirements explained by procedures outlined in this manual. Failure to follow these instructions may result in serious personal injury, proper- ty damage, or death. - Page 9 • Only charge your battery using the compatible Jetting charger provided with your battery. Never discharge your battery other than in normal use on the Triggair. • At the end of the battery’s life, dispose at your local recycling centre.
-
Page 10: Unpacking The Case
(Lumens/m^2). 4. Unpacking the Case 4.1. Components Each Triggair STD Kit contains the following items: • Triggair main unit with built in clamps for 3,0*, 5,0, 7,0 and 8,0 mm duct • Cejn Air regulator • 2 pcs batteries •... -
Page 11: Set Up The Machine
5. Set Up the Machine This manual contains setup and operating instructions for the Triggair. Do not connect power or air supply until the installation is complete. 5.1. Determine fiber cable size Determine fiber cable size to be installed. 5.2. Select and install duct and cable seal Select a cable seal that fits the fiber cable to be installed. - Page 12 (2 m) or more from the Triggair. The Triggair must be positioned in-line between the fiber to be installed and the micro duct. The fiber should not enter the Triggair at an angle of more than 10 degrees from the intended axis.
-
Page 13: Cable Crash Test
Fiber Crash Testing is a very quick and easy step to be completed before attempting the installation of fiber cable with the Triggair. This test is necessary to set the pushing force control of the motor below the point that the Triggair may cause fiber damage as a result of over pushing or encountering an obstruction in the duct. -
Page 14: Machine Operations
7. Machine operations Always wear protective equipment: hard hat, safety glasses, safety shoes and work glove. Motor is not covered by warranty if motor is overheated. When exceeding maximum pushing force (clutch fully engaged), let the motor cool down between the sessions. 7.1. -
Page 15: Maintenance
Disconnect the air supply and vent any air pressure before servicing any component on the Triggair. Make sure the cruise control is deactivated. Disconnect the battery. Avoid handling leaking connections, valve seals, or inadequately sealed duct clamps. DANGER! Risk of compressed air penetrating the skin causing air embolism. -
Page 16: Repair & Service
9. Repair & Service Repair & Service should be performed by Authorized Jetting Service Center or Jetting AB. See Authorized Jetting Service Center at www.jetting.se. 10. Troubleshooting Fiber becomes jammed in the duct Notify the people at the other end of the duct that an issue has occurred, and the operator will shut down the system. -
Page 17: Ec Declaration Of Conformity
Address: Murgatan 1 522 35 TIDAHOLM SWEDEN Hereby declares that: Type of machinery: Fiber jetting machine No. of machinery: TriggAIR Complies with the requirements of Machinery Directive 2006/42/EC. Complies also with applicable requirements of the following EC directives: 2014/30/EU, EMC... -
Page 18: Notes
13. Notes... - Page 20 TRIGGAIR USER’S GUIDE AND SAFETY MANUAL...
