AccuTherm™ SmartLOG
FEATURES
•
Monitor 1 or 2 Wireless Temperature Sensors Simultaneously
•
Ambient Room Temperature and Humidity Displayed & Recorded
•
SMS and Email Alerts
•
Replaceable Wireless Sensors!
No down time for sending equipment back for calibration.
No fumbling with wires in fridge.
•
Bright Color Touch Display for ease of use.
•
Web Dashboard, use any browser on local network
No cloud, No subscription fees!
•
Enterprise Network Login for Security
•
Time automatically synchronized from internert
•
Reports in .PDF format
•
No PC Software needed
*Second Temperature Sensor optional (cat#: ACCSLBLET)
NOTE: This device requires an email account in order to send email and sms alert messages.
Certain email accounts, Microsoft365 (Formerly Office365), Godaddy Office365 and Gmail
have extra setup steps that might require administrative rights to these accounts.
If you don't have access to the email administrative portal, Consult your IT Department.
2021
®
MANUAL
ACCSL2021
Advertisement
Table of Contents
Related Manuals for AccuTherm SmartLOG ACCSL2021
Summary of Contents for AccuTherm SmartLOG ACCSL2021
- Page 1 AccuTherm™ SmartLOG 2021 ® MANUAL ACCSL2021 FEATURES • Monitor 1 or 2 Wireless Temperature Sensors Simultaneously • Ambient Room Temperature and Humidity Displayed & Recorded • SMS and Email Alerts • Replaceable Wireless Sensors! No down time for sending equipment back for calibration. No fumbling with wires in fridge. • Bright Color Touch Display for ease of use. • Web Dashboard, use any browser on local network No cloud, No subscription fees! • Enterprise Network Login for Security • Time automatically synchronized from internert • Reports in .PDF format • No PC Software needed *Second Temperature Sensor optional (cat#: ACCSLBLET) NOTE: This device requires an email account in order to send email and sms alert messages.
-
Page 2: Main Screen

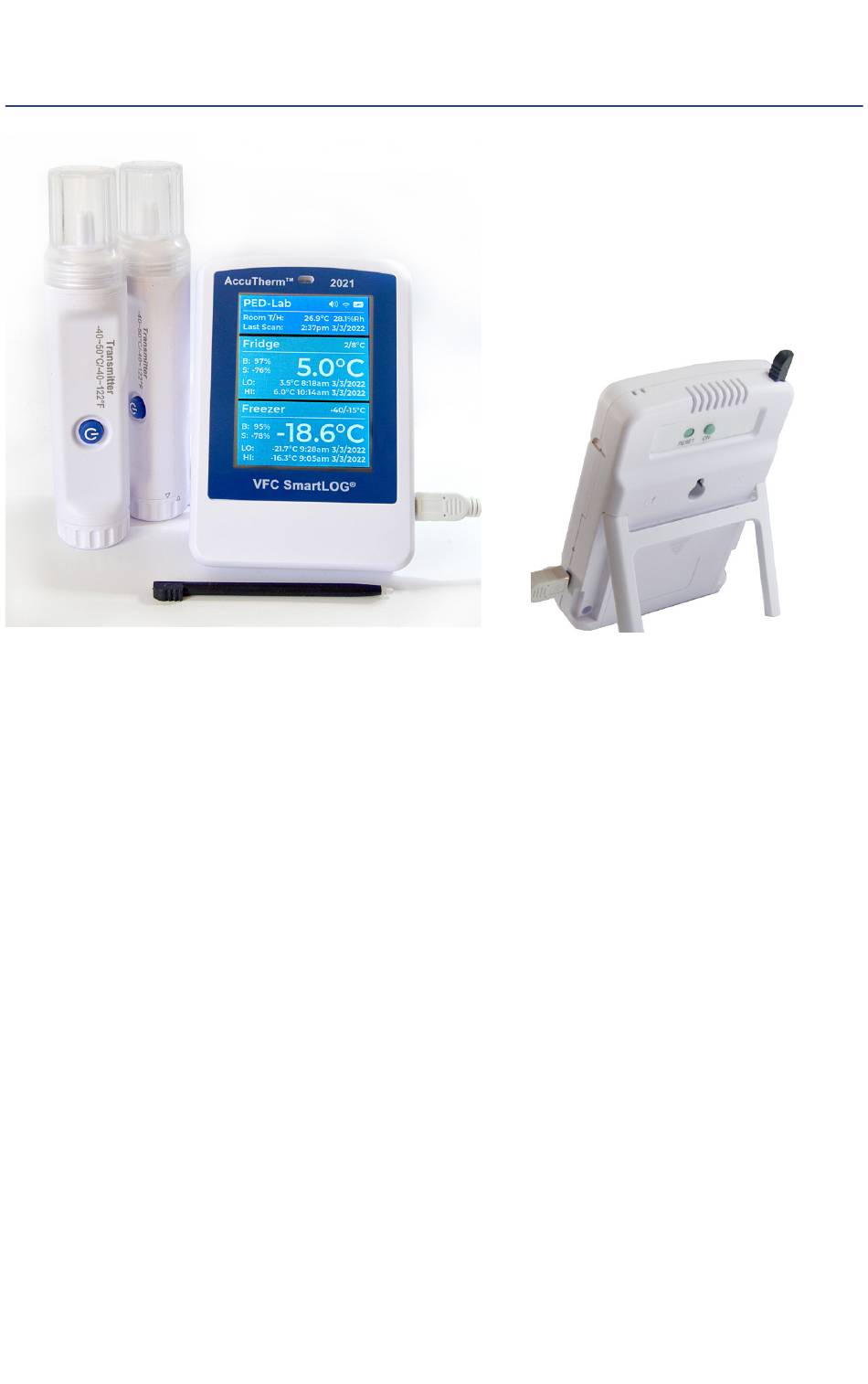

SmartLOG DDL Red Alarm LED USB Power LED Green 5v Mirco USB Port Factory Reset Button Deletes All Settings Power On Button Wall Mount Keyhole Kick Out Desk Stand Battery Compartment MAIN SCREEN DDL Tile Logger Name Ambient Room Temperature Humidity Time And Date Of Last Scan Buzzer, Wi-Fi Strength, Battery Level Icons P1 Tile... -
Page 4: Product Overview
PRODUCT OVERVIEW The McKesson refrigerator/freezer thermometer data logger (also referred to as SmartLOG in this document) is a Wi-Fi digital data logger (DDL) that monitors and records temperature and sensor battery status for up to two wireless sensors. It also logs the ambient room temperature/humidity and backup battery voltage. The DDL scans for the wireless sensor in 1 minute intervals retrieving temperature, battery and signal data. -
Page 5: Status Page
SMARTLOG DASHBOARD HOME PAGE Navigation Icons Logger Name, Alarm Spk, Wi-Fi, Pwr icons Tap Spk to mute Alarm Buzzer on DDL Sensor(s) Name Temperature Gauge relative to Min/Max set points Current temperature Min/Max settings values Lowest and Highest recorded Temperature, Date and Time Sensor Battery power remaining Signal strength STATUS PAGE... - Page 6 SETTINGS PAGE ACCESS POP-UP Pin: 5 digit number If created during initial setup enter Pin number, otherwise, leave blank and click Open. SETTINGS PAGE Wi-Fi Setting These fields are populated from the initial SmartLOG SETUP. To change network: Network Name: SSID (Service Set Identifier) is the name of your wireless network Password: network password.
-
Page 7: Logging Off
DDL OPTIONS SCREEN: Tapping “Main” screen anywhere opens the “Options” screen. fig. 8 Tap X to close options screen if no change needed. LOGGING BUTTON: When set to OFF, data recording will stop and alerts will be disable from being sent NOTE: Alerts are sent every hour until alarm condition clears, or if logging is off. - Page 8 TEST MESSAGE BUTTON: Will send an email and/or SMS to recipients in contact list. Received message links will open Dashboard in a browser. Tap TEST MESSAGE button. Tap YES in Confirm pop-up window will send a Test Email and SMS message then return to main screen. If you tap NO, the pop-up will close and you will be sent back to main screen automatically.
-
Page 9: Troubleshooting Guide
TURN OFF BUTTON: Powers off SmartLOG. Tap TURN OFF button. Tap YES in confirm pop-up window to power off. Wait for button to transition as email/SMS alerts are being sent out. Confirm pop-up window “Powering Off In 5 Seconds”. TROUBLESHOOTING GUIDE Logger not powering on Check 5v adapter, USB cable, batteries Not receiving wireless temperatures... - Page 10 NOTE: Microsoft 365, Office 365, GoDaddy Office 365 and Gmail require additional settings in order to send emails and SMS alerts from the SmartLOG DDL. Some of these setting require administrative rights to the email account to allow SMTP, and be able to generate an APP PASSWORD that is used in place of your standard password. We recommend using your standard email credentials as a starting point, SEND a Test Message and if you don’t receive the Test Message then you might need to generate an APP PASSWORD and test again.
-
Page 11: Specifications
KIT CONSIST OF: • 1 x Digital Data Logger • 1 x Wireless Transmitter • 1 x 5V 1A Power Adapter • 1 x USB Cable • 2 x AAA (for transmitter) • 3 x AA (for DDL) • 1 x Plastic Touch Screen Stylus SPECIFICATIONS SMARTLOG®... - Page 12 Warranty With respect to the goods, unless expressly agreed otherwise in writing, Thermco Products, Inc. provides warranty for material and manufacturing defects for a period of one (1) year from date of purchase. During said period, Thermco Products, Inc. offers to provide physical examination of goods, provide repair of goods and/or components, or replace defective goods.
Need help?
Do you have a question about the SmartLOG ACCSL2021 and is the answer not in the manual?
Questions and answers
I **** not able to find SmartLOG on in the browser
You can access the AccuTherm SmartLOG ACCSL2021 using a web browser by entering “SmartLOG/” or the IP address displayed on the Digital Data Logger (DDL) in the address bar. If needed, you can change the hostname “SmartLOG” in the settings page.
