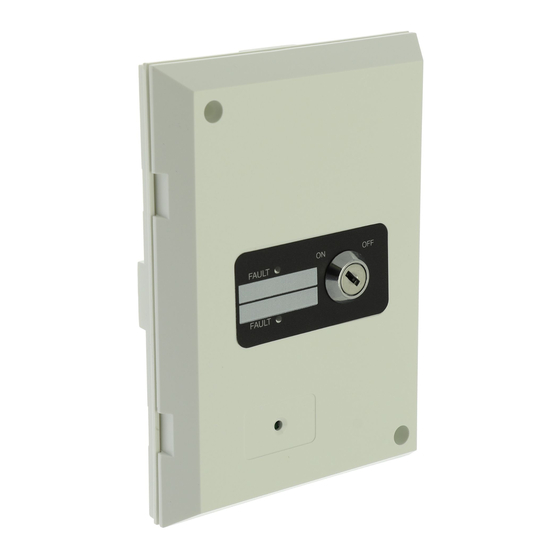

Menvier Zone Omit 5158 2 Series Installation Manual

5158.2 and 5158S.2 Installation Guide
Introduction
The Zone Omit Unit allows either a monitored alarm zone
and tamper zone to be isolated OR two monitored
alarm zones to be isolated, so that they will not generate
an alarm at the control panel if triggered. The omitted
condition will be indicated at the Zone Omit Unit. An
isolated zone can only be switched back to the normal
condition provided it is not in alarm (Safe Set).
Two versions of the Zone Omit Unit are available:
5158.2:
This version is supplied without a keyswitch,
therefore a remote keyswitch must be provided
so that the unit may be controlled. A Shunt Lock
switch may be used as the control switch.
5158S.2:
This version is supplied complete with integral
keyswitch and 2 keys.
Features
The Zone Omit Unit may be set to operate in one of two
modes:
Mode 1:
This mode allows one alarm zone and one
tamper zone to be isolated.
Mode 2:
This mode allows two alarm zones to be isolated
and two tamper zones to be monitored but not
isolated.
The internal piezo sounder may be selected to sound on
Isolate or Fault conditions.
Terminals are provided for the connection of remote
indicator LED's and an extension piezo sounder (Not a
loudspeaker).
Operation
Normal:
The switch is set to the ON position and all LED's are
off. The Zone and Tamper outputs to the control
panel will follow the condition of the connected
alarm and tamper zone inputs. If the alarm zone
is activated the alarm relay will open and the
condition will be indicated to the control panel. If
the tamper zone is activated the tamper relay will
open and the condition will be indicated to the
Control Panel.
496531 Issue A
Isolated:
The switch is set to the OFF position, this will be
indicated by the green LED illuminating. If MODE 1
is selected the alarm zone [ALM A] and tamper
zone [TMP A] are isolated from the Control Panel. If
MODE 2 is selected the alarm zone A [ALM A] and
alarm zone B [ALM B] are isolated.
Return to
Normal:
The unit can only be switched back to normal
(ON) when the monitored zones are healthy. If a
fault is present when turning the keyswitch to the
ON position the internal sounder will operate and
the appropriate Red Fault LED illuminates. If the
switch is left in the ON position the Red Fault LED
will extinguish when the fault is cleared, but the
sounder remain on. Once the fault has been
cleared, turning the switch to the OFF position and
back to the ON position will reinstate the isolated
zone(s).
Specifications
Supply Voltage:
Supply Current:
Dimensions:
Control Switch: ON -
OFF -
Complies with the requirements of BS4737: Part 1: 1986
1 of 4
5158.2 & 5158S.2
9 to 14V dc
30mA to 33mA
5158.2 -
127W x 182H x 32D mm
5158S.2 -
127W x 182H x 37D mm
Zones Active
Zones Isolated
5158.2 & 5158S.2
