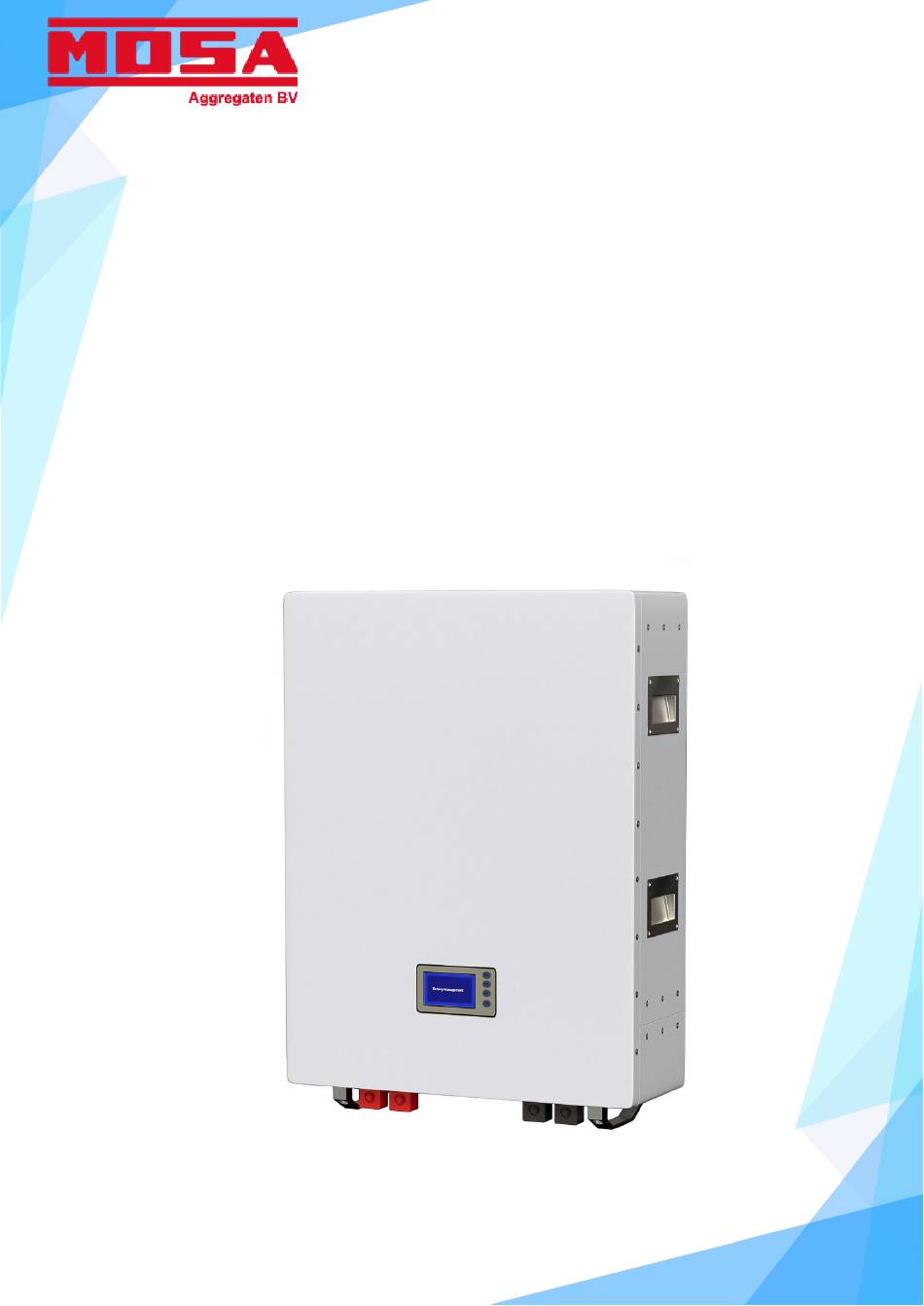

- Page 1 LITHIUM-ION BATTERY PRODUCT USER MANUAL DS-48200-P01...
- Page 2 EVISION ECORDS Revision Author Revision Of Content Revision Time V1.0 First Release 06-10-2022 - 1 -...
-
Page 3: Table Of Contents
▶C OTENT XPLANATION DS-48200-P01 series is Lithium-ion phosphate battery module which designed for residential energy storage applications. This battery module integrated with intelligent BMS inside, support communicate with ON/OFF grid solar power inverter, has big advantages on safety, cycle life, energy density, temperature range and environmental protection. -
Page 4: Safety Cautions
AFETY AUTIONS AFETY YMBOLS Symbol Definition Important safety information will follow. DO NOT dispose of battery in a fire. Recycle or dispose of Lithium batteries in accordance with local Laws/regulations. DO NOT dispose of battery in the trash. RECATIONS Please read and comply with the following conditions of installation and use of the battery, incorrect installation using the battery may cause personal injury or damage to the product. - Page 5 avoid battery short circuit. 5. DO NOT using batteries from different manufacturers or different kinds, types together ,and do not mixed use old batteries and new batteries. 6. DO NOT use the battery when it becomes hot, bulges, deforms or leaks. 7.
-
Page 6: General Information
ENERAL NFORMATION Model/Parameters DS-48200-P01 Basic Normal Voltage [V] Normal Capacity [Ah] Operating Voltage [V] 37.5-54.75 Rated energy [kWh] 9600 Battery Type Li-ion（LiFePO4） Ah Efficiency [%] Wh Efficiency [%] Standard Power [kW] Recommended Charging current [A] Maximum Discharging current [A] Dimension & Weight... -
Page 7: Panel Features
ANEL EATURES Name Function Remarks Handle For carrying，handling ON/OFF Button Switch on/off the BMS Assign address of every model See Table 3.4 CAN Communication interface RESET Power on for the first time Activate BMS Battery Comm Battery inter-comm when connect in parallel RS485 Terminals Positive... - Page 8 ID Arrangement ID arrangement should be set when parallel use and steps shows below. Maximum parallel of DS-48100/48200 is 16. Code Address Assign Remarks Model 1 Model 2 Model 3 Model 4 Model 5 Model 6 Model 7 Model 8 Model 9 Model 10 Model 11...
- Page 9 Communication ports CAN and RS485 are used for communication with inverter. Battery comm used for battery in parallel ID arrangement. CAN Communication interface definition Pin-No. Definition Pin-No. Definition PIN-1 PIN-5 CAN CAN_L PIN-2 PIN-6 PIN-3 PIN-7 PIN-4 CAN CAN_H PIN-8 CAN_H CAN_L RS485 Communication interface definition...
- Page 10 ACKING Parts List Item Item name DS-48200-P01 battery module Explosion screw, M10*90 Power cable between battery and Inverter (MPC 100A 600V-16mm²_1m) Communication cable_1.5m User manual Carton - 9 -...
- Page 11 NSTALLATION Prepare to Install The installation, operation and maintenance of DS-48200-P01 lithium-ion phosphate battery system must be performed by trained and qualified professional personnel. Before installation and use, please carefully read the product safety precautions and related operating rules. Strictly abide by the following safety rules and local safety regulations, otherwise may cause personal injury or damage to the product.
-
Page 12: Installation
Tools and materials May use the tools and information are shown in table. Name Name User manual Oblique mouth clamp Screw driver Multimeter Wrench Ammeter Pincers Insulating tape Wire stripping pliers Electrostatic prevention Bracelet Wristband Battery check 1. On the installation site, check the battery packaging to make sure it's intact; 2. - Page 13 3. Project layout. Ensure the whole construction process of power equipment, batteries and other reasonable layout. 4. Wiring layout. Ensure that the wiring reasonable, orderly; and consider the moisture-proof, corrosion prevention. 5. The whole installation process should wear anti-static wristband. 6.
-
Page 14: Shipping, Storage, And Disposal
Step3. Align the battery groove with the hook and lower it slowly to complete the installation Step4. Connection Terminals and Interfaces Overview. 1. Connect to Inverter with power cable and communication cable. 2. More than one battery module to parallel, Set the ID following the ID arrangement table. - Page 15 Storage Storage device in the indoor storage, the ambient air temperature is 0 ℃ to + 45℃, the average monthly relative humidity of not more than 90%, the ambient air without corrosive and flammable and explosive gas; storage warehouse should be ventilated, free of alkaline, acidic substances and other corrosive gases, without a strong mechanical vibration, shock, and without strong electromagnetic field and direct sunlight.
