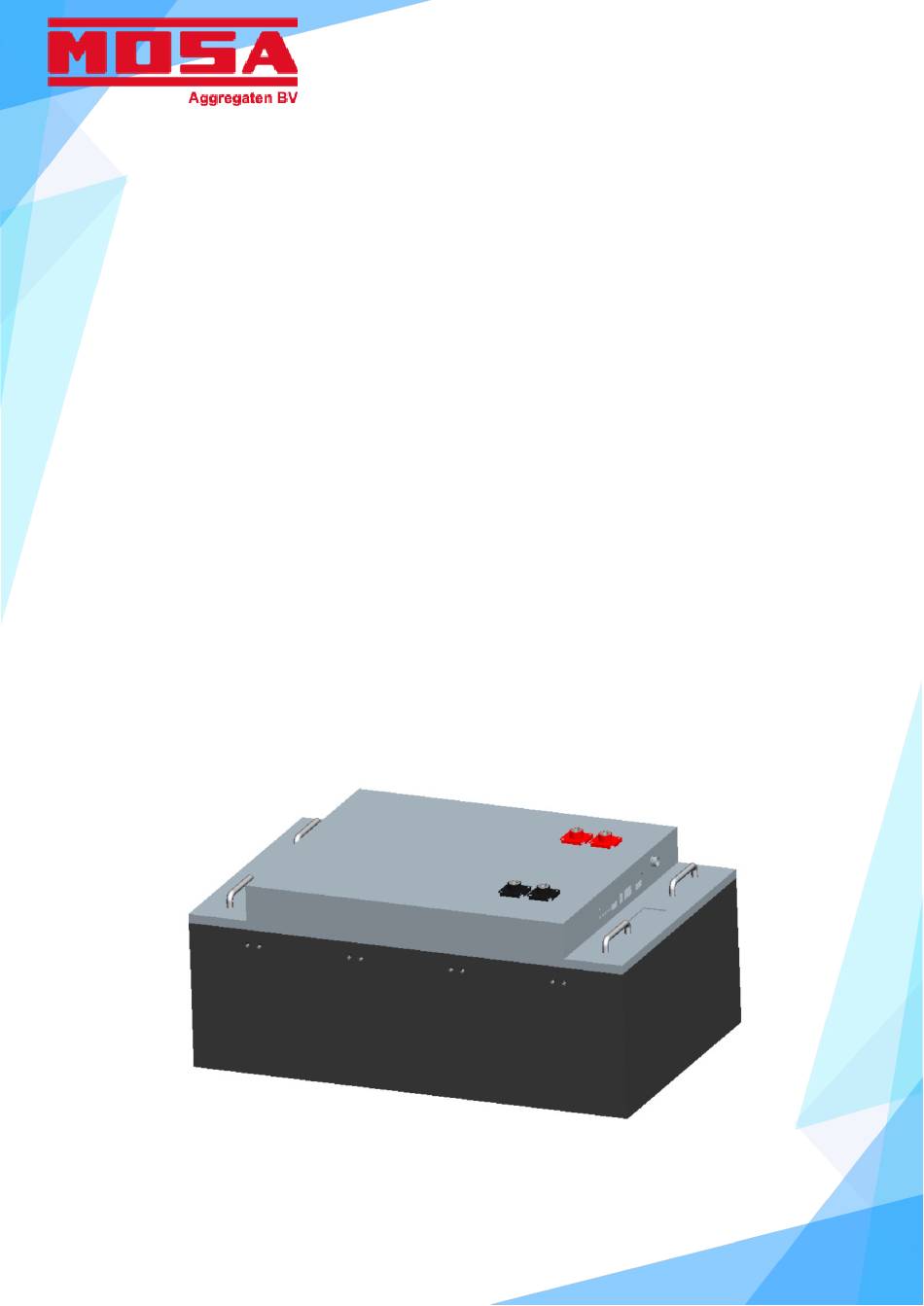

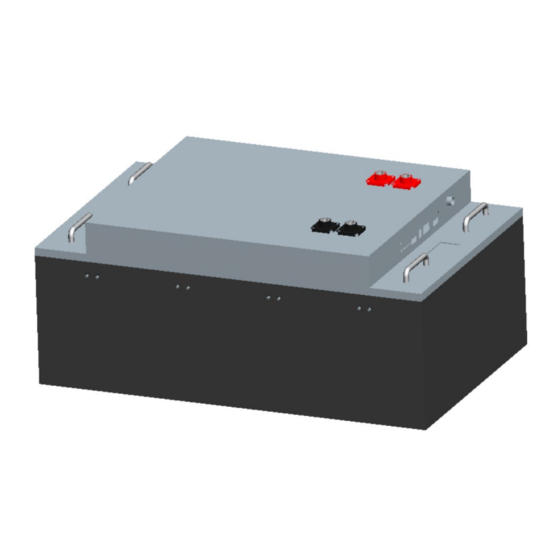

- Page 1 LITHIUM-ION BATTERY PRODUCT USER MANUAL DS-512400/DS-512460 INDUSTRIAL...
- Page 2 EVISION ECORDS Revision Author Revision Of Content Revision Time V1.0 First Release 07-24-2022 - 1 -...
- Page 3 ANUAL XPLANATION ▶C OTENT XPLANATION DS series is Lithium iron phosphate battery module which designed for residential energy storage applications. This battery module integrated with intelligent BMS inside, support communicate with ON/OFF grid solar power inverter, has big advantages on safety, cycle life, energy density, temperature range and environmental protection.
-
Page 4: Safety Cautions
AFETY AUTIONS AFETY YMBOLS Symbol Definition Important safety information will follow. DO NOT dispose of battery in a fire. Recycle or dispose of Lithium batteries in accordance with local Laws/regulations. DO NOT dispose of battery in the trash. RECATIONS Please read and comply with the following conditions of installation and use of the battery, incorrect installation using the battery may cause personal injury or damage to the product. - Page 5 avoid battery short circuit. 5. DO NOT using batteries from different manufacturers or different kinds, types together ,and do not mixed use old batteries and new batteries. 6. DO NOT use the battery when it becomes hot, bulges, deforms or leaks. 7.
- Page 6 ENERAL NFORMATION Model/Parameters LS-512400 LS-512460 Basic Normal Voltage [V] 51.2 51.2 Normal Capacity [Ah] Operating Voltage [V] 40~58.4 40~58.4 Rated energy [kWh] 20.4 23.5 Battery Type Li-on（LiFePO4） Li-on（LiFePO4） Ah Efficiency [%] 99.5 99.5 Wh Efficiency [%] Standard Power [kW] Recommended Charging current [A] Maximum Discharging current [A] Dimension &...
-
Page 7: Panel Features
ANEL EATURES Name Function Remarks Handle For carrying，handling ON/OFF Button Switch on/off the BMS Assign address of every model See Table 3.4 CAN Communication interface RESET Battery Comm Battery inter-comm when connect in parallel RS485 Terminals Positive Terminals Negative Alarming indicates LED 4 pcs green LED Operating indicates LED The state of charge... -
Page 8: Communication Ports
Communication ports CAN and RS485 are used for communication with inverter. Battery comm used for battery in parallel ID arrangement. CAN Communication interface definition Pin-No. Definition Pin-No. Definition PIN-1 PIN-5 CAN CAN_L PIN-2 PIN-6 PIN-3 PIN-7 PIN-4 CAN CAN_H PIN-8 CAN_H CAN_L RS485 Communication interface definition... - Page 9 ACKING Parts List Item Item name DS-51200-R01 battery module Power cable between battery and Inverter (MPC 400A 600V-75mm²_1m) Communication cable_1m User manual Carton - 8 -...
-
Page 10: Prepare To Install
NSTALLATION Prepare to Install The installation, operation and maintenance of DS-512400/DS-512460 lithium-ion phosphate battery system must be performed by trained and qualified professional personnel. Before installation and use, please carefully read the product safety precautions and related operating rules. Strictly abide by the following safety rules and local safety regulations, otherwise may cause personal injury or damage to the product. -
Page 11: Tools And Materials
Tools and materials May use the tools and information are shown in table. Name Name User manual Oblique mouth clamp Screw driver Multimeter Wrench Ammeter Pincers Insulating tape Wire stripping pliers Electrostatic prevention Bracelet Wristband Percussion drill Battery check 1. On the installation site, check the battery packaging to make sure it's intact; 2. - Page 12 3. Project layout. Ensure the whole construction process of power equipment, batteries and other reasonable layout. 4. Wiring layout. Ensure that the wiring reasonable, orderly; and consider the moisture-proof, corrosion prevention. 5. The whole installation process should wear anti-static wristband. 6.
-
Page 13: Storage And Disposal
HIPPING, TORAGE, ISPOSAL Shipping According to the provisions of the product can be used in general means of conveyance, but should avoid throwing, rainfall, strong radiation and corrosion erosion. during transportation, please prevent the collision and strong vibration. Storage Storage device in the indoor storage, the ambient air temperature is 0 ℃ to + 45℃, the average monthly relative humidity of not more than 90%, the ambient air without corrosive and flammable and explosive gas;...
