Keypad; Led Indication - LEVELFIX 860H User Manual

EN
TILT
Blinking green: Instrument is leveling
Green continuous: Level and rotate
1.
Blinking red: Low battery voltage
Red continuous: Battery needs charging
Green continuous: Tilt mode on (axis monitoring)
2. TILT
Green flash (+ batt. led red + man. led red): Tilt alarm
3.
Red continuous: Manual mode
Green continuous: Grade X-axis
X
4.
Red continuous: Grade Y-axis
Y
12

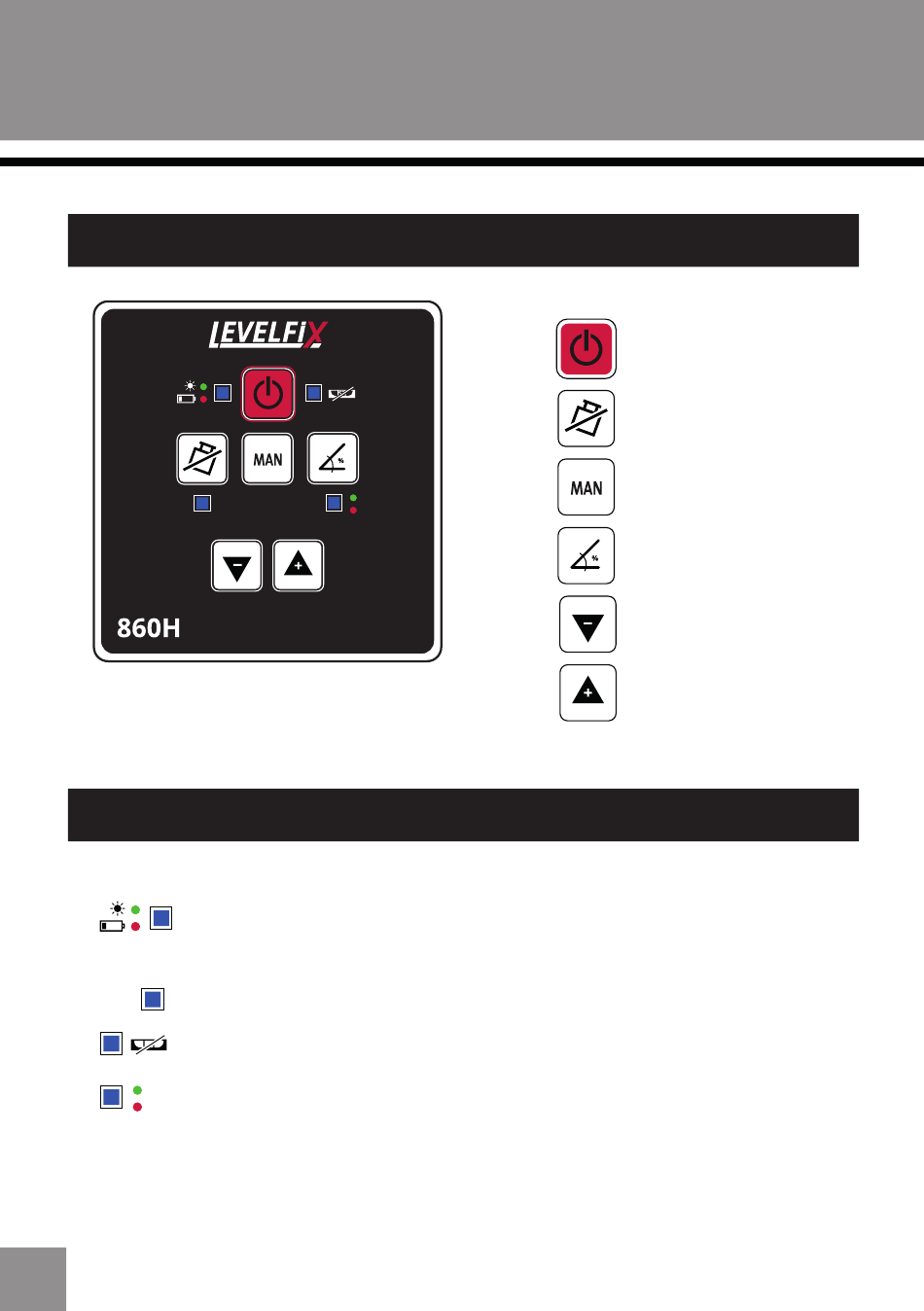

KEYPAD

X
Y

LED INDICATION

1. On / Off
2. Tilt mode Off / On
3. Manual mode
4. Grade (x / y)
5. Minus grade
6. Plus grade
