Electrolux ACC072 Assembly Instructions

ASSEMBly InSTRUCTIonS
BARRIER SHIEld
Barrier shield ACC072 is an optional accessory
which can be used to shield the underside of the
wok burner when the product is installed such that
the bottom of the product can be accessed and
accidentaly touched.
Refer to the User Manual, page 18, for further
instructions.
Pack contents:
1 x Barrier shield (305-5882-00)
3 x Fixing screws (305-3097-02)
1 x Instruction leaflet (305-6297-00)

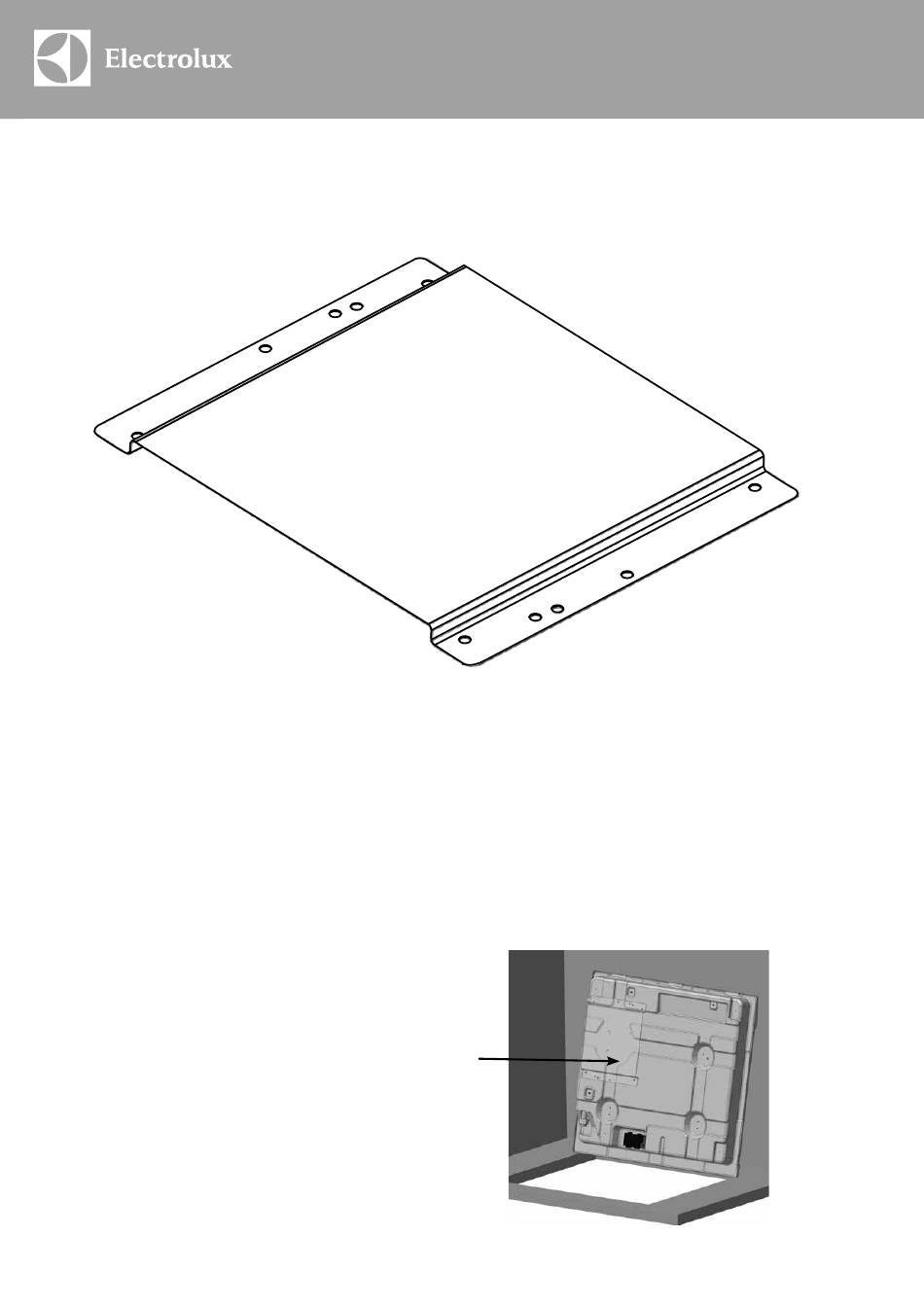

The barrier shield is attached
to the underside of the product
directly in line with the large
wok burner.
This image is for the
EHG645SA model. Refer
to the following pages for
the position of the shield
placement for other models.
Assembly InstructIons
bArrIer shIeld P/no. Acc072
When attaching the barrier shield it is
recommended to have another person hold the
product on its side so that you can access the
bottom of the product without needing to turn
the product upside down.
To prevent damage to the product ensure all
loose components are removed before turning
the product on it's side.
The barrier shield can then be screwed into the
base of the product using the holes indicated in
the following diagrams.
