Summary of Contents for Granit 37270793

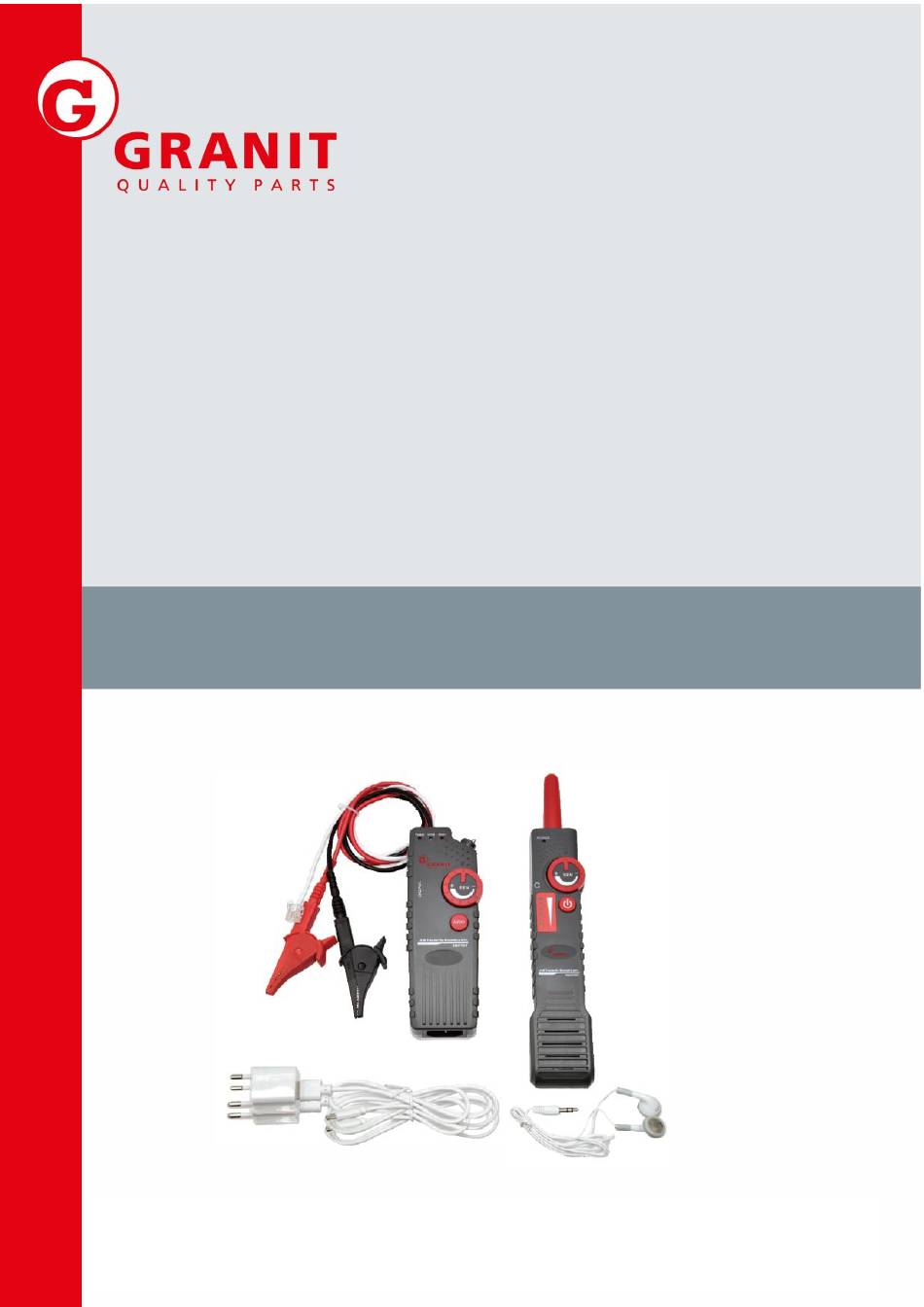

- Page 1 Operating Instructions for Cable Tracker 37270793 Operating Instructions Cable tracker 37270793 These operating instructions must be read thoroughly before use and followed. These Operating Instructions must be retained for future reference. Translation of the original operating instructions...
-
Page 2: Table Of Contents
Operating Instructions for Cable Tracker 37270793 Table of contents General safety instructions ................... 3 Instruction manual ....................4 Overview ......................4 Introduction ......................5 Features and specifications ................5 Main application .................... 5 Product interface and keypad functions ..............5 Transmitter interface instruction .............. -
Page 3: General Safety Instructions
Operating Instructions for Cable Tracker 37270793 General safety instructions Please read safety instructions before using or maintaining the equipment • Never put the equipment under strong sunshine. • Never put the equipment in the place with much dust, humidity and high temperature (over 40℃) -
Page 4: Instruction Manual
Operating Instructions for Cable Tracker 37270793 Instruction manual Note: You can use a 10-meter cable beforehand to test the signal and learn how the tracker works. Adjust the signal strength on both the Go 1-2 meters along „Receiver“ and the the boundary wire „Transmitter“... -
Page 5: Introduction
Operating Instructions for Cable Tracker 37270793 Introduction Cable Trackers are mainly used to detect cable location in underground, inside-wall, ceiling or other invisible cable. Cable Tracker is for both live cable and de-energized cable (≤400V). Features and specifications Detects cable location in underground or other invisible cable, the range is 0-2m. -
Page 6: Transmitter Interface Instruction
Operating Instructions for Cable Tracker 37270793 Transmitter interface instruction 1. Function switch to shift between “Scan cable” and “Polarity testing” 2. Sensitivity adjust signal strength 3. Power button Long press to turn on or turn off the transmitter. 4. Charging port to charge for transmitter when connect with Micro USB cable. -
Page 7: Usage Method For Receiver
Operating Instructions for Cable Tracker 37270793 Black alligator Red alligator clip clip to connect to connect color shielded or white ground Take the amplifier probe to the other side to detect the target cable which will send out the loudest voice, if you can't identify the target cable , you can adjust the sensitivity constantly for the amplifier probe. -
Page 8: Low Battery Indicate
Operating Instructions for Cable Tracker 37270793 Low battery indicate When the emitter's battery is lower than 3.5 V, the power indicator will flash, which indicates user to charge. When lower than 3.4 V, the power indicator will flash more rapidly and the device will switch off automatically. -
Page 9: Fault Rectification
Operating Instructions for Cable Tracker 37270793 10 Fault rectification Fault Possible reasons Maintenance method 1. LED power light broken 1. Check other functions Start up, power LED not 2. Battery voltage low 2. Connect power charger bright 3. PCB problem for the... -
Page 10: Ec Declaration Of Conformity
Operating Instructions for Cable Tracker 37270793 11 EC declaration of conformity The manufacturer, Wilhelm Fricke SE Zum Kreuzkamp 7 DE-27404 Heeslingen hereby declares on its sole responsibility that the cable tracker Type/series identification: 37270793 is in conformity with the provisions of... -
Page 11: Warranty
Operating Instructions for Cable Tracker 37270793 12 Warranty The warranty terms of Wilhelm Fricke SE, as can be found in the sales documents and the current version of the Terms and Conditions, apply. In case of questions, please contact the company's customer service line.
