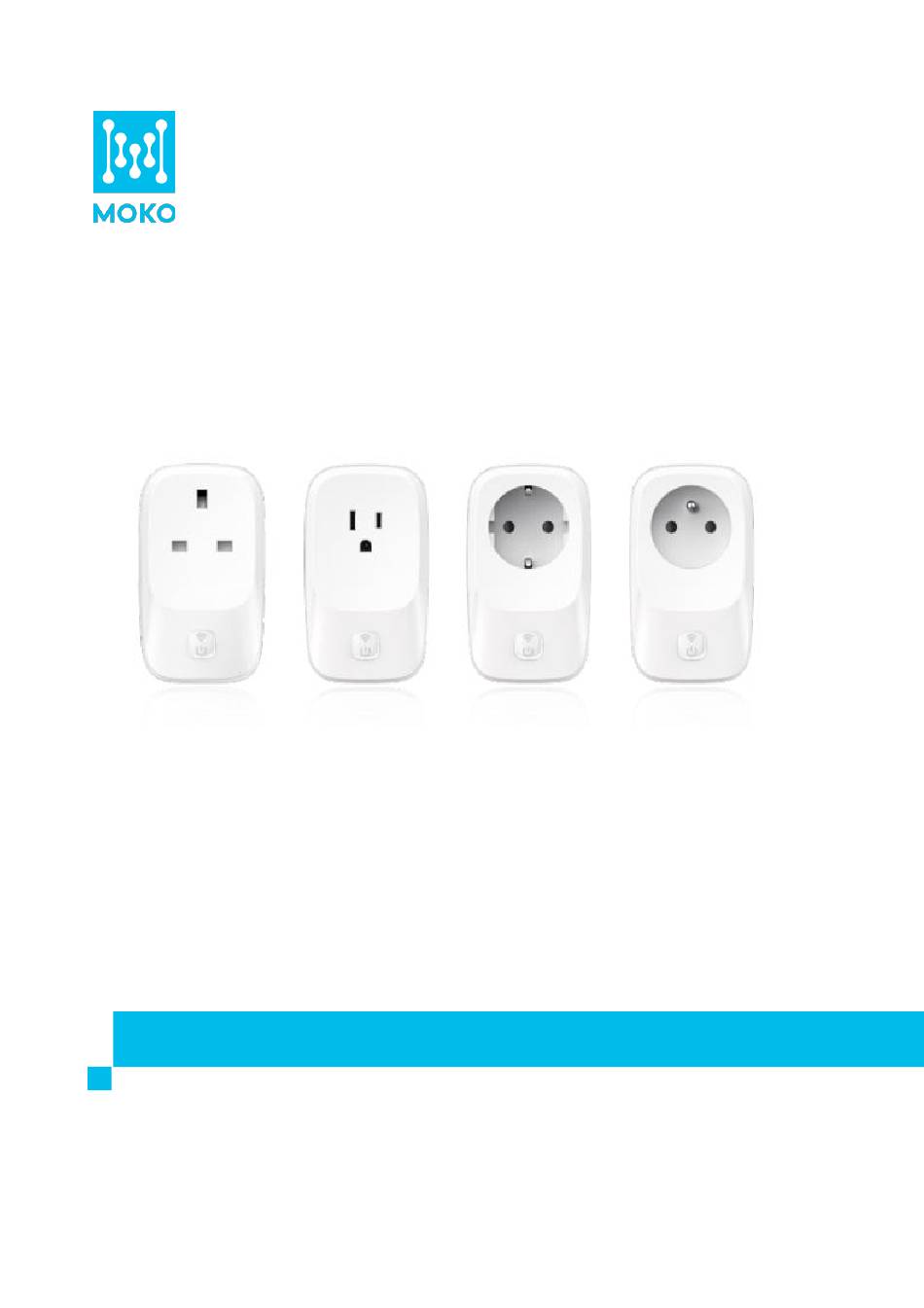

- Page 1 Datasheet LW005-MP Product Specification Version 1.0 MOKO TECHNOLOGY LTD. Version 1.0 www.mokosmart.com...
-
Page 2: Table Of Contents
CONTENT 1 Introduction ............................3 1.1 Overview ..........................3 1.2 Model List ..........................3 2 Features ............................. 4 3 Application Scenarios ........................4 4 Product Appearance ......................... 6 4.1 Appearance ..........................6 4.2 Dimensions ..........................6 4.3 LED Patterns ........................... 6 5 Product Specifications ........................ -
Page 3: Introduction
1 Introduction 1.1 Overview LW005-MP is a LoRaWAN smart plug with power and energy monitoring, the measuring accuracy can reach ±0.5%. The plug can connect to your server through LoRaWAN gateway and LoRaWAN network, so as to realize smart control, power and energy monitoring and other functions. -
Page 4: Features
3 Application Scenarios Scenario 1: Intelligent industrial control LW005-MP can be used for electrical energy monitoring and remote control of some key industrial equipment. It can report the electrical parameters (voltage, current, power) and total electrical energy data during the operation of the equipment. Data analysis can be generated on the server, so that users can find abnormal power consumption and abnormal working equipment in time to ensure power safety and optimize power distribution. - Page 5 LW005-MP through the APP/server, and view the power consumption data at any time. When you leave home and forget to turn off an electrical appliance, you can use the APP to remotely turn it off, which can help you minimize the electricity risk and save electricity bills.
-
Page 6: Product Appearance

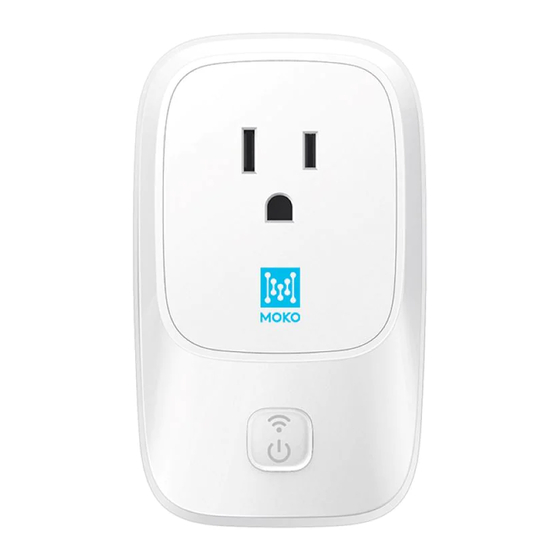

LW005-MP 4 Product Appearance 4.1 Appearance Note: the environment and orientation of the device can influence the radio performance. For optimum results keep the zone around the antenna area clear from any conducting material or magnetic fields. 4.2 Dimensions 4.3 LED Patterns... -
Page 7: Product Specifications
LW005-MP The device is connecting to network server Flash blue once per second Start network check each time Flash green one second each time The color depends on the active Switch ON Switch power consumed by the load Indicator Switch OFF... -
Page 8: Main Functions
CE FCC certification in process 6 Main Functions 6.1 LoRaWAN Capabilities The uplink payloads of LW005-MP will be transmitted via LoRa and LW005-MP is based on the standard LoRaWAN protocol V1.0.3. LW005-MP is compatible with mainstream gateways and mainstream servers (TTN, SENET, LORA IOT, etc.) in the market. -
Page 9: Connect To Lorawan Network Server
Payload. 6.4 Timer Control After LW005-MP is successfully connected to the LoRaWAN network server, user can set a timer to LW005-MP through the MKLoRa APP/LoRaWAN downlink command. When the timer is complete, the plug will automatically change the switch state. During the timer... -
Page 10: Energy Monitoring
LW005-MP LW005-MP will report Electrical Payload periodically, which contains voltage, current, frequency, active power and power factor. 6.6 Energy Monitoring The plug can record daily /historical total energy data locally, and the measuring accuracy can reach ±0.5%. LW005-MP will report... -
Page 11: Default Power Status
➢ OFF: Configure the AC output to off, after LW005-MP is re-powered. ➢ ON: Configure the AC output to on, after LW005-MP is re-powered. ➢ Restore last mode: Configure the AC output to return to last state it was, after LW005-MP is re-powered. -
Page 12: Uplink Payload
LW005-MP ⚫ Power factor: 55% ⚫ Frequency: 49.988HZ (0x C3 ⚫ Total energy: 3688.9 KW· H (0x 00 B4 1F ⚫ Device status:0x C2 ➢ Bit7 (1 means that the AC output is ON; 0 means that the AC output is OFF) ➢... -
Page 13: Energy Payload
LW005-MP ➢ Instantaneous frequency: Convert to decimal, then then divide by 1000, the unit is HZ. The 2 part will be sent in Port 7: Byte 0~3 Byte 4 Byte 5~8 Byte 9 Timestamp Time zone Instantaneous active power Power factor ➢... -
Page 14: Over-Current Payload
LW005-MP Sag-voltage payload will be sent in Port 10. Byte 0~3 Byte 4 Byte 5 Byte 6~7 Byte 8~9 Timestamp Time zone Sag-voltage state Currents instantaneous Sag-voltage threshold voltage ➢ Timestamp: Standard UTC time. ➢ Time zone: It is a signed number, convert to decimal, then then divide by 2, and this is UTC time zone;... -
Page 15: Countdown Payload
LW005-MP Load state payload will be sent in Port 13. Byte 0~3 Byte 4 Byte 5 Timestamp Time zone Change of load state ➢ Timestamp: Standard UTC time. ➢ Time zone: It is a signed number, convert to decimal, then then divide by 2, and this is UTC time zone;... -
Page 16: Maintenance Instruction
LW005-MP 8 Maintenance instruction ·Do not use or store the device in dusty or dirty areas. ·Do not use or store the device in extremely hot temperatures. High temperatures may damage the device or battery. ·Do not use or store the device in extremely cold temperatures .when the device warms to its normal temperature, moisture can form inside the device and damage the device or battery. - Page 17 LW005-MP MOKO TECHNOLOGY LTD. 4F,Buidling2, Guanghui Technology Park, MinQing Rd, Longhua, Shenzhen, Guangdong, China Tel:86-755-23573370-829 Support_lora@mokotechnology.com https://www.mokosmart.com...
