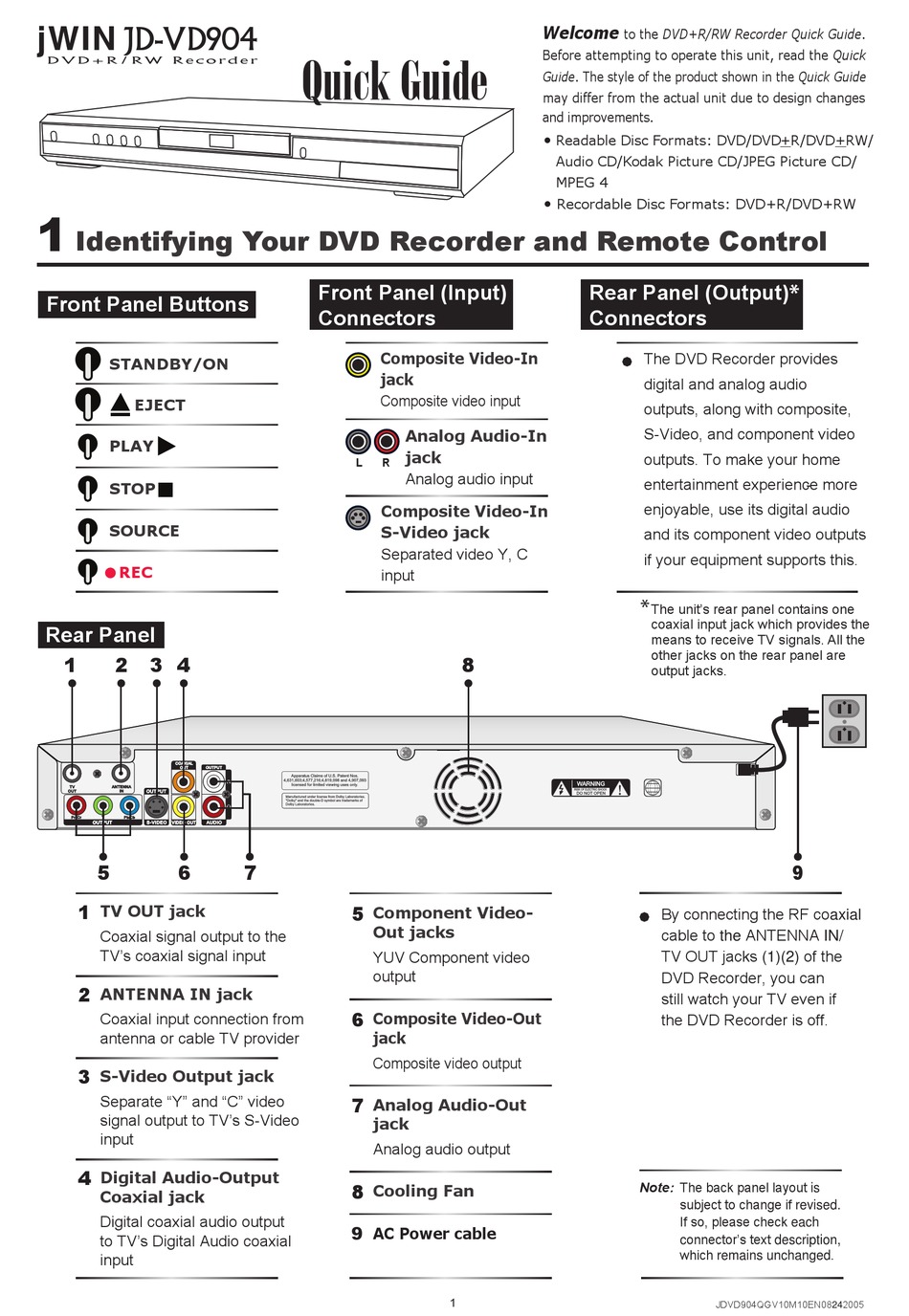

jWIN JD-VD904 Quick Manual

JD-VD904
1
Identifying Your DVD Recorder and Remote Control
Front Panel Buttons
STANDBY/ON
EJECT
PLAY
STOP
SOURCE
REC
Rear Panel
1 2 3 4
60-178-C0201 XA
5 6
1
TV OUT jack
Coaxial signal output to the
TV's coaxial signal input
2
ANTENNA IN jack
Coaxial input connection from
antenna or cable TV provider
3
S-Video Output jack
Separate "Y" and "C" video
signal output to TV's S-Video
input
4
Digital Audio-Output
Coaxial jack
Digital coaxial audio output
to TV's Digital Audio coaxial
input
Front Panel (Input)
Connectors
Composite Video-In
jack
Composite video input
Analog Audio-In
jack
L R
Analog audio input
Composite Video-In
S-Video jack
Separated video Y, C
input
7
5

Component Video-

Out jacks
YUV Component video
output
6
Composite Video-Out
jack
Composite video output
7
Analog Audio-Out
jack
Analog audio output
8
Cooling Fan
9
AC Power cable
Welcome
Before attempting to operate this unit, read the Quick
Guide. The style of the product shown in the Quick Guide
may differ from the actual unit due to design changes
and improvements.
Readable Disc Formats: DVD/DVD+R/DVD+RW/

Audio CD/Kodak Picture CD/JPEG Picture CD/
MPEG 4
Recordable Disc Formats: DVD+R/DVD+RW

Rear Panel (Output)
Connectors
8
1
to the DVD+R/RW Recorder Quick Guide.
*
The DVD Recorder provides

digital and analog audio
outputs, along with composite,
S-Video, and component video
outputs. To make your home
entertainment experience more
enjoyable, use its digital audio
and its component video outputs
if your equipment supports this.
*
The unit's rear panel contains one
coaxial input jack which provides the
means to receive TV signals. All the
other jacks on the rear panel are
output jacks.
9
By connecting the RF coaxial

cable to the ANTENNA IN/
TV OUT jacks (1)(2) of the
DVD Recorder, you can
still watch your TV even if
the DVD Recorder is off.
Note: The back panel layout is
subject to change if revised.
If so, please check each
connector's text description,
which remains unchanged.
