MEFA -15 Quick Start Manual

THERMAL PRINTER
MEFA-15
INSTRUCTION MANUAL
FOR THE USER

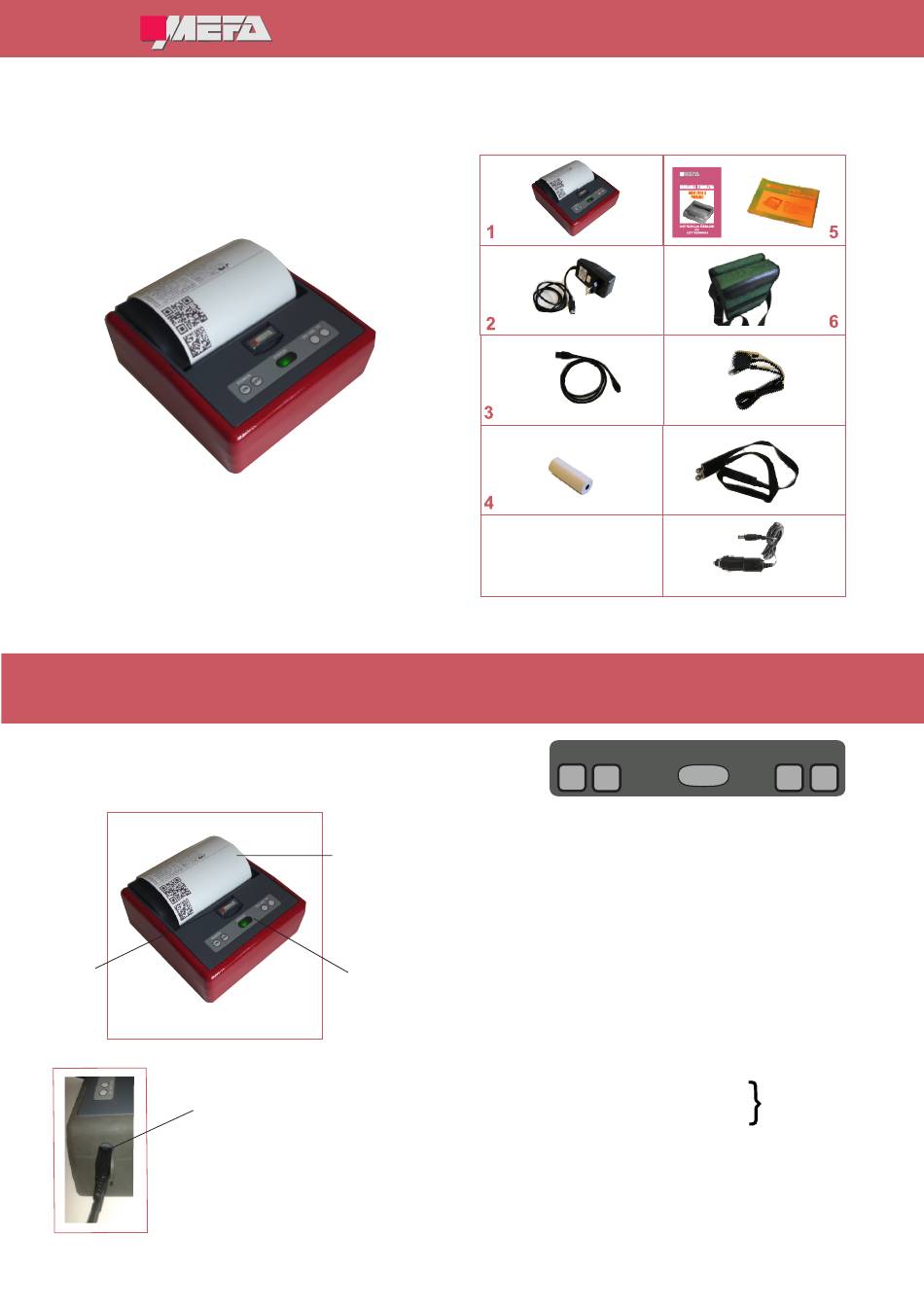

PRINTER ELEMENTS
button for
opening the
paper
container
paper
container
cover
control panel
- battery charging socket
- USB and RS232C
interfaces
COMPLETENESS
1. MEFA-15 Printer
2. 8,4V 1,2A Battery Charger
3. USB cable
0/
4. 2 30 linear meters paper roll
*
extra order N/A
in case of LP
CONTROL PANEL
STATUS SIGNAL
POWER
ON OFF
ON LINE button
Printer reaches the ON LINE status after the following actions
are executed:
a. power supply is switched on
b. printer error is resolved.
Printing the ON LINE button switches the printer into the OFF LINE
mode. The printer is not ready to work with the computer.
FEED button
Once the printer is set in the OFF LINE mode, and the FEED button
is pressed, we may withdraw the paper from the printer.
- single push - printing one line
- continuous push - continuous printing
Multi-colored diode that signalizes the printer status
Color
.
Green ...............RS232C interface active
Blue ...................... Bluetooth interface active
Emerald....... ......... USB interface active
Yellow ................... OFF LINE Statut,
Using the feed button to slide out the paper possible
Red -......................Error, printing impossible - number of blinks in a 4 s cycle
indicates the error type EMERGENCIES
Purple - ................. continuous glow with dulling
- battery charging
Purple .................. short blinks in a 4 seconds cycle
- sleep mode with the interfaces remaining active
Blue ..................... short blinks in an 8 seconds cycle
- sleep mode with the RS remaining active
White/pink.............Memory storage/service mode
5. Operating manual and warranty card
6. Printer bag*
*
7. RS232C cable
8. Printer carrying strap
*
9. Car charger
*
*
7
8
*
9
STATUS
ON LINE FF
Status
ON LINE Status
Printer ready for
operation
