Weaver MASTER TOOL MIGHTY WONDER Quick Start Manual

MASTER TOOL MIGHTY WONDER
8-TON HAND-OPERATED CLICKER
Congratulations on the purchase of your new clicker. Made by
Weaver Leather, this clicker features a swivel-away clicker head
that allows you to see where you're setting the die and offers
easier clicking. This convenient hand-operated clicker features
a 39" handle that gives you extra leverage. A height adjustment
nut makes it simple to adjust the machine for using 3/4" to 1-1/4"
dies. With a large 3" cam for increased leverage, this clicker is
able to handle all kinds of clicking needs including holsters,
tack, shoe soles or anything that requires up to a 24" long die.
For your convenience, only minimal assembly is required.
Do not operate this machine until you have read this
instruction sheet in its entirety and the machine is
securely bolted in place. We recommend that you bolt
the base to a cement floor using a 3/16" concrete bit to
drill a hole and then use a 2" Tapcon
ASSEMBLING THE HAND-OPERATED CLICKER
1) Attach handle by inserting into hole in Cam (C)
and tightening Allen Screw (D).
D
CLICKER SPECIFICATIONS
• 12" x 24" clicking surface
• 12" x 15" swivel head
• 3/4" to 1-1/4" dies
• 24" x 32" floor space
800-932-8371
weaverleathersupply.com
screw.
®
E
F
LIMITED LIFETIME GUARANTEE
HANDCRAFTED IN THE USA

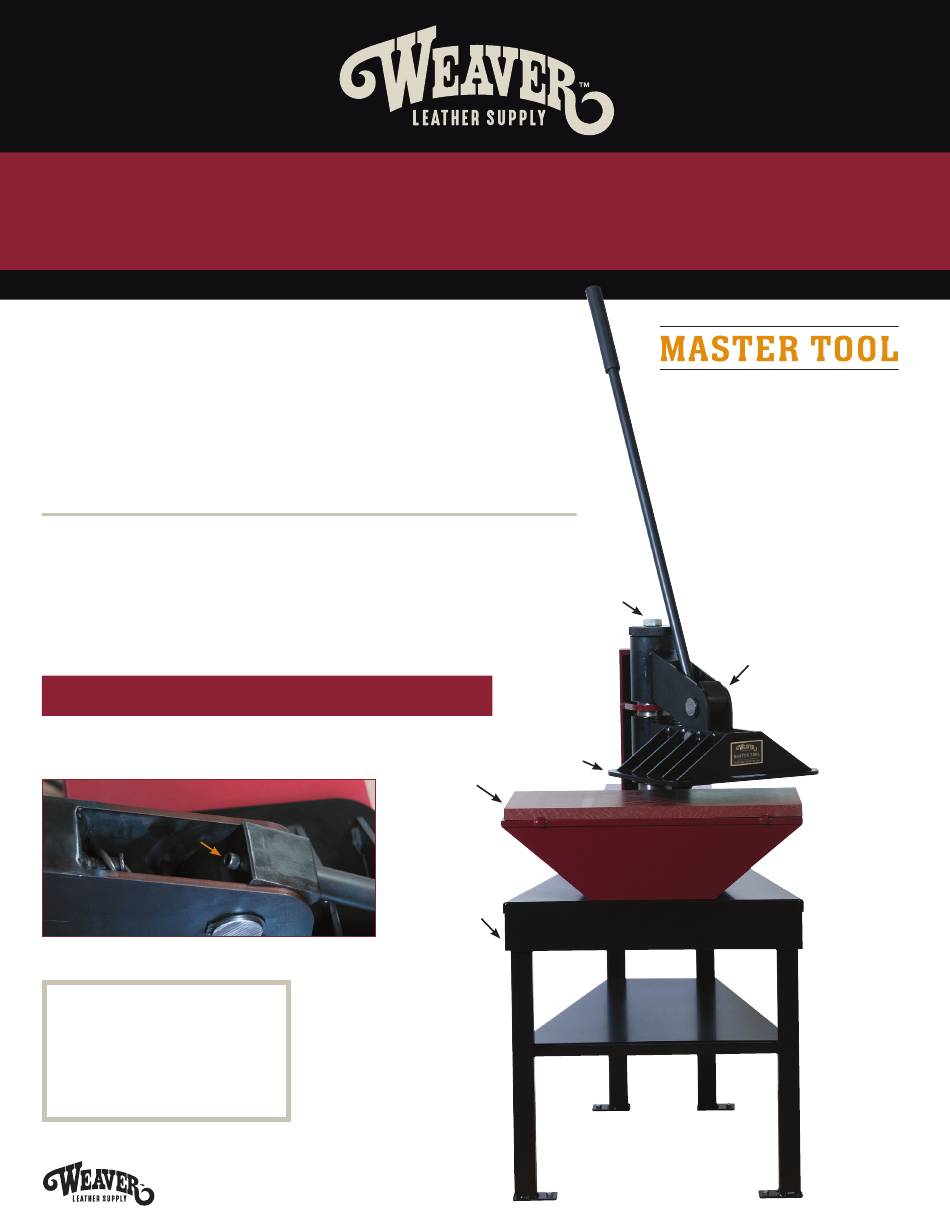

A - Height Adjustment Nut
B - Clicker Head
C - Cam
D - Allen Screw for Handle
(pictured in inset on left)
E - Clicker Board
F - Stand
A
B
C
INSERT-135 4/21
