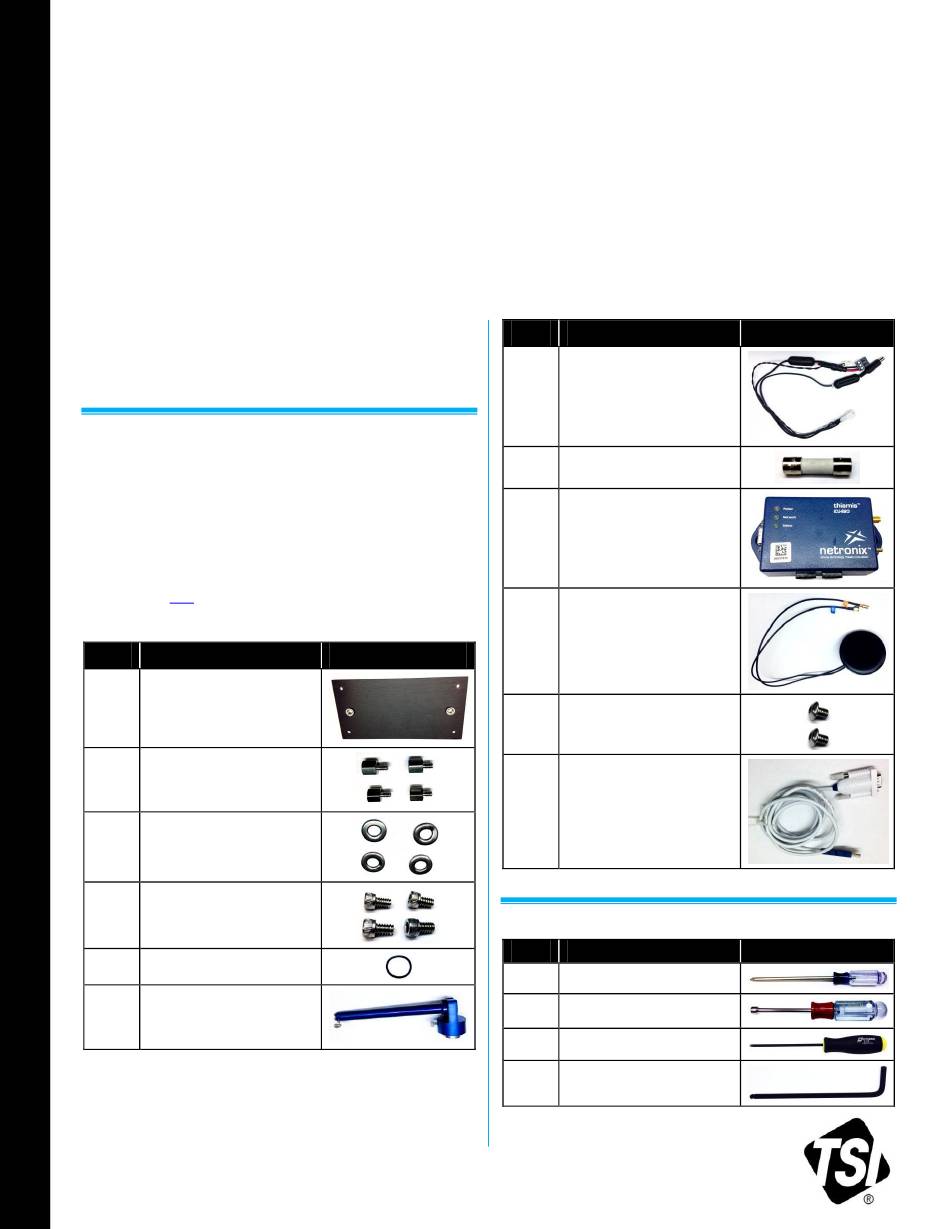

INSTALLING THE NETRONIX™ THIAMIS™
GSM/GPS COMMUNICATION MODEM IN
THE ENVIRONMENTAL ENCLOSURE
This guide will help you quickly install the Netronix™
Thiamis™ GSM/GPS Communication Modem for
Environmental Enclosure Model 8535.
Unpacking Netronix Thiamis
GSM/GPS Communication
Modem (801901)
TM
1. Unpack the Netronix
Communication Modem (801901) for the
Environmental Enclosure (8535) and verify that all
the items listed in the following table are present.
2. Contact
TSI
immediately if items are missing or
broken.
Qty.
Item Description
1
Adapter Plate
4
Hex Standoffs
4
Washers
4-40 x 3/16" socket head
4
screws
1
O-ring
1
Antenna Housing
_______________
TSI and TSI logo are registered trademarks of TSI Incorporated. DustTrak is a trademark of TSI Incorporated.
Netronix and Thiamis are trademarks of Netronix Inc. Digi and XStream are trademarks of Digi International.
TM
Thiamis
GSM/GPS
Reference Picture
QUICK START GUIDE
MODEL 8535
Qty.
Item Description
1
Power Cable
1
Spare Fuse
1
Netronix Thiamis
GSM/GPS
Communication Modem
1
GSM-GPS Antenna
2
Button head hex screws
1
RS232 to USB Converter
Cable
Tools Needed for Installation
Qty.
Item Description
1
Phillips Screw Driver
¼" Nut Driver
1
3/32" Ball Driver
1
1/8" Allen Wrench
1
Reference Picture
Reference Picture
Advertisement
Table of Contents
Related Manuals for TSI Instruments NETRONIX THIAMIS 8535
Summary of Contents for TSI Instruments NETRONIX THIAMIS 8535
- Page 1 QUICK START GUIDE INSTALLING THE NETRONIX™ THIAMIS™ GSM/GPS COMMUNICATION MODEM IN THE ENVIRONMENTAL ENCLOSURE MODEL 8535 This guide will help you quickly install the Netronix™ Qty. Item Description Reference Picture Thiamis™ GSM/GPS Communication Modem for Power Cable Environmental Enclosure Model 8535. Unpacking Netronix Thiamis GSM/GPS Communication Spare Fuse...
- Page 2 Preparation of Environmental Preparation of Environmental Enclosure (8535) if Purchased Enclosure (8535) if Purchased with a Digi XStream-PKG without a Digi XStream-PKG RF Modem RF Modem ® 1. If the Environmental Enclosure was purchased 1. Disconnect cables from Digi XStream-PKG™ without a wireless Digi XStream-PKG RF Modem, RF modem.
- Page 3 5. Remove the slip nut from the GSM-GPS antenna. Installing the Netronix Thiamis GSM/GPS Communication Modem (801901) 1. Using a ¼” nut driver fasten the hex standoffs to the base bracket. 6. Feed the GSM and GPS cables down the antenna housing and screw the GSM-GPS antenna onto the antenna...
- Page 4 9. Connect the RS-232 to USB converter cable to the 12. Connect the barrel Thiamis unit and the DustTrak Aerosol Monitor. connector end of the power connector to the DustTrak Aerosol Monitor. 13. Connect the locking connector end of the power cable to the heated inlet if you 10.
