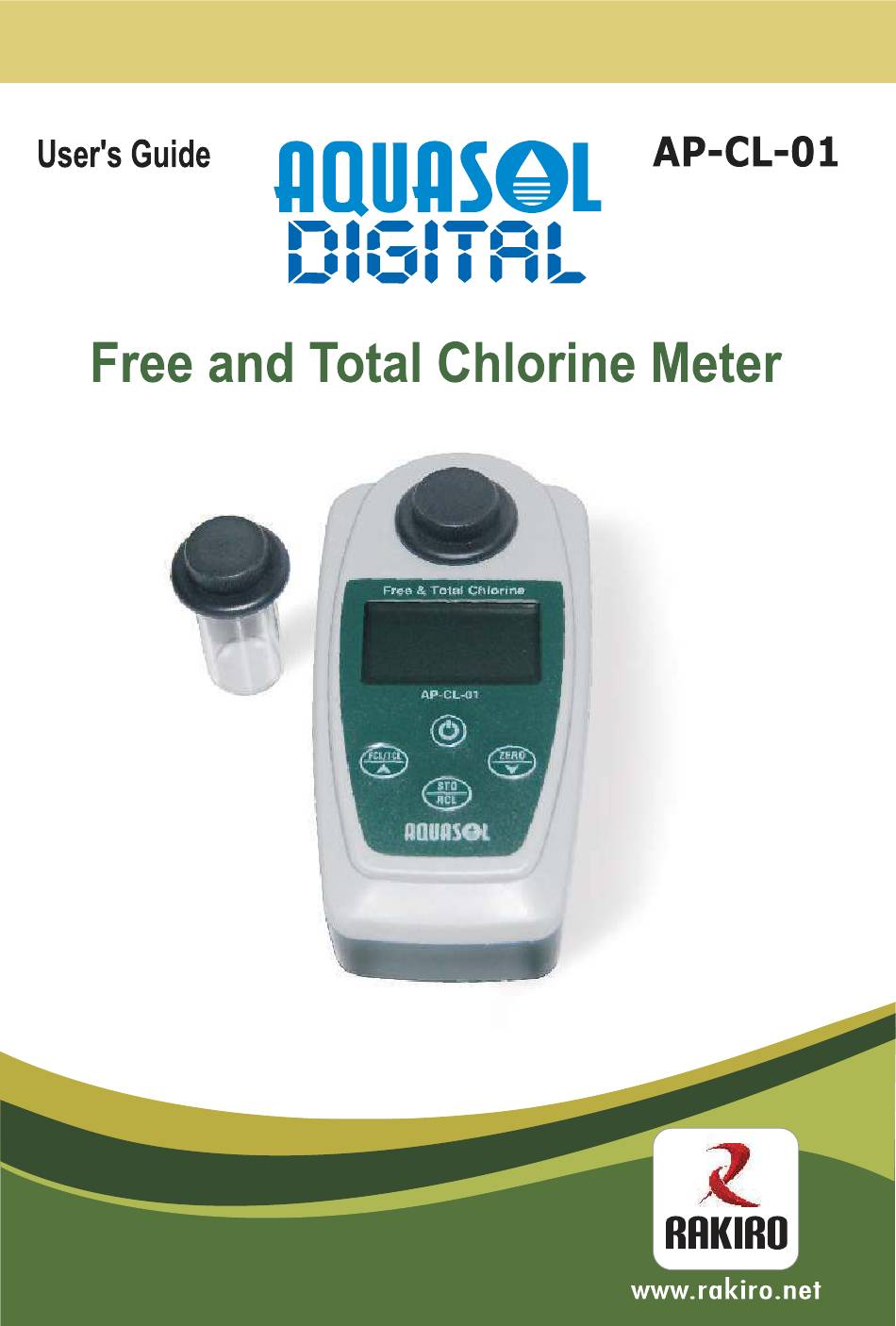

- Page 2 Introduction : We thank you for purchasing portable free and total chlorine meter. Before using the instrument, please note that the operation instructions should be read carefully, which will help you to operate and maintain the instrument, as well as to avoid trouble caused by unsuitable operation and maintenance.
- Page 3 Specifications: Range 0 - 5.00 ppm Resolution 0.01 ppm Accuracy ± 3% FS Response <5 seconds Operating 0 ~ 50°C Sample 10 ml Data memory Storage /recall up to 150 points Power DC 1.5V (AAA) battery x 4 Dimension Meter: 70 x 135 x 65 mm Weight Meter: 168 g (including battery) Accessories:...
- Page 4 1. Battery low sign 2. FCL or TCL mode 3. Reading 4. Recall mode 5. Data stored sign 6. The ordinal number of the stored reading 7. Unit...
- Page 5 Power key. Choose FCL or TCL mode. In Recall mode, browse records. Zero calibration. In Recall mode, browse records. Store the current reading. Press 3 sec. to enter Recall mode. 1. Press to turn the meter on. 2. Press and hold for two seconds to choose FCL or TCL mode.
- Page 6 7. Unscrew the lid and put one spoon of FC-1 (for Free Chlorine measurement) or TC-1 (for Total Chlorine measurement) reagent into the sample solution. 8. Now Screw the lid back and stir the bottle for about 30 seconds until the reagent is dissolved completely &...
- Page 7 1. After getting a reading, press to store the current reading. The Store icon and the ordinal of this record will appear on the display. 2. Press and hold for 3 sec. to enter Recall mode. In this mode, use to browse records.
