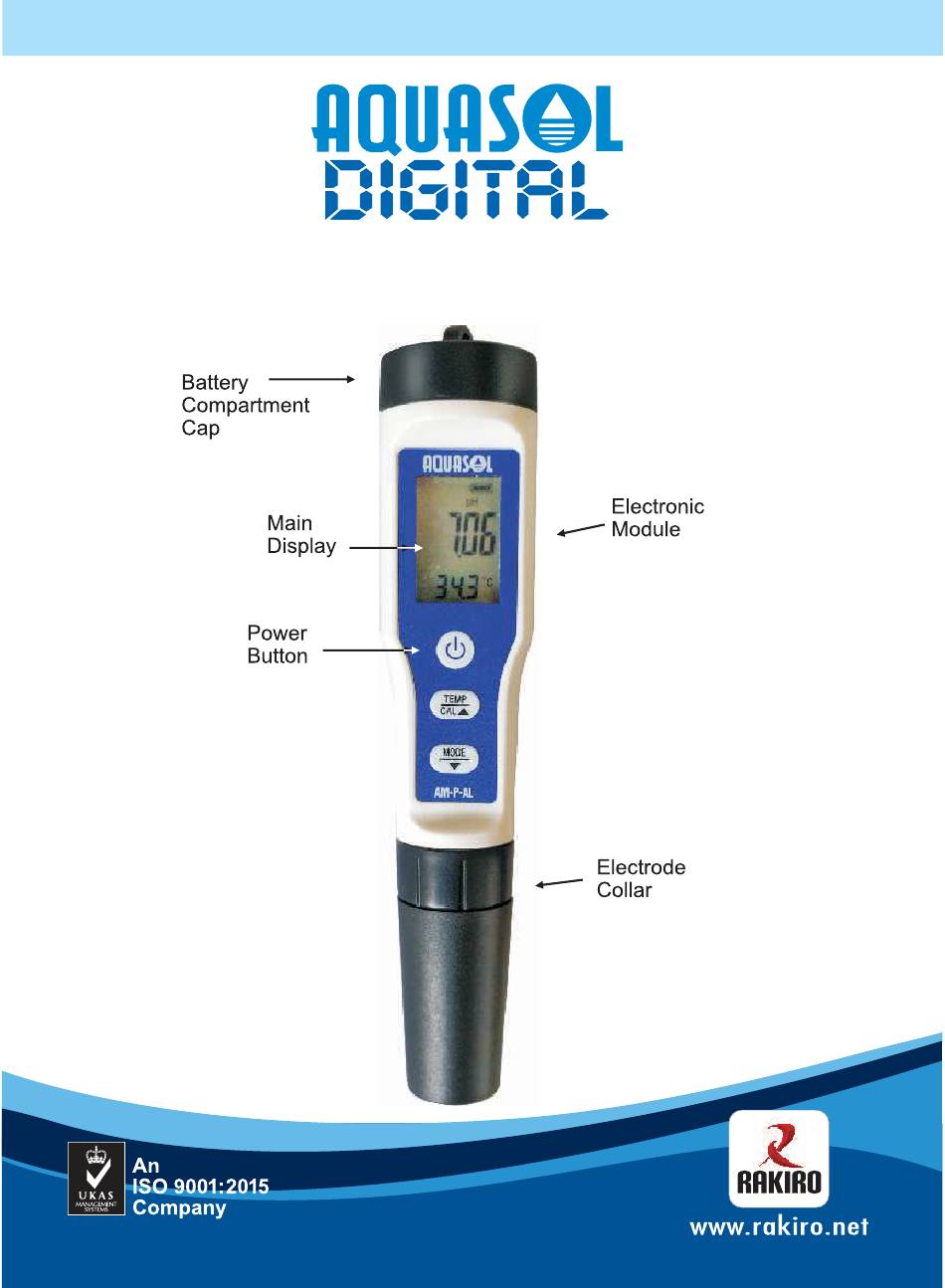

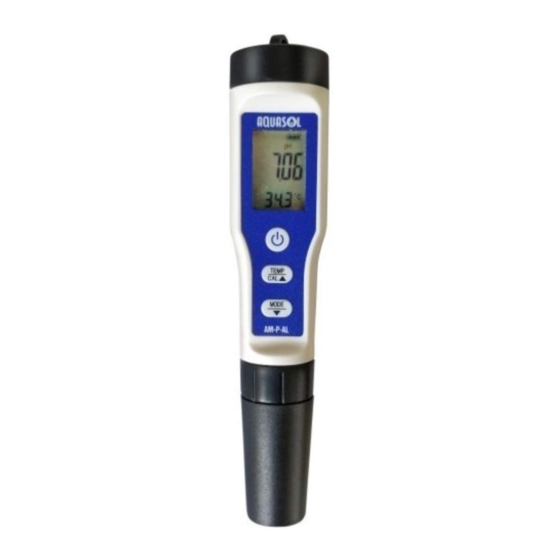

- Page 1 AM-P-AL User's Guide Multi Parameter Handheld Meter pH/Conductivity/TDS/Salt/Temp...
- Page 2 Introduction: We thank you for having purchased AM-P-AL Multi Parameter Handheld Meter. Before using the instrument, please read the operation instructions carefully, which will help you to operate and maintain the instrument, as well as to avoid trouble caused by unsuitable operation and maintenance.
- Page 3 Accessories : Meter with 3-in-1 electrode Pouch Instruction manual LR44 battery x 3 (installed in the meter) Display Description: Measure Readings Temperature Conductivity Battery Status Unit Unit Parameter...
- Page 4 Functions of Keyboard : Turn on or off power. Short Press to change Temperature unit. Long Press for Calibration To Change Mode between pH/EC/TDS Preparation: Remove the protection cap from the electrode. Rinse the electrode with clean water and wipe it dry.
- Page 5 Calibration : <pH> Make sure the sensor is 3-in-1 electrode and switch to pH mode. Dip the electrode into the buffer solution pH 7.00. Stir gently and wait until the reading is stable. Press and hold “CAL” for 5 sec. to enter calibration mode. The display will appear CAL and flashing 7.00.
- Page 6 <COND/TDS> Make sure the sensor is 3-in-1 electrode and switch to pH mode. Dip the electrode into the buffer solution 1413 ìS/cm (706 PPM). Stir gently and wait until the reading is stable. Press and hold “CAL” for 5 sec. to enter calibration mode.
- Page 7 <COND, TDS, Salt> Press “MODE” to choose COND, TDS or Salt mode. After calibration, rinse the 3-in-1 electrode with clean water and wipe it dry. Dip the electrode into the sample solution which is going to be measured. Stir gently and wait until a stable reading can be obtained.
- Page 8 Multi Parameter Handheld Meter pH/Conductivity/ TDS/Salt/Temp...
