Summary of Contents for Nordson Pro-P2

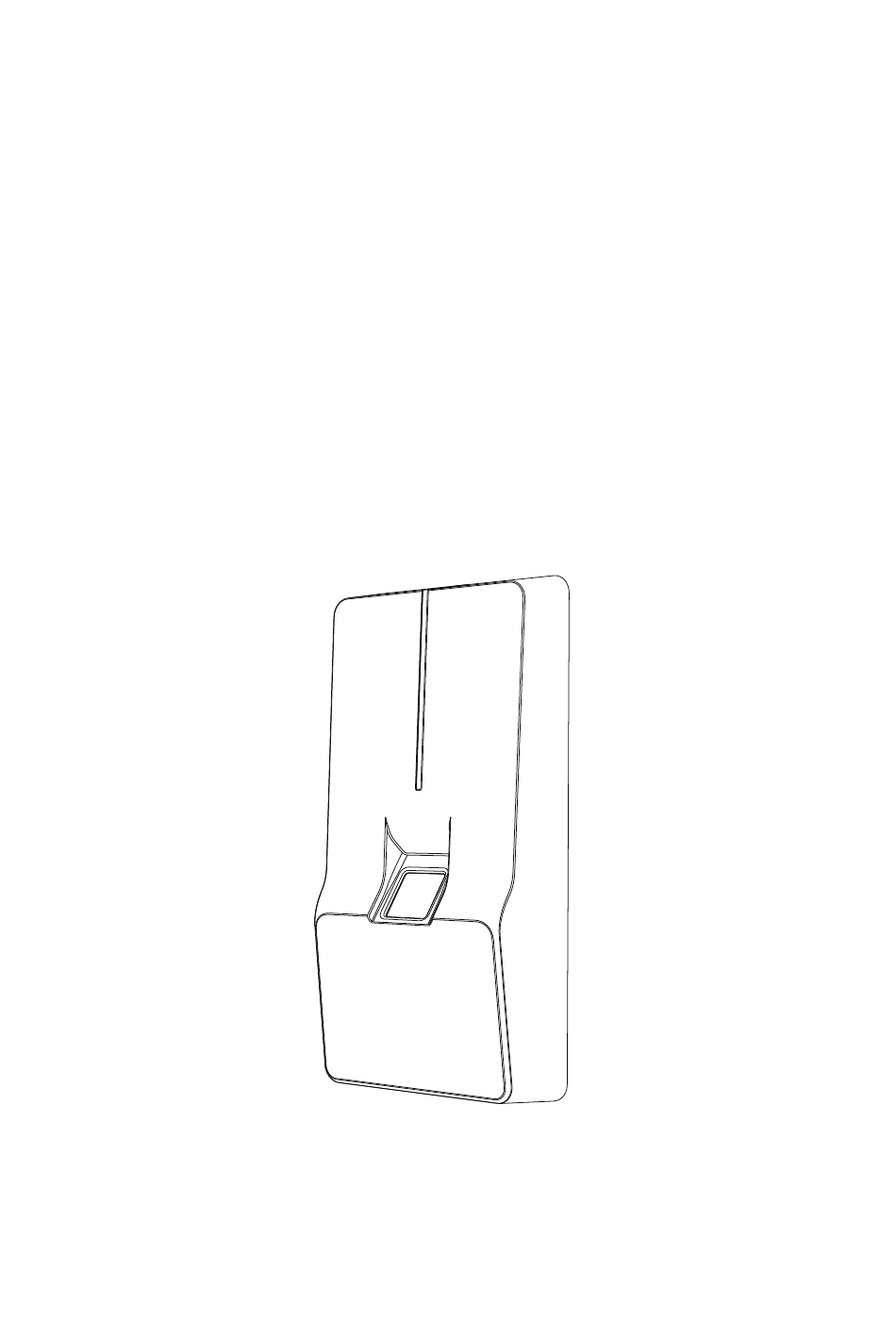

- Page 1 Pro-P2 Fingerprint Standalone Access Control User Manual...
-
Page 2: Table Of Contents
Content Overview..............................4 Introduction............................4 Function features..........................4 Functional unit............................4 Technical parameters........................5 Installation, wiring and debugging......................5 Packing list............................5 Installation and Wiring........................6 Debugging............................7 Getting Started............................7 Enter management menu operation mode...................8 Change admin password.........................8 Set controller to Single-door mode....................8 Set door opening time to 2s......................9 Add User Card or Fingerprint......................9 Exit Management menu operation mode..................9 User open door..........................9... - Page 3 4.1.21 Adjust key volume.........................14 4.1.22 Set reader output format......................14 4.1.22.1 Set facility code......................14 4.1.22.2 Set D0 & D1 output format...................14 4.1.22.3 Set wiegand output format for reading card or pressing fingerprint......15 4.1.22.4 Set wiegand output parity format for reading card or pressing fingerprint...15 Admin card (or fingerprint) or PIN operation................15 4.2.1...
-
Page 4: Overview
Fingerprint Standalone Access Control User Manual 1 Overview 1.1 Introduction This series of products adopt the appearance of anti-metal shielding patent technology,a new 32-bit microcontroller ARM core design with powerful functions. They are very stable and reliable. It’s a new generation of multi-function access controller, including Reader mode, Single-door mode, Interlock mode, Demo mode etc. -
Page 5: Functional Unit
Infrared emission tube Card Indicator Infrared Film switch keypad Inductive optical Metal Button Pro-P2 Special infrared remote control keyboard 1.4 Technical parameters Working voltage: DC10～14V Standby current: ≤50mA Maximum distance of reading EM and HID cards: 5cm ... -
Page 6: Installation, Wiring And Debugging
Fingerprint Standalone Access Control User Manual 2 Installation, wiring and debugging 2.1 Packing list Item Model Note Color box Standalone access control User manual Punch stickers Decorative sheet Expansion rubber plug Φ6mm×30 mm White Self-tapping screw ΦKA3mm×25 mm Galvanized 2.2 Installation and Wiring... - Page 7 Fingerprint Standalone Access Control User Manual ①Put the on a suitable position on the wall, use a percussion drill to make an outlet Punch sticker hole with a diameter greater than 14mm and four plastic screw holes with a diameter of 6mm, and then insert four matching plastic screws;...
-
Page 8: Debugging
Fingerprint Standalone Access Control User Manual 2.3 Debugging Turn on the power, test according to the content of the introduction, until the electric lock can be opened correctly with the card reader, fingerprint and exit button, the debugging is completed. 3 Getting Started Writing Conventions: Keypad operation only can be used between “0123456789*#”... -
Page 9: Enter Management Menu Operation Mode
Fingerprint Standalone Access Control User Manual “#” means previous operation was received by system, it normally uses at the end of the digital numbers of PIN code, ID number, card number or parameter, when you type this key it means input is finished. "*"... -
Page 10: Set Controller To Single-Door Mode
Fingerprint Standalone Access Control User Manual 3.3 Set controller to Single-door mode Factory default setting is single door mode, if user does not sure about the mode, please set it again, the steps please follow: 03, 1# 3.4 Set door opening time to 2s Assuming it is an electric mortise lock, the factory default opening time is 2S, no adjustment is required. -
Page 11: Basic Functions
Fingerprint Standalone Access Control User Manual 4 Basic Functions 4.1 Management menu operations In all modes, the steps of entering the management menu: * key (Hold on for more than 2 seconds), (Admin Password)# or to read Set-card Note: Admin Password is 6 digits, 888888 is the factory default admin password. User should change the Admin Password when use the device for first time, otherwise user cannot continue other operation. -
Page 12: Set Machine Mode
Fingerprint Standalone Access Control User Manual 02, 0#, delete 3 Set-cards(or fingerprint). 02, 1#, delete 3 Add-cards(or fingerprint). 02, 2#, delete 3 Delete-cards(or fingerprint). 02, 3#, delete 3 Super-open-cards(or fingerprint). 02, 4#, delete 3 Anti-duress-cards(or fingerprint). 02, 5#, delete 3 Authorization-cards(or fingerprint). 02, 6#, delete 3 Normal-open-cards(or fingerprint). -
Page 13: Add User
Fingerprint Standalone Access Control User Manual 4.1.7 Add User 4.1.7.1 Automatically generates ID numbers to add user card (or fingerprint) Read card(or fingerprint) continuously to add user: 10, read card(or press fingerprint twice ), … * Input 8-digit format card number to add user 10, 8# (8-digit format card number) #, 8# (8-digit format card number) #, …* Input 10-digit format card number to add user: 10,10# (10-digit format card number) #, 10# (10-digit format card number) #, …*... -
Page 14: Delete User
Fingerprint Standalone Access Control User Manual 4.1.8 Delete user Delete all users: 20, 0000# Delete user card by read card(or fingerprint): 21, read card(or press fingerprint once), … Delete user by input 8-digit format card number: 21, 8# (8-digit format number) #, 8# (8-digit format number) #, … Delete user by input 10-digit format card number: 21, 10# (10-digit format number) #, 10# (10-digit format number) #, …... -
Page 15: Set Limits User Mode
Fingerprint Standalone Access Control User Manual (or fingerprint) in the first mode, it can switch to Normal-open mode and normal status quickly. The operation of Normal-open card(or fingerprint), see relevant chapter of admin cards(or fingerprint) operation. 4.1.12 Set Limits User Mode 33, 0#, disable users to use. -
Page 16: Set Anti-Crack Function
Fingerprint Standalone Access Control User Manual 4.1.17 Set Anti-crack function 43, 0#, default value, normal working mode. 43,1#, alarm working mode, when error operation times more than allowed times, the machine alarm will beeps and it send out alarm signal. 43, 2#, locked working mode, when error operation times more than allowed times, the machine will lock up for some time. -
Page 17: Adjust Key Volume
Fingerprint Standalone Access Control User Manual Note: Enable or disable buzzer only concern normal users operation, such as the sound of opening door by read cards. When you press the * key for 2 seconds, the buzzer is forced to enable, such as entering the management menu . -
Page 18: Set Wiegand Output Format For Reading Card Or Pressing Fingerprint
Fingerprint Standalone Access Control User Manual card number, but omit the 0 in front of it. For example, a 3 byte number of RS232-TTL-HEX format is A83EF6, the actual output is A83EF6, the RS232-TTL-ASCII-8 format is 168,16118, the actual output is 16816118, the RS232-TTL-ASCII-10 format is 0011026166, the actual output is 11026166. -
Page 19: Delete Card (Or Fingerprint) Operation
Fingerprint Standalone Access Control User Manual card, first read Add-card (or fingerprint), sound two short “beep”, light is orange, indicating to enter the add user card state, second read Add-card (or fingerprint), sound a long “beep” , light turns red, indicating to exit add user card state. 4.2.3 Delete-card (or fingerprint) operation Read Delete-card (or fingerprint), read user card (or fingerprint), read user card (or fingerprint), .. -
Page 20: Users Operation
Fingerprint Standalone Access Control User Manual 4.3Users operation 4.3.1 Get user card or enter Fingerprint Users must obtain the user card or entering fingerprint from the administrator for the first time. 4.3.2 4.3.2 User open door Open door by user card or fingerprint: read user card, or fingerprint. -
Page 21: Operation Characteristics In Different Machine Modes
Fingerprint Standalone Access Control User Manual When you forget the Admin Password, or when the users set the parameters randomly, you can return to the normal situation by restoring the factory settings, as follows: Power off, and then power on again, press # key in one second within the indicating light turn orange, then you will hear two “beep”, and a long beep, admin password has restored to 888888, while the machine parameters revert to factory settings, the specific default... -
Page 22: Management Menu Summary Table
Fingerprint Standalone Access Control User Manual 5 Management menu summary table 5.1 Reader mode management menu summary table Way to enter menu : * (press for more than 2 seconds), (Admin password) # Menu Parameter or operation step Function Default value (New admin password) #, Change admin password 888888... - Page 23 Fingerprint Standalone Access Control User Manual Way to enter menu : * (press for more than 2 seconds), (Admin password) # Menu Parameter or operation step Function Default value 0000# Delete all users Press fingerprint 1 time Delete user by fingerprint (ID) #, (ID) #,…...
-
Page 24: Single-Door Mode (Or Interlock Mode) Management Menu Summary Table
Fingerprint Standalone Access Control User Manual 5.2 Single-door mode (or Interlock mode) management menu summary table Way to enter menu : * (press for more than 2 seconds), (Admin password) # Default Menu Parameter or operation step Function value (New Admin Password) #, (Repeat Change admin password 888888 new Admin Password) - Page 25 Fingerprint Standalone Access Control User Manual Way to enter menu : * (press for more than 2 seconds), (Admin password) # Default Menu Parameter or operation step Function value Demo mode Cannot read card Only read EM card Only read HID card Only read IC card Read EM and HID card Read EM and IC card...
- Page 26 Fingerprint Standalone Access Control User Manual Way to enter menu : * (press for more than 2 seconds), (Admin password) # Default Menu Parameter or operation step Function value (ID)#, (ID)#, … Input ID number to delete user. Open door way by card Open door way by card or PIN Open door way by fingerprint Open door way by card and...
-
Page 27: Demo Mode Management Menu Summary Table
Fingerprint Standalone Access Control User Manual Way to enter menu : * (press for more than 2 seconds), (Admin password) # Default Menu Parameter or operation step Function value normally bright red indicator Increase the brightness of the 2,2,…,# normally bright red indicator Disable the buzzer Enable the buzzer 1,1,…,#... -
Page 28: Common Troubleshooting
Fingerprint Standalone Access Control User Manual Because the machine internal relay is used for signal output, cannot directly drive large power load, in order to ensure the long-term stable operation of the machine, the electric lock be not connected directly with NO, NC, COM of the machine, but driven by an access control special power supply. - Page 29 Fingerprint Standalone Access Control User Manual distance is too close supply. connect the housing to the ground. Choose the qualified lock or 2. Part of the electrical lock parallel connect a 470uF/25V interference is too large. electrolytic capacitor at the two ends of the lock.
