Rubinet 8EFML Assembly Instruction Manual

Download this manual

180215

ASSEMBLY INSTRUCTION

8EFML or C

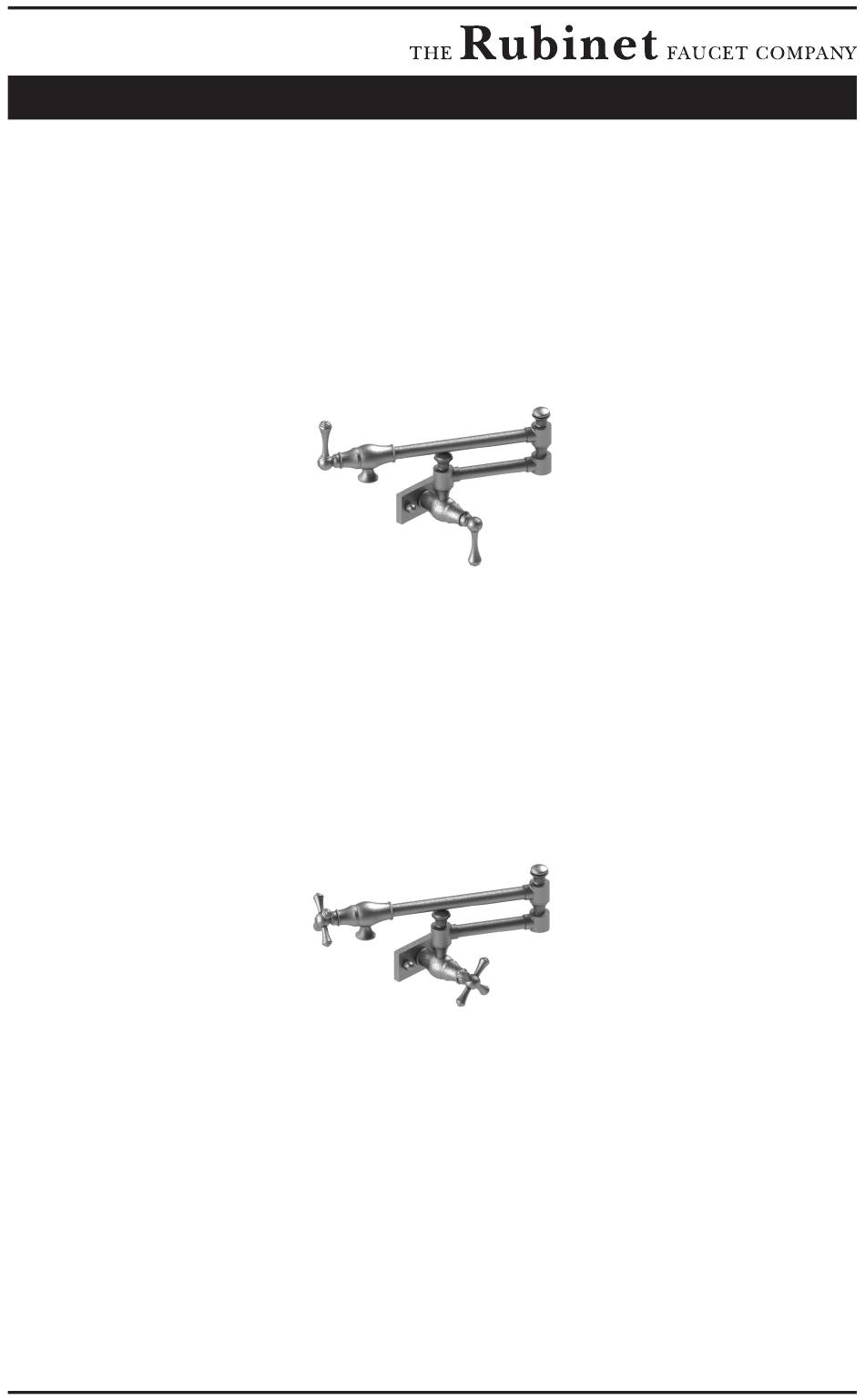

WALL MOUNT POT FILLER

8EFML

8EFMC

REMOVAL OF FAUCET:

Always turn the water supply off before removing the existing faucet or disassembling a valve. Open both faucet handles to relieve water pressure

and to ensure that the water has been successfully turned off.

CARE OF FAUCET:

The use of warm water and a soft cloth is all that is required to clean Rubinet products. The patina of our living finishes (Oil Rubbed Bronze &

Tuscan Brass) will change as a result of normal use. Applying Mineral Oil on occasion will create a softer look, subtle color changes and character.

Need help?

Do you have a question about the 8EFML and is the answer not in the manual?

Page 1 CARE OF FAUCET: The use of warm water and a soft cloth is all that is required to clean Rubinet products. The patina of our living finishes (Oil Rubbed Bronze & Tuscan Brass) will change as a result of normal use. Applying Mineral Oil on occasion will create a softer look, subtle color changes and character.
Page 2 WALLMOUNT POT FILLER 8EFML or C...
Page 3 WALL MOUNT POT FILLER 8EFML or C FINISHED WALL Ø 1/8˝ Hole Size Ø 1 1/4˝ MINIMUM 1 1/8˝ for Stud Back MAXIMUM 1 1/4˝ 2 3/4˝ Ø 7/16˝ Hole Size for Concrete 1/2˝ 1 3/8˝ (not supplied) STUD WALL BACK CONCRETE WALL BACK •...
Page 4 WALL MOUNT POT FILLER 8EFML or C Plug Tighten set screw to secure Remove plug and discard...
Page 5 WALL MOUNT POT FILLER 8EFML or C Tighten set screw to secure...
Page 6 WALL MOUNT POT FILLER 8EFML or C Spacer Tighten set screw to secure...
Page 7 WALL MOUNT POT FILLER 8EFML or C HANDLE ALIGNMENT LOCK NUT BROACH Loosen the lock nut from the main body while holding the broach position with handle HANDLE Replace handle one tooth o from the ON position as shown. Turn the handle to reach the desired handle alignment.
Page 8 11" 2 1/8" 6 3/16" 1/2" NPT 4" CONTACT US: If you need assistance with installation, replacement parts or have any questions regarding your Rubinet product, 905-851-6781 1-800-461-5901 www.rubinet.com please call a Customer Service representative at: toll free or visit...
