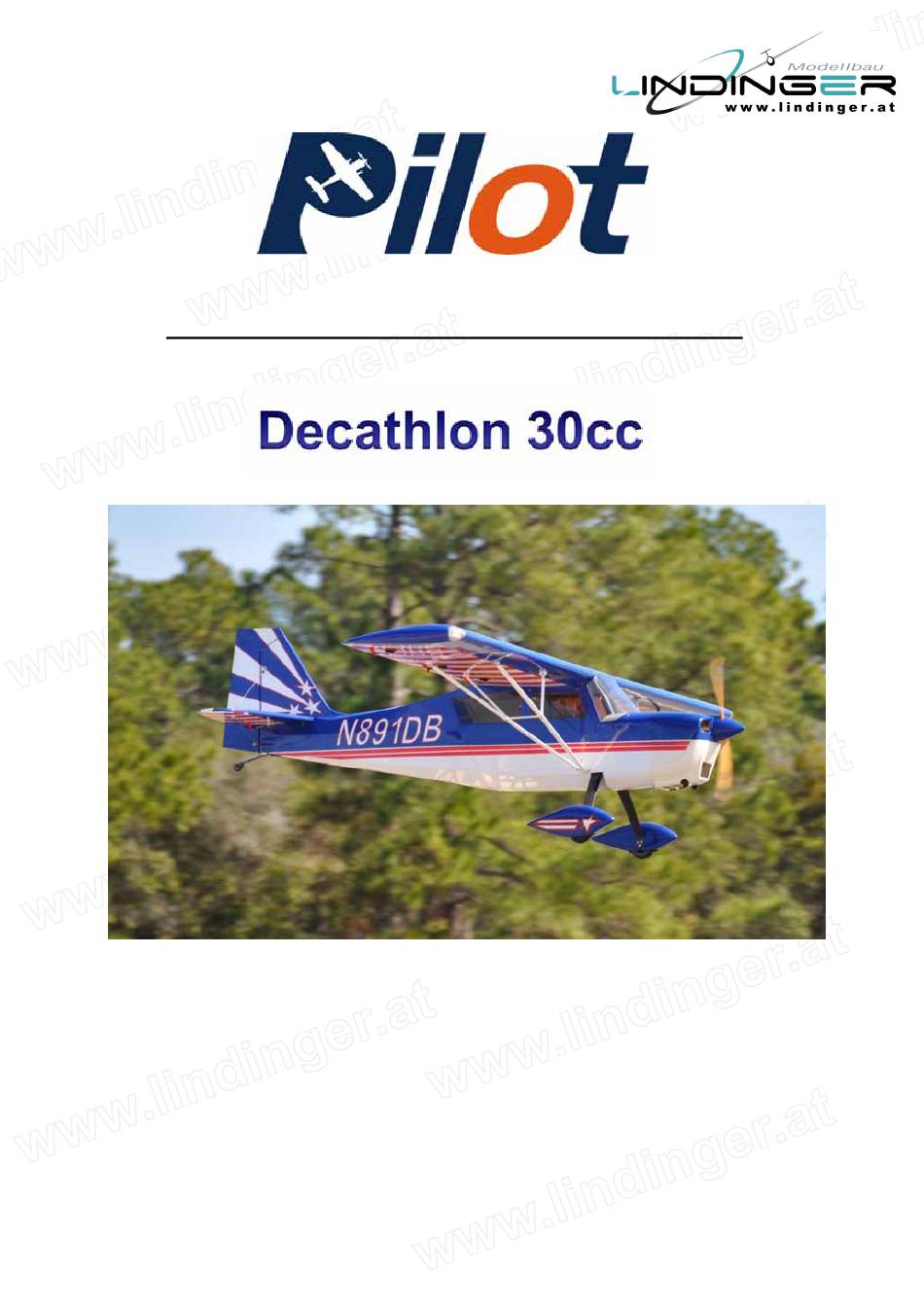

- Page 1 Modellbau Lindinger GmbH Assembly Manual For Wingspan: 88 in Wingarea: 1479.8 sp in Length: 78.8 in Engine: 50CC www.pilot www.pilot- - rc.com rc.com Modellbau Lindinger GmbH e-Mail: office@lindinger.at www.lindinger.at...
-
Page 2: Introduction
Modellbau Lindinger GmbH INTRODUCTION Thank you for purchasing our new 30cc Decathlon. we strive to achieve the real Quick Builded and ARF aircraf . It just requires the least amout of assembly of any kit that almost finished in factory.To obtain the perfect... -
Page 3: Warranty
Modellbau Lindinger GmbH WARRANTY WARRANTY ■ All Pilot-RC products are guaranteed against defects for 30 days of receiving your airplane. This warranty is limited to construction or productions defects in both material and workmanship , doesn't cover any component parts damaged by use or modification . -
Page 4: Attention
Modellbau Lindinger GmbH ATTENTION ATTENTION ■ You should not regard this plane as toy! ■ To ensure safety,please read the instruction manual thoroughly before assembly . ■ Building and operating model plane require diligent practicing and correct guidance. Any neglect,carelessness and missing experience can cause serious bodily harm and property damage. -
Page 5: Table Of Contents
Modellbau Lindinger GmbH INDEX Introduction ………………….………..….…….…. Warranty …………………….……..….…..……. Attention …………….…………..….……..……. Fuselage Unit Rudder Assembly Rudder Control Horns ………..…….…...…….. Tail Wheel Installation …………..……..Landing Gear Assembly Main Landing Gear Installation ………….…..……. Pants Installation …………..….……… Servo Unit Wing Servo Assembly Servo Arm Installation ………….….………. -
Page 6: Fuselage Unit
Modellbau Lindinger GmbH Fuselage Unit Rudder Assemby 2. Trace around the locking plate Rudder Control Horn with kinfe and cut off the cover below.Then the pre-cut slots appear 3. Scuff the middle of horns with a 1. Tear off the cover on the horns... - Page 7 Modellbau Lindinger GmbH Rudder Assembly 4. Apply the 30 minutes epoxy Make sure the horn line up with inside the pre-cut slot, and coat the ground and align the both side horn with epoxy as shown before epoxy has cured` 5.
-
Page 8: Tail Wheel Installation
Modellbau Lindinger GmbH Rudder Assembly 2. Drill holes on the tail wheel mounting block according the bracket Tail Wheel Installation taped on place or mounted with bolt as shown 3. Install the blind nuts through the 1. Draw a center line with a pencil... - Page 9 Modellbau Lindinger GmbH Rudder Assembly 4.Install the hatch over the opening in the rear of fuse with 3 screws in Ensure spring have pulled tightly accordance with the pre-drilled holes 5. Drill hole 1mm bit and mount More detail will be shown in...
-
Page 10: Landing Gear Assembly
Modellbau Lindinger GmbH Landing Gear Assembly Main Landing Gear Installation NOTE: the correct edge in mounting Taper to rear Straight edge to front of fuse Modellbau Lindinger GmbH e-Mail: office@lindinger.at www.lindinger.at... - Page 11 Modellbau Lindinger GmbH Landing Gear Assembly 1. Install the landing gear with the bolts and locking nuts 3. Lift the rear of fuse to line it up with Note:Don’t over tighten and crack ground as shown the carbon fiber 4. Make the flat sides of the axle bolt 2.
-
Page 12: Pants Installation
Modellbau Lindinger GmbH Landing Gear Assembly 5. Install the collars and wheel in order with a drop of Blue Loctite on 2. Drill the holes for the mounting the collar set screw and ensure the bolts and install the blind nuts. -
Page 13: Servo Unit
Modellbau Lindinger GmbH Servo Unit Wing Servo Assembly Servo Arm Installation 2. Ensure the servo arm is 90 Minimum Request Servo: degrees with servo as shown. Then 180 in.zo / Metal Gear / Digital mark and drill holes with 2mm bit... -
Page 14: Aileron Control Horns
Modellbau Lindinger GmbH Wing Servo Assembly 2. Trace around the locking plate Aileron Control Horns with kinfe and cut off the cover below.Then the pre-cut slots appear 3. Scuff the horns with a piece of 1. Tear off the cover on the horns sand paper for good glue bond.Then... -
Page 15: Servo Installation
Modellbau Lindinger GmbH Wing Servo Assembly 4. Apply the 30 minutes epoxy Servo Installation inside the pre-cut slot for horn ,and coat the horn with epoxy as shown 5. Slide the horn into slot slightly and Mount the locking plate in place.Wipe away excess epoxy... - Page 16 Modellbau Lindinger GmbH Wing Servo Assembly 2. Lock the connector with the 4. Then put the extention lead provided safety clip against vibration through the root of wing and loosened tension as shown 3. Cut out the cover for servo 5.
- Page 17 Modellbau Lindinger GmbH Wing Servo Assembly 6. Install the servo arms facing 7. Repeat all the step above for the toward the wing tip and adjust other wing pushrod in proper length to keep the aileron panel on the neutral position...
-
Page 18: Rudder Servo Assembly
Modellbau Lindinger GmbH Rudder Servo Assembly Servo Tray Installation 2. Drill holes with 2mm bit Minimum Request Servo: 180 in.zo / Metal Gear / Digital 1. Turn on your radio device 3. Mounting screws and nuts according the Wing Servo Installation.Keep the tray holes on... -
Page 19: Servo Installation
Modellbau Lindinger GmbH Rudder Servo Assembly Servo Installation 1. Mount servo with mounting screws and face the brand toward The rudder servo installation would the rudder.Drill holes with 1mm bit go on two plans,just choose the one you like. Plan 1 2. - Page 20 Modellbau Lindinger GmbH Rudder Servo Assembly 3. Attach the pre-installed boll link to the rudder horn and not tighten the locking nut 5. Crimp them in place with crimping pliers Turn on your radio to keep the servo neutral. Mount the pre-installed boll link to the rudder arm without locking nut.
- Page 21 Modellbau Lindinger GmbH Rudder Servo Assembly 7. Thread the coupler in 2 – 4 mm 9. Remove the ball links from (according the bolt holes center). rudder horn and install the servo Ensure the same length of cables and arm ball links with bolts and nuts...
- Page 22 Modellbau Lindinger GmbH Rudder Servo Assembly Rudder Servo Plan 2 The installation process please refer to Elevator Installation part Modellbau Lindinger GmbH e-Mail: office@lindinger.at www.lindinger.at...
-
Page 23: Elevator Servo Assembly
Modellbau Lindinger GmbH Elevator Servo Assembly Servo Arm Installation 2. Ensure the servo arm is 90 degrees with servo as shown. Then mark and drill holes with 2mm bit Minimum Request Servo: 180 in.zo / Metal Gear / Digital Pre fasten the arm... -
Page 24: Elevator Control Horns
Modellbau Lindinger GmbH Elevator Servo Assembly 2. Trace around the locking plate Elevator Control Horns with kinfe and cut off the cover below.Then the pre-cut slots appear 1. Tear off the cover on the horns 3. Scuff the horns with a piece of and locking plates sand paper for good glue bond.Then... -
Page 25: Servo Installation
Modellbau Lindinger GmbH Elevator Servo Assembly Servo Installation 4. Apply the 30 minutes epoxy inside the pre-cut slot for horn ,and coat the horn with epoxy as shown 5. Slide the horn into slot slightly 1. Lock the connector with the... - Page 26 Modellbau Lindinger GmbH Elevator Servo Assembly 4. Cut the cover on the pre-drill 2. Then put the extention lead hole for stab mounting.Install the through fuselarge stab with mounting bolts and washers 3. Install servos with mounting screws. Face the brand toward the rear of fuse.
- Page 27 Modellbau Lindinger GmbH Elevator Servo Assembly 6. Install the servo arms facing 7. Repeat all the step above for the toward the ground and adjust other stabilizer pushrod in proper length to keep the aileron panel on the neutral position...
-
Page 28: Engine Unit
Modellbau Lindinger GmbH Engine Uint The process of fire installation Firewall Assembly is similar to 50cc plane ,so we show the same pictures Move if necessary 1. Measure the length of the engine (from the firewall to the prop thrust... - Page 29 Modellbau Lindinger GmbH Firewall Assembly 2. Drill the firewall according pre-set 4. Epoxy the firewall with 30 minutes laser holes for DA 50.3W 50 template epoxy and use the mounting screws is on the back (Reinstall the aluminum and locker nut to fasten it immediately parts by yourself).
-
Page 30: Engine Assembly
Modellbau Lindinger GmbH Engine Assembly Engine Installation Remenber: Not use Bue Loctite on all engine mounting screws utill throttle servo is installed and fule line hole is drilled. You have to reinstall and trial fit the pushrod location Modellbau Lindinger GmbH e-Mail: office@lindinger.at... -
Page 31: Throttle Servo Assembly
Modellbau Lindinger GmbH Throttle servo Installation 2. Determine where the throttle servo Throttle Servo Installation mounting tray is going to be mounted on the engine box to get the straight and precise throttle linkage connection. Then make a mark and epoxy the tray in place .Finally secure with self-... -
Page 32: Ignition Module
Modellbau Lindinger GmbH Ignition Module 2. Stick and Tape the ignition outside Ignition Module the engine box allow for spark plug leads connecting the engine without excess tension .Drill for Nylon tie 1. Tape foam rubber on bottom of 3. Lock the connectors with the... -
Page 33: Hatch And Fule Tank
Modellbau Lindinger GmbH Hatch And Fule Tank Fule Tank And Dot Engine Box Hatch Fule line Fule Fill Line Epoxy the hatch in place and secure Fule tank and fule dot have been with self-tapping screws installed.Just tighten the velcro ties Modellbau Lindinger GmbH e-Mail: office@lindinger.at... -
Page 34: Final Assembly Unit
Modellbau Lindinger GmbH Final Assembly Uint 1.Open the cabin door,there is two Switch Assembly pre-cut switch mounting holes on the bracket Note: The outside switch mounting 2. Finish the mounting with screws holes have been pre-cut for standar and nuts supplied. -
Page 35: Led Assembly
Modellbau Lindinger GmbH LED Assembly LED Assembly Take a Y wire to join with the light installed on the tip of the wing Modellbau Lindinger GmbH e-Mail: office@lindinger.at www.lindinger.at... -
Page 36: Wing Assembly
Modellbau Lindinger GmbH Wing Assembly Wing Assembly Short side The bolt mounting holes have been pre- set on the wing Modellbau Lindinger GmbH e-Mail: office@lindinger.at www.lindinger.at... - Page 37 Modellbau Lindinger GmbH Wing Assembly Mount the 8 strut attaching blocks to the wing You’ll have to mock up the wing strut with these spacers then temporally install the wing and see how the strut lines up Modellbau Lindinger GmbH e-Mail: office@lindinger.at...
-
Page 38: Elevator Assembly
Modellbau Lindinger GmbH Elevator Assembly Elevator Assembly Modellbau Lindinger GmbH e-Mail: office@lindinger.at www.lindinger.at... - Page 39 Modellbau Lindinger GmbH Elevator Assembly Note: the best measure is taken between bolt holes Modellbau Lindinger GmbH e-Mail: office@lindinger.at www.lindinger.at...
- Page 40 Modellbau Lindinger GmbH Elevator Assembly Modellbau Lindinger GmbH e-Mail: office@lindinger.at www.lindinger.at...
-
Page 41: Crowl Assembly
Modellbau Lindinger GmbH Crowl Assembly Ensue all the corner are rounded Crowl Assembly and not sharp 90 degrees against splitting under vibration. Trial fit till the cowl is right Decathlon 30cc need an extension tool with a proper size ball driver and handle by cutting standard ball driver in half .Some small heat shrink... -
Page 42: Cg And Control Throws
Modellbau Lindinger GmbH CG And Control Throws Center Of Gravity The First Flight set up The center of gravity is on the rear of the wing tube as shown Throttle: Adjust idle –full Elevator: 40 Degrees on High rate 12 Degrees on Low rate... -
Page 43: Flight Preperation
Modellbau Lindinger GmbH Flight Preperation Make sure you have the right model programmed into your ■ transmitter Check the direction of each surface not and also right before ■ you take off . Rememver nothing wrong on the ground ever improves in ■...
