Note: Ceiling-mount sensors cannot be adjusted.
Ceiling-mount coverage
You can use two or more motion sensors to improve detection
coverage in an area. Multiple motion sensors can cascade (or link)
to act together as a single motion sensing device, thus increasing
the detection coverage. The "Motion detected" event will happen
when any of the cascaded/linked motion sensors detect motion,
and the "No motion detected" event will be sent when all of the
cascaded/linked motion sensor Occupancy Hold times have
expired. This cascading process is done within Composer Pro
from the Connections tab and is recommended if more than one
motion sensor is used in the same general area.
Indicates current motion
sensor status
Indicates current
battery level
Instructs the Wireless Motion
Sensor to send a periodic
update of Motion status and
light level. Only change if
needed. Lower values can
compromise battery life
Controls how long the
Motion Sensor will look for
absence of motion before
triggering a No Motion
Detected event
Click to program settings
into the device
3 3
Occupancy Hold Time
When motion is detected in the monitored area, the motion
sensor sends a "Motion detected" event to the Control4 system.
When no motion has been detected for the designated time
period ("Occupancy Hold Time"), a "No motion" event is sent to
the Control4 system.

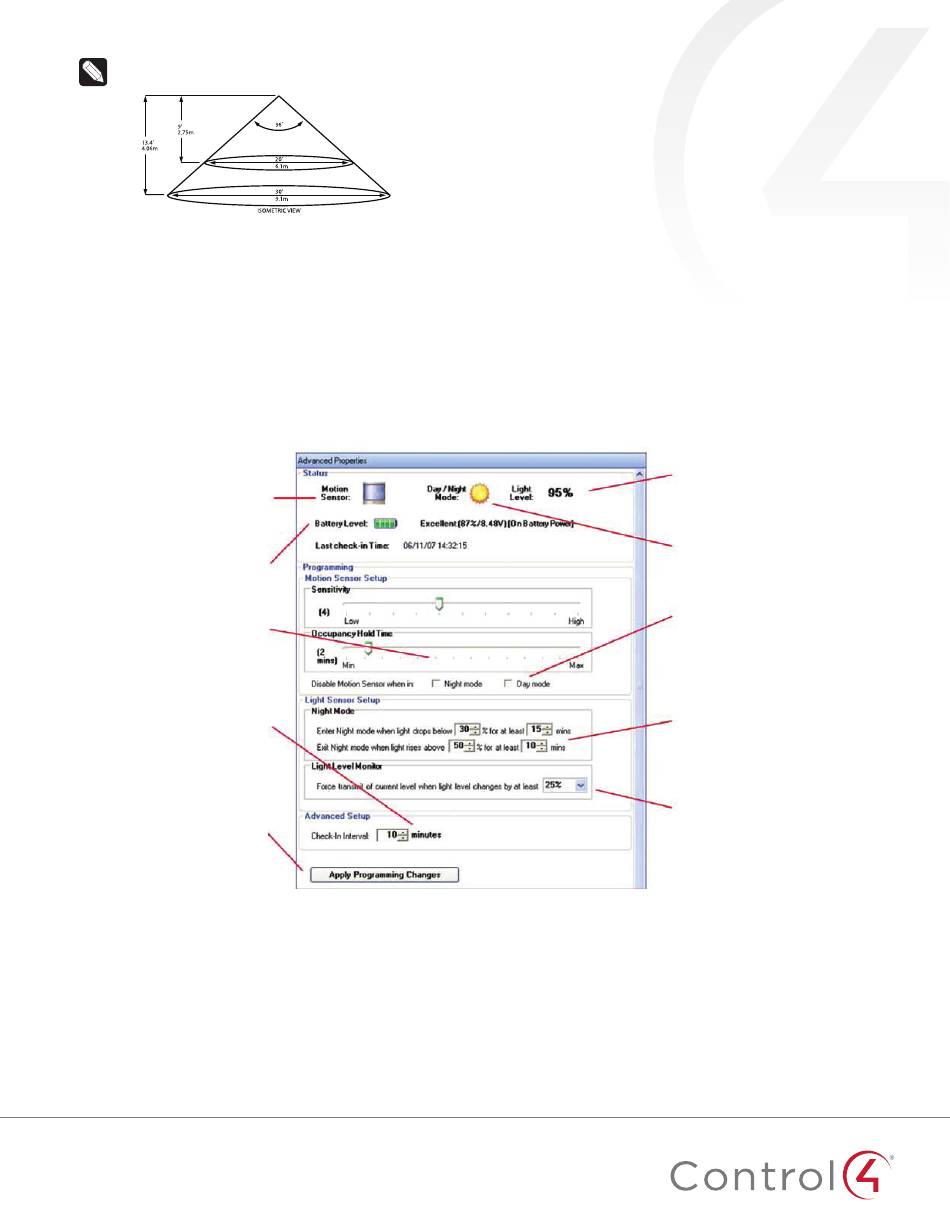

Using the slider on the Properties page in Composer Pro, the
Occupancy Hold Time may be adjusted to values ranging from
five seconds to 60 minutes. Use the Occupancy Hold Time for
the length of time required for the duration of the event or for
the amount of time for a device to be controlled. For example, if
you are controlling a light in a particular room, set the Occupancy
Hold Time for amount of time you want the light to stay on after
no more movement is detected. Then use the "No motion" alert
event to shut off the controlled light. The higher the Occupancy
Hold Time setting, the longer the battery life of the motion
sensor.
Indicates current amount of
light detected
Indicates current mode of
operation (Day/Night)
Allows Motion Sensor
function to be disabled when
in Day or Night mode (also
conserves battery life)
Controls light level and time
required before Night mode
is toggled
Instructs the Wireless
MotionSensor to send an
updated light level to the
Zigbee network when light
level changes by at least the
specified percent. Lower
values can compromise
battery life
