Features; Specifications - ADC HiGain H2TU-C-388 List 1 Quick Installation

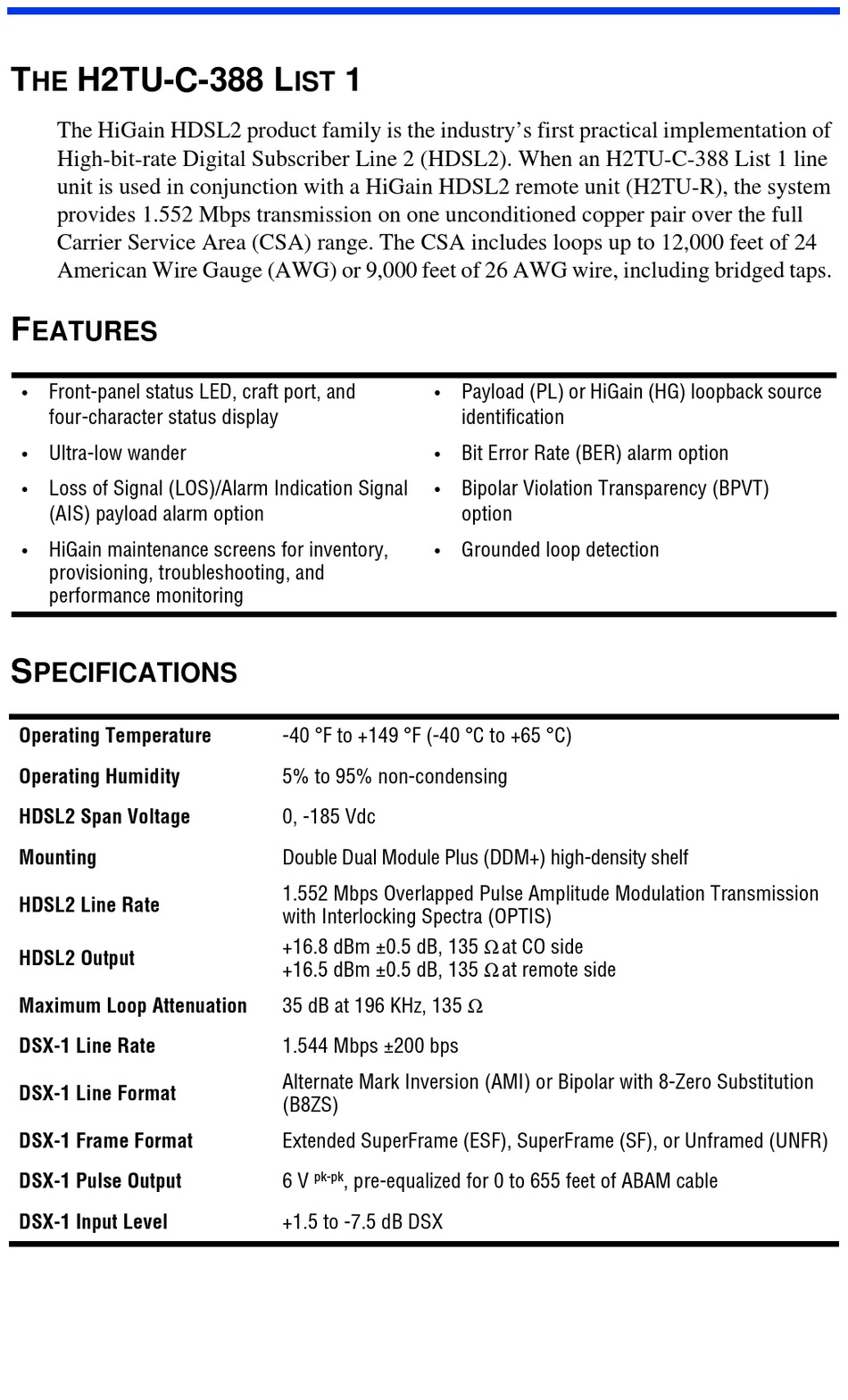

T H2TU-C-388 L
HE
The HiGain HDSL2 product family is the industry's first practical implementation of
High-bit-rate Digital Subscriber Line 2 (HDSL2). When an H2TU-C-388 List 1 line
unit is used in conjunction with a HiGain HDSL2 remote unit (H2TU-R), the system
provides 1.552 Mbps transmission on one unconditioned copper pair over the full
Carrier Service Area (CSA) range. The CSA includes loops up to 12,000 feet of 24
American Wire Gauge (AWG) or 9,000 feet of 26 AWG wire, including bridged taps.
F
EATURES
• Front-panel status LED, craft port, and
four-character status display
• Ultra-low wander
• Loss of Signal (LOS)/Alarm Indication Signal
(AIS) payload alarm option
• HiGain maintenance screens for inventory,
provisioning, troubleshooting, and
performance monitoring
S
PECIFICATIONS
Operating Temperature
Operating Humidity
HDSL2 Span Voltage
Mounting
HDSL2 Line Rate
HDSL2 Output
Maximum Loop Attenuation
DSX-1 Line Rate
DSX-1 Line Format
DSX-1 Frame Format
DSX-1 Pulse Output
DSX-1 Input Level
1
IST
• Payload (PL) or HiGain (HG) loopback source
• Bit Error Rate (BER) alarm option
• Bipolar Violation Transparency (BPVT)
• Grounded loop detection
-40 °F to +149 °F (-40 °C to +65 °C)
5% to 95% non-condensing
0, -185 Vdc
Double Dual Module Plus (DDM+) high-density shelf
1.552 Mbps Overlapped Pulse Amplitude Modulation Transmission
with Interlocking Spectra (OPTIS)
+16.8 dBm ±0.5 dB, 135 Ω at CO side
+16.5 dBm ±0.5 dB, 135 Ω at remote side
35 dB at 196 KHz, 135 Ω
1.544 Mbps ±200 bps
Alternate Mark Inversion (AMI) or Bipolar with 8-Zero Substitution
(B8ZS)
Extended SuperFrame (ESF), SuperFrame (SF), or Unframed (UNFR)
pk-pk
6 V , pre-equalized for 0 to 655 feet of ABAM cable
+1.5 to -7.5 dB DSX
identification
option
