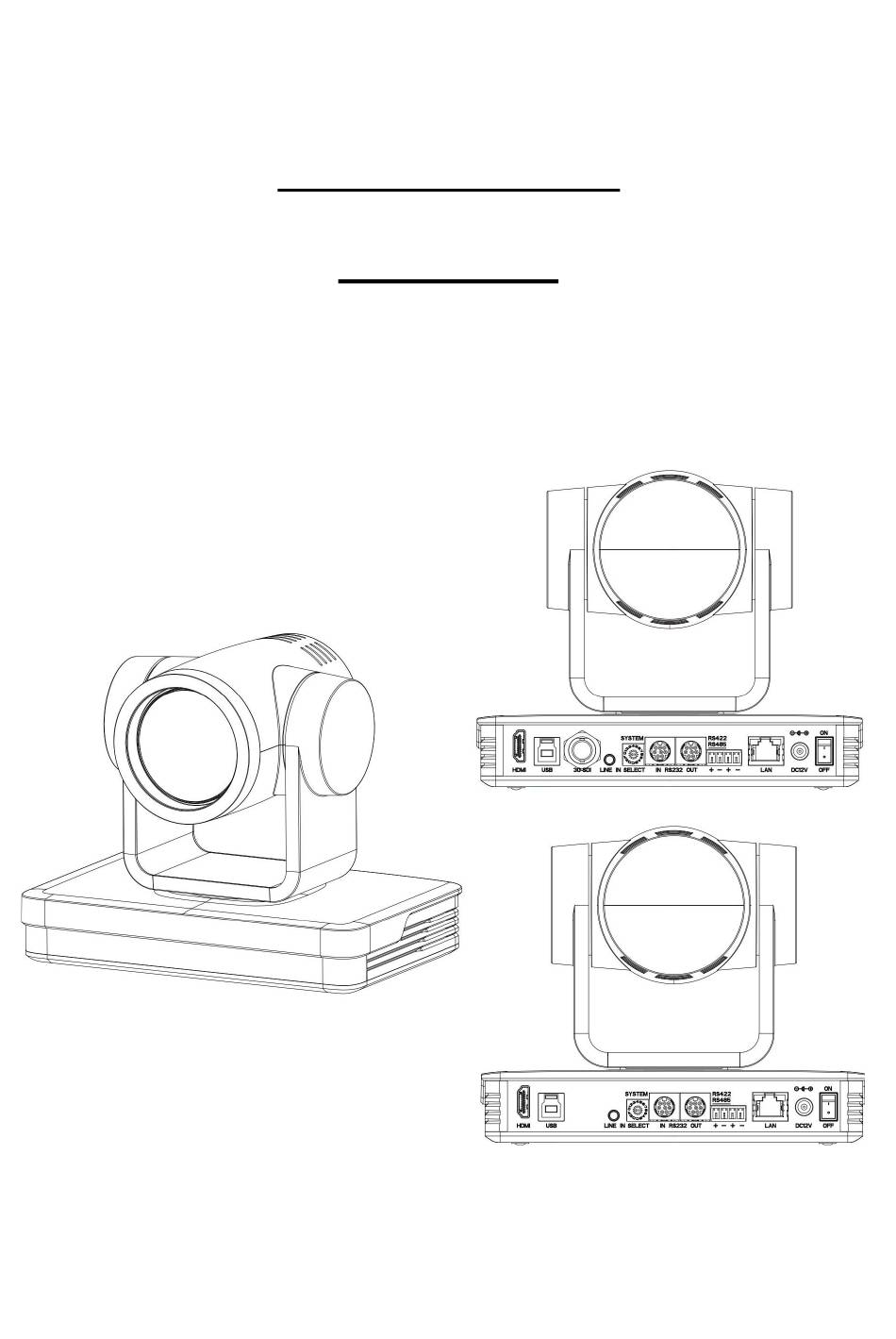

- Page 1 SPECTRA E52/E53 User Manual （V1.1）...
- Page 2 Attentions Improper operations may damage the product structure and result in mechanical failure. Please note the following tips. Do not move the camera by grabbing the head. Move the camera by holding the bottom with one or both hands. Please do not rotate the lens and holder manually, no matter if the camera is power on or off.
- Page 3 This manual introduces functions, installations, and operations for this PTZ camera in detail. Please read this manual carefully before installation and use. 1. Cautions 1.1 Avoid damage to the product caused by heavy pressure, strong vibration or immersion during transportation, storage and installation.
-
Page 4: Table Of Contents
Content 1. Camera Installation 1.1 Camera Introduction 1.2 Interfaces and Connection 1.3 Mounting Brackets 2. Product Overview 2.1 Model 2.2 Dimension 2.3 Accessory 2.4 RS-232 Interface 2.5 Rotary DIP Switch 2.6 Main Features 2.7 Technical Parameter 3. Remote Control 3.1 Match Code for Wireless Remote Control 3.2 Keys Introduction for IR Remote Control 3.3 Menu Introduction 4. -
Page 5: Camera Installation
1. Camera Installation 1.1 Camera Introduction Figure 1.1 Interface of SU Model 1. Camera Lens 10. Audio Input Interface (Line-in) 2. Camera Base 11. Rotary DIP Switch 3. Remote Control Receiving Indicator 12. RS232 Control Interface (input ) 4. Infrared Receiver 13. -
Page 6: Interfaces And Connection
1.2 Interfaces and Connection Figure 1.3 Wiring Diagram After power on and self-warming, the camera will automatically return to the preset 0 position if it is pre- set. The default address for the IR remote control is 1#. If the menu restored to factory defaults, the remote control default address will restore to 1#. 1.3 Mounting Brackets Notes: Ceiling or wall mounting brackets can only be mounted on template and concrete wall. - Page 7 1) Wall Mounting: pg. 6...
- Page 8 pg. 7...
- Page 9 2) Ceiling Mounting pg. 8...
- Page 10 pg. 9...
-
Page 11: Product Overview
Product Overview 2.1 Model Model No. —XXX—XXX—XX IR ---IR Remote Controller WR---Wireless Remote Controller SU---SDI、HDMI、USB3.0 Interface U3--- HDMI、USB3.0 Interface 20---20X Optical Zoom Lens 30---30X Optical Zoom Lens Figure 2.1 Product Model 2.2 Dimension pg. 10... -
Page 12: Accessory
Figure 2.2 Product Dimension 2.3 Accessory Please check below standard and optional accessories when unpacking the box. Standard Accessory Optional Accessory Power adapter Wireless Remote Control IR Remote Control Ceiling Mount RS232 Cable Wall Mount User Manual USB3.0 Cable 2.4 RS-232 Interface 1). - Page 13 IR Commander Signal IR OUT No Connection 3). RS232 (DB9) Port Definition Definition Port Data Carrier Detect Receive Data Transmit Data Data Terminal Ready System Ground Data Set Ready Request to Send Clear to Send Ring Indicator 4). VISCA networking as shown below: Camera cascade connection Camera 1 Camera 2...
-
Page 14: Rotary Dip Switch
7.IR OUT 7.OPEN 8. NC 8.OPEN 2.5 Rotary DIP Switch Dial-up video format Dial-up video format 1080P60 720P30 1080P50 720P25 1080I60 1080P59.94 1080I50 1080I59.94 720P60 720P59.94 720P50 1080P29.97 1080P30 720P29.97 video format to be set 1080P25 on the menu Note: 1. Please remember to reboot the camera to take effect when video format is switched. -
Page 15: Technical Parameter
Simultaneously output audio and video signal via HDMI, SDI, USB3.0 and LAN. LAN support POE power supply, USB3.0 support dual stream output, support YUY2, MJPEG, H.264, NV12, H.265 video code format, SDI output could up to 100M with 1080P@60fps. Multiple Audio/Video Compression Standards: Support H.264/H.265 video compression, up to 1920×1080 resolution 60 fps;... - Page 16 Focus/Aperture/ Auto/Manual/One Push Focus Electronic Shutter Exposure Mode Auto/Manual/Shutter priority/Aperture priority/brightness priority F1.8 ～ F11 CLOSE Aperture Shutter Speed 1/25～1/10000 ON/OFF OFF/ Dynamic level adjustment Video Adjustment Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve ≥50dB Input/output Interface SU Model: HDMI, SDI, LAN(POE), USB3.0(type B compatible with USB2.0) , RS232-IN, RS232-OUT, RS422 (compatible with RS485), A-IN, Rotary DIP switch, DC 12V port, Power Switch Video Interfaces...
-
Page 17: Remote Control
Working Humidity 20%~80% Dimension 181mmX115mmX149mm Weight 1.15KG Accessory Package Power Supply, RS232 Control Cable, USB3.0 cable, IR Remote Control, User Manual Optional Accessories Ceiling / Wall Mount (Extra Cost) 3. Remote Control 3.1 Match Code for Wireless Remote Control One to One Code Matching: Press the "set"... - Page 18 3. Focus Control Auto: auto focus mode Manual: manual focus mode Focus + (near):Press【FOCUS +】 key (Valid only in manual focus mode) Focus - (far): Press【FOCUS -】 key (Valid only in manual focus mode) Press and hold the keys, the action of focus will keep continue and stop as soon as the key is released.
- Page 19 Up: press Down: press Left: press Right: press Back to middle position: press“【HOME】” Press and hold the up/down/left/right key, the pan/tilt movements will keep running, from slow to fast, until it runs to the endpoint; stop as soon as the key is released. 7.
-
Page 20: Menu Introduction
9. Key Combination 1) 【#】+【#】+【#】: Clear all presets 2) 【*】+【#】+【6】: Restore factory defaults 3) 【*】+【#】+【3】: Menu set to Chinese 4) 【*】+【#】+【4】: Menu set to English 5) 【*】+【#】+【9】: Flip switch 6) 【*】+【#】+Auto: Enter aging mode 7) 【#】+【*】+Auto: Exit aging mode 8) 【*】+【#】+Manual: Restore the default user name, password, and IP address 9) 【#】+【#】+【0】: Switch the video format to 1080P60 10)【#】+【#】+【1】: Switch the video format to 1080P50... - Page 21 pg. 20...
-
Page 22: Network Configuration
4. Network Configuration 4.1 Network Connection Direct connection: Connect the camera and computer by network connecting cable. Internet connection mode: Connect the camera to Internet by Router or Switcher and user can login the device by browser web page. Note: Please do not put the power cable and network cable in places where can be easily touched, to prevent video unstable signal transmission due to poor contact of cables. -
Page 23: Ie Login
4.2 IE Login 1) Web Page Login Input the default IP address 192.168.5.163 in the browser and click Enter button to enter into Web Client login page. User can login as administrator and normal user. If login as administrator (Default User name/Password: admin), users can preview, playback, and set configuration in the Web Client;... - Page 24 Configure the parameters according to the network environment. Note: stream name live/av0 (live/ XXX) For example: The default IP address of the camera is 192.168.5.163. The way to obtain the RTSP video stream is as below rtsp://192.168.5.163:554/live/av0（av0 main stream） rtsp://192.168.5.163:554/live/av1（av1 sub stream） The default IP address of the camera is 192.168.5.163.
-
Page 25: Software Upgrading
Push RTMP stream to public network server, the stream camera must be on the public network, otherwise it will fail to connect to server. Host address: server address, which can be either a domain name or an IP address Host port: server default port number Stream name: live/test (live/ XXX) Username and password: the username and password set by the server, or leave it empty Access url：rtmp://host domain name: host port/live/xxx... -
Page 26: Serial Port Communication And Control
Log in to check the firmware version to make sure software upgrade successful. Then click "restore factory default", reboot and restore parameters to factory default (default IP 192.168.5.163, user name: admin; password admin). 5. Serial port communication and control The camera could be controlled through RS232/RS485 interface; RS232C serial parameter are as follows: Baud rate: 2400/4800/9600/115200 bits / sec;... - Page 27 8x 01 04 47 0p 0q 0r 0s pqrs: Zoom Position CAM _Zoom Focus Direct 0t 0u 0v 0w FF tuvw: Focus Position High 8x 01 04 58 01 FF Normal 8x 01 04 58 02 FF CAM_AFSensitivity Focus sensitivity Setting 8x 01 04 58 03 FF 8x 01 04 AA 00 FF Center...
- Page 28 Direct 8x 01 04 4E 00 00 0p 0q FF pq: ExpComp Position 8x 01 04 33 02 FF Back Light CAM_Back Light Compensation 8x 01 04 33 03 FF Reset 8x 01 04 21 00 FF 8x 01 04 21 02 FF WDR Level Setting CAM_WDRStrength Down...
-
Page 29: Visca Protocol Inquiry Command
2:1080i60 7:1080P25 3:1080i50 8:720P30 4:720P60 9:720P25 8x 01 06 01 VV WW 03 01 FF Down 8x 01 06 01 VV WW 03 02 FF Left 8x 01 06 01 VV WW 01 03 FF Right 8x 01 06 01 VV WW 02 03 FF Upleft 8x 01 06 01 VV WW 01 01 FF VV: Pan speed 0x01 (low speed) to 0x18... -
Page 30: Pelco-D Protocol Command List
y0 50 02 FF CAM_BacklightModeInq 8x 09 04 33 FF y0 50 03 FF CAM_WDRStrengthInq 8x 09 04 51 FF y0 50 00 00 00 0p FF p: WDR Strength CAM_NRLevel(2D) Inq 8x 09 04 53 FF y0 50 0p FF P: 2DNRLevel CAM_NRLevel(3D) Inq 8x 09 04 54 FF... -
Page 31: Pelco-P Protocol Command List
Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed Right 0xFF Address 0x00 0x02 Pan Speed Tilt Speed Upleft 0xFF Address 0x00 0x0C Pan Speed Tilt Speed Upright 0xFF Address 0x00 0x0A Pan Speed Tilt Speed... -
Page 32: Maintenance And Troubleshooting
6. Maintenance and Troubleshooting 6.1 Maintenance 1) Please power off the camera and disconnect the power adapter and socket if it’s not used for a long run. 2) Use a soft cloth or tissue to clean the camera cover. 3) Wipe it with a soft, dry cloth when cleaning the camera lens. Wipe it gently with a mild detergent if needed. Do not use strong or corrosive detergents to avoid scratching the lens and affecting the video quality. -
Page 33: Copyright Statement
7. Copyright Statement All the contents in this manual and its copyright are owned by the company. No one is allowed to imitate, copy, or translate this manual without the company’s permission. This manual contains no guarantee, standpoint expression or other implies in any form.
