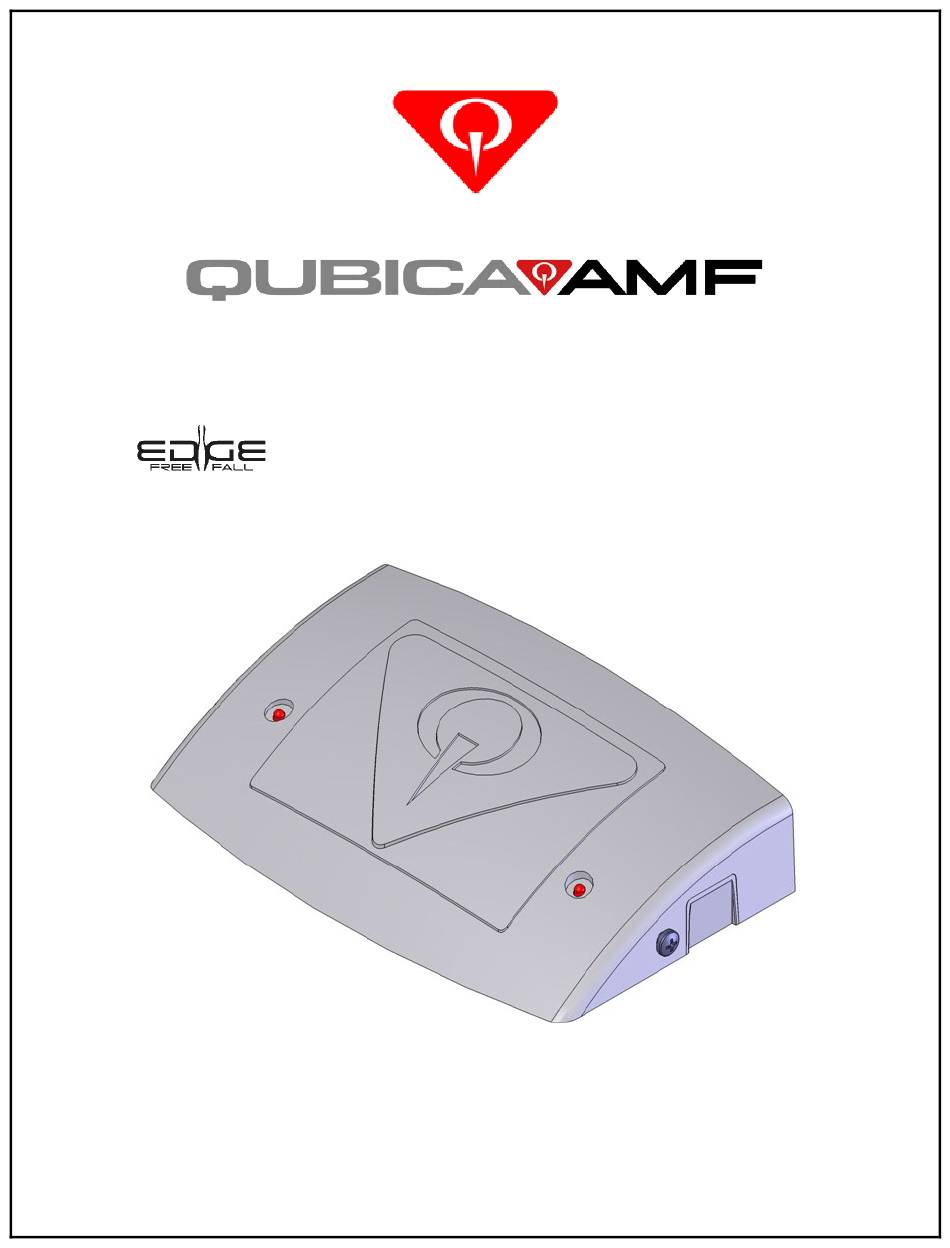

- Page 1 EDGE RADARAY Pinspotter Manual Supplement Appendix H These Original Instructions were written in English. 400-088-006-01 Rev. A June 2022...
- Page 3 This manual supersedes all previous versions of the EDGE Radaray Owner’s Manual. QubicaAMF Worldwide, LLC. reserves the right to revise and/or update this manual at any time without obligation to notify any person or entity of such revision. The document number, revision level, and date below indicate the edition of this manual.
- Page 5 Radaray Foul Detector Manual 400-088-006-01 Rev. A Summary of Changes Change No. ECR No. Rev. A 22-0001 List of Effective Pages Page Change No. Effective Date Rev. A 6/10/2022...
- Page 7 RADARAY FOUL DETECTOR MANUAL Appendix H. Radaray Foul Detector Manual 400-088-006-01 Rev. A Page 1...
-
Page 9: Table Of Contents
RADARAY FOUL DETECTOR MANUAL Contents Appendix H. Radaray Foul Detector Manual ................1 1. GENERAL INFORMATION ....................3 2. INSTALLATION AND ALIGNMENT PROCEDURE ............3 2.1. Installation ......................... 3 2.2. Alignment Procedure ....................4 2.3. Single Side Operation ....................6 3. -
Page 11: Appendix H. Radaray Foul Detector Manual
The EDGE Radaray provides a means of detecting encroachment upon the foul line on a pair of lanes. The unit employs two (2) retro-reflective photoeyes. All that is required externally are reflectors mounted across the lanes from the Radaray unit. -
Page 12: Alignment Procedure
(see Figure 1) with the approach side of the foul line and mark the location of the three mounting holes using the EDGE Radaray base as a template. Drill pilot holes as necessary for the three mounting screws. A typical pilot Figure 1 hole should be 5/32"... - Page 13 RADARAY FOUL DETECTOR MANUAL 2. Remove the Radaray cover. 3. Verify that the lenses on the sensor assembly are aligned vertically. If not, loosen the plastic nut securing the sensor to the bracket, rotate the unit until the lenses are aligned vertically, and tighten the nut.
-
Page 14: Single Side Operation
RADARAY FOUL DETECTOR MANUAL In an installation where only one detector is used (an odd number of lanes, for example), the foul detector for the unused lane can be deactivated through the chassis using the procedure mentioned in Section 3.0 Operation. 3. -
Page 15: Maintenance
1. Use a clean non-abrasive cloth to gently wipe the face of the reflectors on the reflector unit and the optics window on the EDGE Radaray base cover. 2. If gently wiping does not remove the dirt, as may be the case for oil or cleaner accumulation, a mild soap (such as dishwashing liquid soap) and water solution may be used. - Page 16 RADARAY FOUL DETECTOR MANUAL 400-088-006-01 Rev. A Page 8...
-
Page 17: Replacement Parts
RADARAY FOUL DETECTOR MANUAL 5. REPLACEMENT PARTS EDGE Radaray Foul Detector: 088-000-222-01 Item Part Number Description 088-000-062 REFLECTOR MOUNTING BRACKET 088-000-075 REFLECTOR COVER 088-000-076 FOUL DETECTOR REFLECTOR 088-000-077 SCR, PANHDPHP, #6-32 X 3/16 ZN 088-000-079 LENS, FOUL DETECTOR 088-000-087 PHPMS 1/4-20 X 0.50 BO...
