- Page 1 Web：www.minttihealth.com Tel：+86(0)791-85230171 E-mail：info@minttihealth.com ■ Version：A1 ■ No.：WI-smartho-D2-0015 ■ Edition Date: 2021/03/22 Suzhou Melodicare Medical Technology Co., Ltd.
- Page 2 Electronic Stethoscope Electronic Stethoscope User Manual...
-
Page 4: Table Of Contents
Electronic Stethoscope Contents Foreword .....................04 Instruction for Use ................13 Product Specification ................16 Maintenance and Warranty ...............18 Appendix ....................21 Packaging Information...............29 User Manual... -
Page 5: Foreword
Foreword Thank you for choosing the smartho-D2 Electronic Stethoscope. The Model smartho-D2 gives you the best experience of auscultation and wireless electronics technology which is also easy to use. It works well no matter you are using it to auscultate infant, young kid or adult;... - Page 6 Electronic Stethoscope U.S.A. Only Caution: Federal laws restrict the sale from the physician. Safety-related Labels and Symbols Description Fragile -do not drop, to reduce the impact of the stethoscope components. This side up, Do not put the stethoscope upside down. Stacking layer limit, in order to reduce the risk, do not exceed the stacking layer number.
- Page 7 Electronic Stethoscope Safety-related Labels and Symbols Description Date of manufacture Please refer to the manual BF application part Level of protection of electrical equipment housing against foreign body intrusion EC Representative CE mark Rx Only For prescription use only MR unsafe Explanation of Signal Words Indicates a dangerous situation, there might be CAUTION...
- Page 8 Electronic Stethoscope CAUTION Before using the device, please have a careful look at the user manual and follow the safety instructions. 1.External equipment intended for charging shall comply with relevant IEC standard (e.g., IEC 60601 series for medical electrical equipment). If not, please contact qualified technician or your local representatives.
- Page 9 Electronic Stethoscope 9. Avoid extreme temperatures, humidity, solvent, and grease to prolong the battery life. 10. Adapter with EMC accreditation is recommended. 11. No regular maintenance is needed. If necessary, please contact our customer services department for technical support. 12. Check before use and make sure the equipment is safe to use. 13.
- Page 10 Electronic Stethoscope Security: 1.Choose the secured network for privacy. 2.Download anti-virus software and open the system automatic patch upgrade. 3.Set the access password to ensure data security. 4.Pay attention to private data when sharing with others. 5.Delete the local data if you don't use the APP anymore. Notice To reduce the risk associated with the environment, the stethoscope and battery should be properly disposed or recycled in accordance...
- Page 11 Electronic Stethoscope EMC Compliance This device compliels with Part 15 of the FCC Rules, the operation of this device complies with following two conditions: (1)The equipment will not cause toxic interference. (2)This device must accept any interference received, including interference that may lead to poor operation. The equipment shall not be modified without the consent of our company.

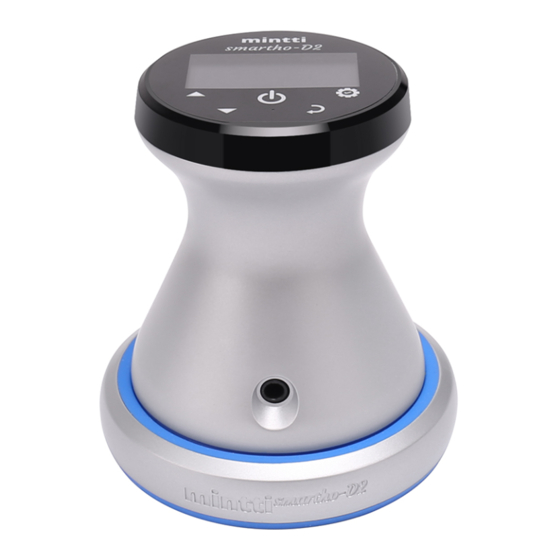

- Page 12 Function Description The smartho-D2 electronic stethoscope can be used to auscultate sounds, such as heart and lung sounds after amplifying the sound by headset. The stethoscope consists of five buttons and an OLED display screen.
-
Page 13: Instruction For Use
The blank in the battery grid indicates that the device is running out of battery and will need to be charged in time. The smartho-D2 electronic stethoscope uses the rechargeable lithium battery which can be continuously used for more than 60 hours after each full charge. - Page 14 Electronic Stethoscope When the device is running out of battery, the stethoscope can't work. Please charge in time and keep the equipment dry and clean when charging. User Manual...
- Page 15 Electronic Stethoscope 4.Mode Switch There are two kinds of auscultation modes (heart sound mode, lung sound mode), the switch of auscultation mode can be done in two ways: 1)In the main interface, press "return / mode key", the mode can be switched;...
- Page 16 Electronic Stethoscope Location when Heart sound detection Location when Lung sound detection User Manual...
-
Page 17: Product Specification
Electronic Stethoscope Product Specification ITEM Parameter Battery Specifications 3.7V/2000mAh lithium-ion polymer battery Battery Type Battery Operation Time 60 Hours Battery Use-life 300 cycles Charging Time 4 hours Technical Specifications Binaural headset Chest-piece Sound processing Digital signal processor Display Screen 1.3' OLED Low Battery Indicator Automatic Power Off Volume Control... - Page 18 Electronic Stethoscope Intuitive keypad Direct Listening Only transferred via headset Recording and Playback Not on the device itself Wireless Technology Bluetooth® at 2.4GHz Dimension Ø58mm×78mm Safety Classification Internal power supply equipment (A rechargeable 3.7V/2000mAh Electric Shock Protection Type lithium-ion polymer battery), or Input 0.2A/5VDC Electric Shock Protection Level Liquid Access Proof Level...
-
Page 19: Maintenance And Warranty
2.Service and Warranty The quality of the device is guaranteed for 12 months from the date of purchase. The smartho-D2 electronic stethoscope provides excellent service and warranty policies. If there are quality problems during the warranty period, the device will be repaired free of charge. - Page 20 Electronic Stethoscope Maintenance & Service Card Model Products name Serial No. Manufacturer Price Acceptance Date of Date of manufacture purchase Date of Maintenance Maintenance Maintenance Maintenance Instructions Cost Person & Service User Manual...
- Page 21 Electronic Stethoscope 3.Trouble Shooting Fault Type Occurrence Solutions Battery No response while Charging the Exhausted press the on/off key. device he battery indicator in the device is blank or Charging the Poor Battery the battery indicator in device the APP is 0% The charging indicator Charging icon is shown in the...
-
Page 22: Appendix
Electronic Stethoscope User Manual... - Page 23 Electronic Stethoscope User Manual...
- Page 24 Electronic Stethoscope User Manual...
- Page 25 Electronic Stethoscope User Manual...
- Page 26 The model smartho-D2 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the model smartho-D2 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment...
- Page 27 Electronic Stethoscope For transmitters rated at a maximum output power not listed above the recommended separation distance d in meter(m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.
- Page 28 Electronic Stethoscope User Manual...
- Page 29 Electronic Stethoscope User Manual...
-
Page 30: Packaging Information
Electronic Stethoscope Packaging Information Items QTY. Electronic Stethoscope Stethoscope base Headphone (Gifts) USB charger (Gifts) Electronic Stethoscope User manual APP User manual Maintenance & Service card QC Certificate User Manual... - Page 31 Suzhou Melodicare Medical Technology Co., Ltd. Address: Room 301, Building F2, No.32 Hongxi road, Suzhou high-tech zone, Jiangsu province,China. Contact: +86(0)791-85230171 E-mail: info@minttihealth.com Web: www.minttihealth.com Share Info Consultant Service LLC Repräsentanzbüro Address: Heerdter Lohweg 83, 40549 Düsseldorf Tel:0049 1767 0057022 E-mail: eu-rep@share-info.cn; info@share-info.cn...
