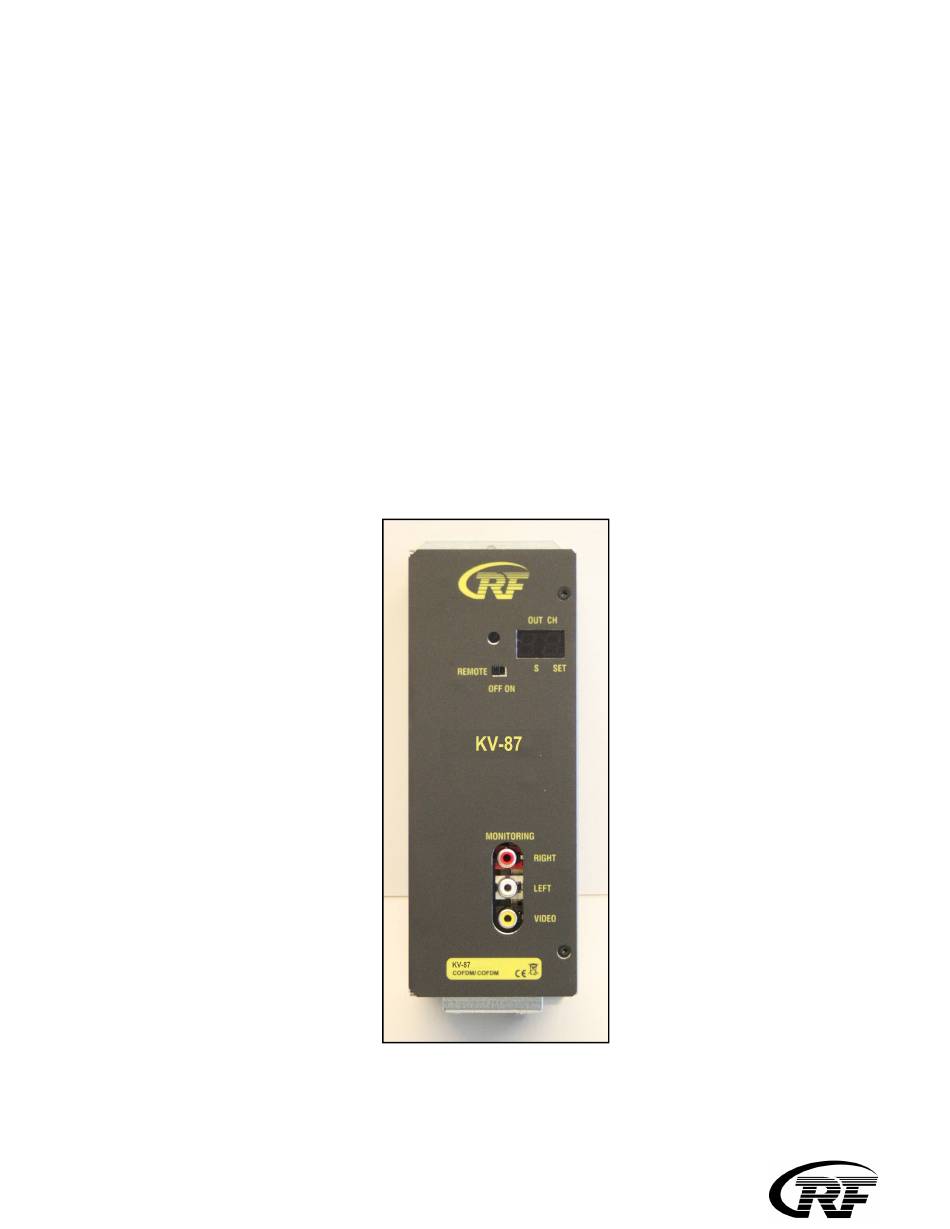

- Page 1 KV-87 DVB-T channel processor/regenerator User Manual RF-Tuote Oy, Joensuunkatu 13, 24100 Salo tel. +358-2736 6360, fax. +358-2-736 6355, info@rf-tuote.fi, www.rf-tuote.fi...
- Page 2 1. Purpose of use KV-87 regenerates incoming DVB-T mux to other frequency. This manual is valid for both single (KV- 87S) and twin (KV-87T) models. 2. Installation The connections and indications are shown in Fig 1. 1. Control switch to program a unit. The unit is programmed in “ON”...
- Page 3 To control the unit first slide front panel switch to “ON”. When programming is ready, the front panel switch must be slide to “OFF”. This will prevent accidental changes to be made while controlling other units. RF-Tuote Oy, Joensuunkatu 13, 24100 Salo tel. +358-2736 6360, fax. +358-2-736 6355, info@rf-tuote.fi, www.rf-tuote.fi...
- Page 4 (default after transponder scan). $ = not in use, - = program is not selected . To save and exit select + marked program and press OK key. RF-Tuote Oy, Joensuunkatu 13, 24100 Salo tel. +358-2736 6360, fax. +358-2-736 6355, info@rf-tuote.fi, www.rf-tuote.fi...
- Page 5 1 MHz. Adjustment range is ± 4 MHz. You can monitor the adjusted frequency in parenthesis on the same line. RF-Tuote Oy, Joensuunkatu 13, 24100 Salo tel. +358-2736 6360, fax. +358-2-736 6355, info@rf-tuote.fi, www.rf-tuote.fi...
- Page 6 Data interface 2* USB 1 Input connectors F-female 75 ohm Output connectors F-male 75 ohm Power consumption 16VDC/1,2A Dimensions W*H*D 72mm*218mm*129mm Mounting RFT-800 system or stand alone RF-Tuote Oy, Joensuunkatu 13, 24100 Salo tel. +358-2736 6360, fax. +358-2-736 6355, info@rf-tuote.fi, www.rf-tuote.fi...
