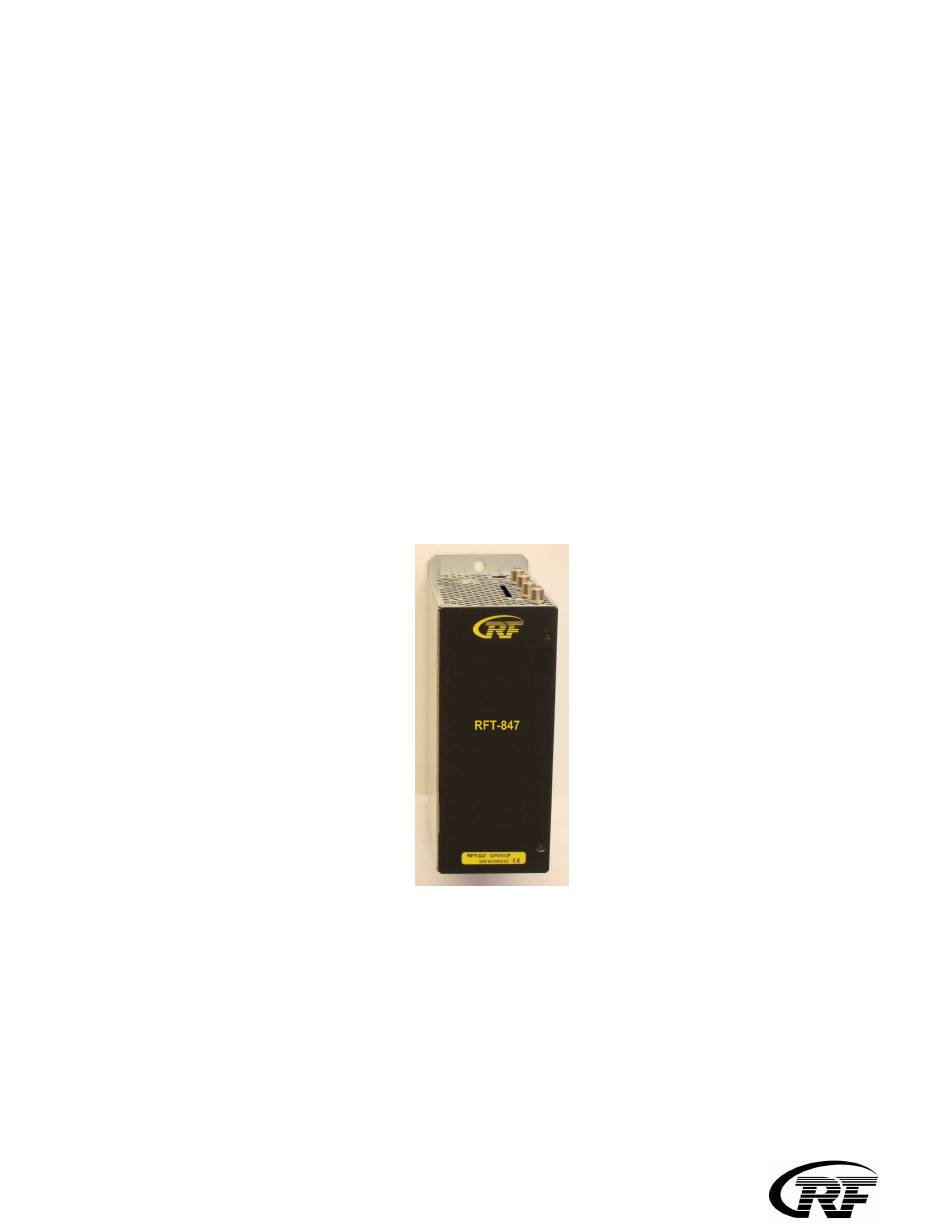

- Page 1 RFT-847CI DVB-S/S2 to IP streamer User Manual RF-Tuote Oy, Joensuunkatu 13, 24100 Salo, tel. +358-2736 6360, fax. +358-2-736 6360, info@rf-tuote.fi, www.rf-tuote.fi...
- Page 2 Maximum total current of LNB connector is 250 mA. Power supply unit is connected to the left side DC connector of RFT-847CI at the bottom of unit (7). You can loop-through DC from the right side DC connector (8) to next unit with the DC cable. Maximum eight RFT-847CI units in chain can be supplied with one power supply.
- Page 3 Option 1. Setting IP address with DHCP and accessing by using UpnP protocol 1. Connect Ethernet cable from RFT-847CI to the existing LAN with a router 2. RFT-847CI is recognised automatically by router. In some routers power must be switched OFF and again ON 3.
- Page 4 NOTE! 1. Note a dot (.) when frequency is entered in GHz. 2. When DVB-S2 (HD) programs are received, tick firstly “DVBS2” Mode” and then “Apply”. RF-Tuote Oy, Joensuunkatu 13, 24100 Salo, tel. +358-2736 6360, fax. +358-2-736 6360, info@rf-tuote.fi, www.rf-tuote.fi...
- Page 5 The settings of tuner 2 (DVB-S/S2) and tuners 3 and 4 (DVB-S only) are made similar way. 5. Streaming to network RFT-847CI devices are capable of streaming DVB-S/S2 video and audio broadcasts into your system for unicast or multicast redistribution. Streaming is enabled after the device is tuned to an DVB-S/S2 transponder.
- Page 6 IP PIDs being received. For example, if you set the system to receive 2 IP PIDs, only up to 3 broadcasts with audio and video PIDs become available. RF-Tuote Oy, Joensuunkatu 13, 24100 Salo, tel. +358-2736 6360, fax. +358-2-736 6360, info@rf-tuote.fi, www.rf-tuote.fi...
- Page 7 RFT-847CI allows you decide whether streams are to be forwarded into the LAN only when at least one listener (that is, an entity actually connected to the stream) is identified, or at all times. Making streaming conditional to the identification of listeners leads to a better use of the existing bandwidth since it ensures that the stream is actually in use.
- Page 8 To disable the OnDemand feature, return to the STREAMING/PROGRAMS/OnDemand window, select the ‘Disable OnDemand Streaming’ radio button and click the SUBMIT button. The screen returns to its original form. RF-Tuote Oy, Joensuunkatu 13, 24100 Salo, tel. +358-2736 6360, fax. +358-2-736 6360, info@rf-tuote.fi, www.rf-tuote.fi...
- Page 9 Fore more information about where you can drop off your waste equipment for recycling, please contact your local city office, your house disposal service or the shop where you purchased the product. RF-Tuote Oy, Joensuunkatu 13, 24100 Salo, tel. +358-2736 6360, fax. +358-2-736 6360, info@rf-tuote.fi, www.rf-tuote.fi...
