RSDP-805 Series
Expansion Boards for
AC-825IP
Installation Guide
Introduction
The RSDP-805 series expansion boards can be installed directly on top of the AC-825IP or installed on the wall and
fitted on a DIN rail as an expansion board with RS-485 communication to the AC-825IP OSDP/RSDP-Bus (serial bus).
When an RSDP-805 expansion board is used with Rosslare's AxTraxPro™ Access Control Management Software, the
expansion board supports SIA Open Supervised Device Protocol (OSDP V2) including OSDP-SC (secure channel).
The available RSDP-805 models are:
•
R-805
Series: 16-Output Expansion Board
•
S-805
Series: 16-Input Expansion Board
•

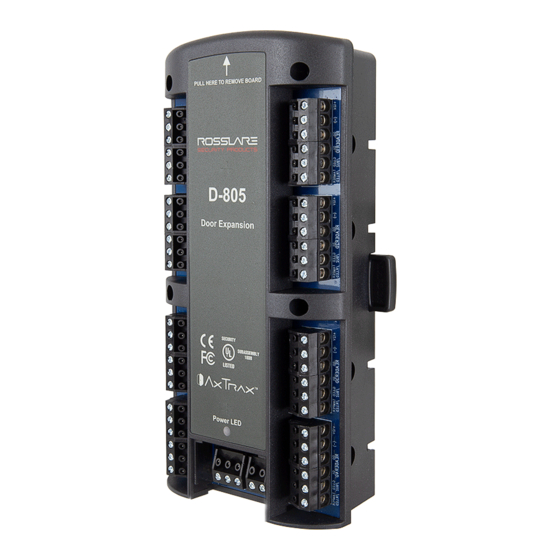

D-805
Series: 4-Door Expansion Board
•
P-805
Series: 16-Input, 8-Output Expansion Board
www.rosslaresecurity.com
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the R-805 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rosslare R-805 Series

Summary of Contents for Rosslare R-805 Series

  • Page 1 DIN rail as an expansion board with RS-485 communication to the AC-825IP OSDP/RSDP-Bus (serial bus). When an RSDP-805 expansion board is used with Rosslare’s AxTraxPro™ Access Control Management Software, the expansion board supports SIA Open Supervised Device Protocol (OSDP V2) including OSDP-SC (secure channel).

  • Page 2: Technical Specifications

    RSDP-805 Series Installation Guide R-805 Series Expansion Boards for AC-825IP Installation Guide 1. Introduction The R-805 is a 16-output expansion board for the AC-825IP access control panel. The expansion board supports 16-relays (5 A Form-C) for general purpose and security application .

  • Page 3: Wiring Instructions

    RSDP-805 Series Installation Guide 3. Wiring Instructions To wire the R-805 expansion board: 1. Connect the RS-485 communication terminal block to the OSDP/RSDP-bus (serial bus) on the AC-825IP panel. For more information, see the AC-825IP Hardware Installation and User Manual. 2.
  • Page 4 RSDP-805 Series Installation Guide S-805 Series Expansion Boards for AC-825IP Installation Guide 1. Introduction The S-805 is a 16-input expansion board for the AC-825IP access control panel. The expansion board supports 16-supervised inputs for general purpose and security application . 2.
  • Page 5 RSDP-805 Series Installation Guide 3. Wiring Instructions To wire the S-805 expansion board: 1. Connect the RS-485 communication terminal block to the OSDP/RSDP-bus (serial bus) on the AC-825IP panel. For more information, see the AC-825IP Hardware Installation and User Manual. 2.
  • Page 6 RSDP-805 Series Installation Guide D-805 Series Expansion Boards for AC-825IP Installation Guide 1. Introduction The D-805 is a 4-door expansion board for the AC-825IP access control panel. The expansion board supports four Wiegand readers and four doors with two supervised inputs, including one relay output for each door.
  • Page 7 RSDP-805 Series Installation Guide 3. Wiring Instructions The reader terminal supports the reader's two data lines. For Wiegand readers, these are data lines D0 and D1. For Clock & Data readers, D0 is the DATA line and D1 is the CLOCK line. There is also support for a tamper signal input from the reader and for one LED control output to the reader.
  • Page 8 RSDP-805 Series Installation Guide 3. Turn on power. 4. Wait three seconds. In 30 seconds or less set all four DIP switches to OFF. The Transmit Data (TX) LED light blinks red. www.rosslaresecurity.com...
  • Page 9 RSDP-805 Series Installation Guide P-805 Series Expansion Boards for AC-825IP Installation Guide 1. Introduction The P-805 is a 16-Input, 8-Output expansion board for the AC-825IP access control panel. The expansion board supports 16-supervised inputs and 8 relays (5 A Form-C) for general purpose and security application .
  • Page 10 RSDP-805 Series Installation Guide 3. Wiring Instructions To wire the P-805 expansion board: 1. Connect the RS-485 communication terminal block to the OSDP/RSDP-bus (serial bus) on the AC-825IP panel. For more information, see the AC-825IP Hardware Installation and User Manual. 2.

  • Page 11: Limited Warranty

    All technical specifications weights, measures and colors shown, are best approximations. Rosslare can not be held responsible and assumes no legal liability for the accuracy or completeness of the information provided. Rosslare reserves the right to change, delete, or otherwise modify the information, which is represented, at any time, without any prior notice.
