Introduction

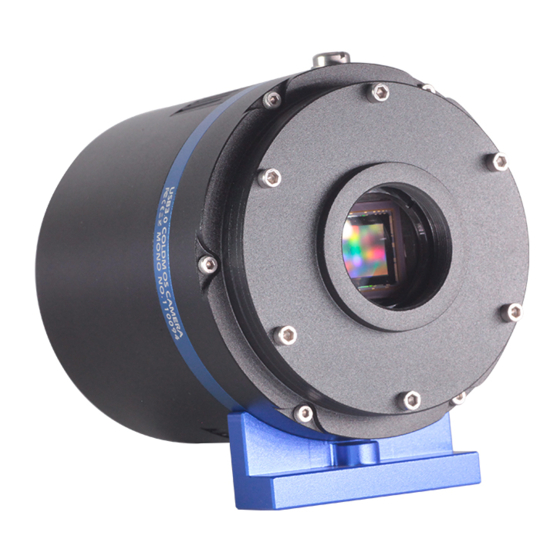

QHY1253 has IMX253 Global shutter CMOS sensor with the special Polarize version. Monochrome and color version are
also available. Compared with QHY550P, 1253P has a bigger sensor. It has important applications in gemstone, geology
and material science, biology science.
QHY1253 has build-in two stage TEC cooler. It can cooled the sensor to -35C below ambient and reduce the dark current,
which greatly improving the dark signal detect performance. Especially for detect the tiny difference of the polarize light.
This is necessary for the astronomy, life science and optical lab.
Polarize Sensor
With the on-pixel four direction polarize filter, A ploarize sensor can capture the polarize image at only one exposure. No
need change the polarize filter for three times. Polarize detector can be used in industry image to detect the scratch,
transmissible object and getting the no-reflection pictures.
Since the polarizer is formed during the semiconductor process, form and formulation of polarizer, uniformity, mass
productivity and durability are excellent compared to conventional polarization sensors. Furthermore, The Polarization
sensor is covered with an anti-reflection layer which helps to reduce reflectance and avoids poor flare and ghost
characteristics.
Global Shutter
Unlike the rolling shutter technology used in most CMOS cameras, a global shutter guarantees that the exposure time for
the whole image area is uniform, beginning and ending at exactly the same time. This type of shutter is ideal for high
precision applications. For high speed moving object and the atmospheric agitation the global shutter can generate
undisborted imaging and realizes high picture quality.
Specifications
Model
COMS Sensor
Sensor Type
Sensor Size
Effective Pixels
Pixel Size
Effective Pixel Area
Shutter Type
Fullwell
Readout Noise
Dynamic Range
Dark Current
Full Frame Rate
Curves
QHY1253
IMX253
Polarize
13.91mm x 10.34mm
12MP
3.45um x 3.45um
4032 (H) x 2998 (V)
Electric Global Shutter
9.8Ke-
1.17e –
74dB
TBD
14.5fps @ 8Bit
10fps @16Bit
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for QHYCCD QHY1253
Summary of Contents for QHYCCD QHY1253
- Page 1 QHY1253 has build-in two stage TEC cooler. It can cooled the sensor to -35C below ambient and reduce the dark current, which greatly improving the dark signal detect performance. Especially for detect the tiny difference of the polarize light.
-
Page 3: Mechanical Dimensions
Mechanical Dimensions... -
Page 5: Input Voltage Requirements
EZCAP_QT , which is developed by QHYCCD and can be used in QHY devices tests, and management of updates. So even if you won’t use EZCAP_QT for capturing, we suggest you install it. - Page 6 EZCAP_QT EZCAP_QT is software developed by QHYCCD. This software has basic capture functions for QHYCCD deep sky cameras. Run EZCAP_QT. Click “Connect” in Menu -> Camera. If the camera is successfully connected, the title line of EZCAP_QT will display the camera firmware version and the camera ID as shown below.
- Page 7 If you have already started the SharpCap software before connecting the camera, in order to open the camera, click on the “camera” in the menu bar and then select the device. Offset adjustment. When you completely block the camera (i.e., like taking a dark frame) you may find that the image is not really zero.
- Page 8 N.I.N.A Open N.I.N.A. – Nighttime Imaging ‘N’ Astronomy. Drive connections via ASCOM.
- Page 9 BroadCast WDM Camera Driver QHYCCD BroadCast WDM Camera is a broadcast driver that supports QHYCCD cameras with video broadcast function, which can meet the needs of customers to send video images to other target software. For example, use sharpcap to connect a WDM-enabled camera, and the sharpcap display video image can be sent to other WDM-supported software for display, which is suitable for video online broadcast applications.
- Page 10 The installation process is over, right-click the computer to find the device manager, and check that the image device name is QHYCCD BroadCast WDM Camera, which means the installation is successful. Activate the function: Usually sharpcap is used to connect the camera as the broadcasting terminal. After connecting the camera, you need to...
- Page 11 Common supporting software (ie, broadcast receiver) includes: UFOCAPTURE, HANDYAVI, QQ video functions, etc. AMcap test effect chart: HANDYAVI test effect chart:...
- Page 12 Suitable for the following camera with a global shutter. Advanced Control Tools Download: Use Sharpcap software as the capture software. QHYCCD Advnanced tools as the External trigger mode setting software. 1.Run SharpCAP, You will see the live video appearing 2.Run advanced control tools. Check on the “SDKAPI_MODE” Click “Coonect”...
- Page 13 Mode 1 Hardware External Trigger. The exposure time is depent on the external pulse width In the Trig Input Souce trigger input source drop-down selection, select Trig Input Pin Direct. The meaning is to trigger the input source as the external trigger input port of the camera (opto-coupled isolated, RCA gold plug); Select one in Trig Controller Source (the marquee doesn’t make sense for this mode, so choose one) Press the TRIG MODE ON button.
- Page 14 between the start and end exposure commands. Just follow the settings below. Once set up, click TRIG MODE ON to feed the instruction. Then click on the Software Register Trig Test button to observe the shooting. To modify the exposure time, you only need to modify the value sits in the exposure time box, instead of clicking TRIG MODE ON, just click the RegisterSoftware Trig Test button.
- Page 15 Mode 6: Out-of-software trigger, sequence shooting Similar to Mode 5, the trigger source is entered from external hardware to software control. After pressing the diagram to set up, click TRIG MODE ON, the camera waits, at this time click on the Software Register Trig Test button, after the start signal, you can see the start of continuous shooting.
