QHYCCD QHY90A User Manual

All-in-one coldmos astronomy camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

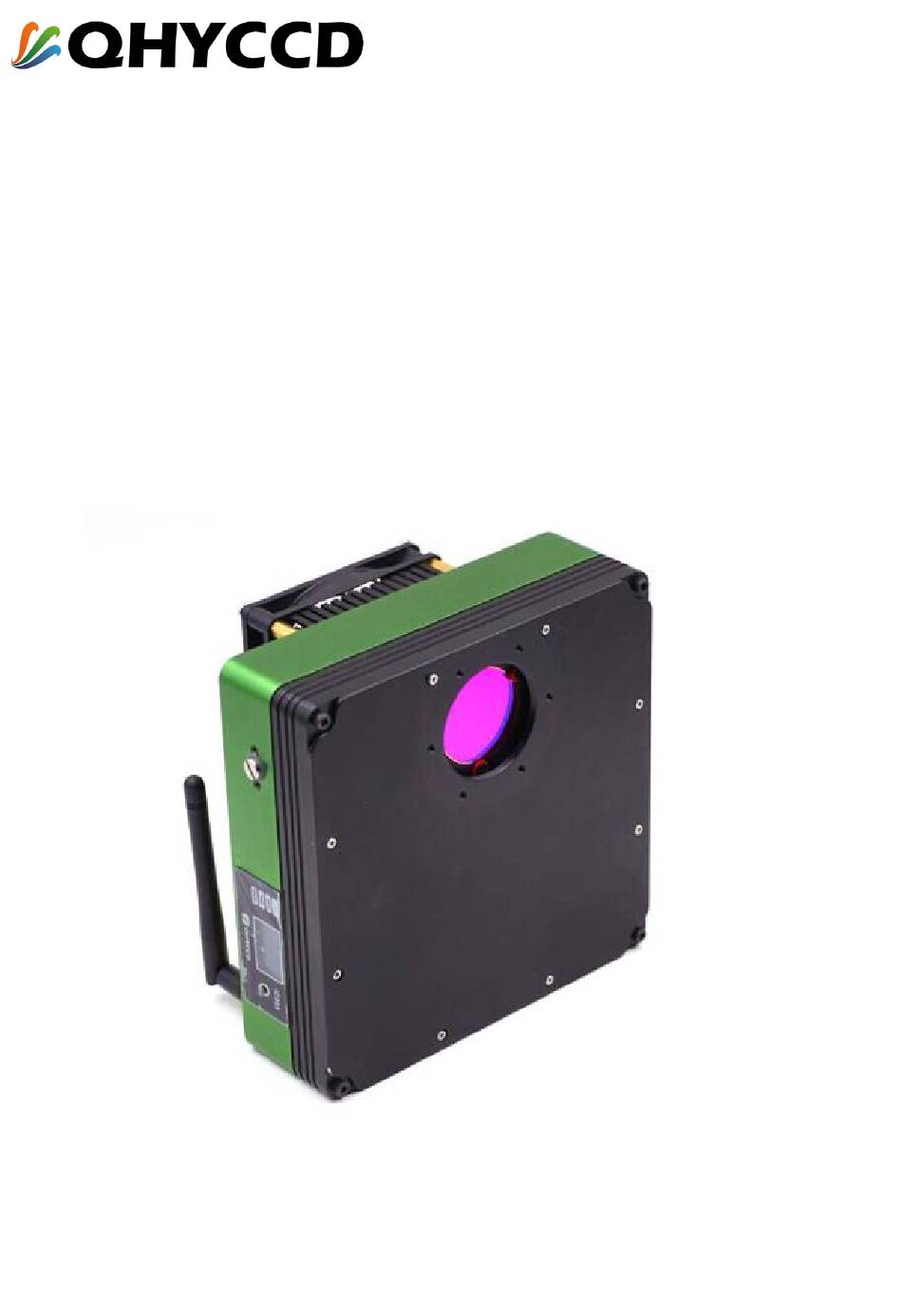

User Manual
REV 1.0
QHY90A
All-in-one COLDMOS Astronomy Camera

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QHY90A and is the answer not in the manual?

Questions and answers

Related Manuals for QHYCCD QHY90A

Summary of Contents for QHYCCD QHY90A

  • Page 1 User Manual REV 1.0 QHY90A All-in-one COLDMOS Astronomy Camera...

  • Page 2: Table Of Contents

    Contents PACKAGE CONTENTS ....................3 SOFTWARE INSTALLATION ..................4 FILTER INSTALLATION ....................5 USE QHY90A WITH ASCOM ..................6 USE QHY90A IN EZCAP_QT ..................13 USE QHY90A IN FIRECAPTURE................16 PERIPHERAL PORTS ON QHY90A ................. 17 FAQ ........................... 19 OHY90A MECHANICAL SIZE ................... 25...

  • Page 3: Package Contents

    QHY90A 01 Package Contents Item Quantity 12V power cable 12V car power adapter USB cable Grounding cable M42 to 2 inch adapter ring Drying tube Desiccant USB hub bypass board Screw driver for M2 hexagon screw Screw driver for M3 hexagon screw...

  • Page 4: Software Installation

    12V extension cable because it has self-locking function. Note that there are two power ports on QHY90A, and these two ports are connected in parallel, so you can either one of these two as power input port and use the other one as a power output port for other devices that need 12V power supply. Turn the switch on.

  • Page 5: Filter Installation

    Install the top cap. Now we have finished installing filters, we are going to introduce how to use QHY90A in EZCAP_QT, MAXIMDL, and Sequence Generator Pro.

  • Page 6: Use Qhy90A With Ascom

    QHY90A 04 Use QHY90A with ASCOM You can connect many software that support ASCOM. Currently QHY90A only supports normal ASCOM connection and does not support the ASCOM VIDEO connection. Please note that QHY90A always transfers maximum bit depth by ASCOM to make the best DSO imaging performance. The image format is 16bit width and patch zero on low bit.
  • Page 7 QHY90A Normally, you can set the gain=15 and offset=132 to start. Keep clicking "Okay" to return to Camera Control window 4. The following instructions are going to show you how to configure the built-in filter wheel in MAXIMDL. Click "Setup Filter" in the Camera Control window...
  • Page 8 QHY90A...
  • Page 9 QHY90A 4. The following instructions are going to show you how to configure the built-in filter wheel in MAXIMDL. Click "Setup Filter" in the Camera Control window...
  • Page 10 After you connect your gears and configure Sequence Generator Pro properly, you can go to sleep and see images in the morning. To use QHY90A in Sequence Generator Pro, you can follow the instructions listed below. Open sequencer by clicking the button as shown in the picture below...
  • Page 11 QHY90A Click the “wrench” icon to set up your camera Select “QHYCCD FilterWheel”, click the “Chain” icon to connect...
  • Page 12 Similarly, click the “wrench” icon to set up your filter wheel Note that before you select QHYCCD Filter wheel as the filter and click the red connect button, you should also make sure you've downloaded and installed the ASCOM Filters Plug for the built-in filter wheel, you've plugged in the 12V power supply cable, and the initialization of filter wheel has been finished.

  • Page 13: Use Qhy90A In Ezcap_Qt

    You can change the language of the softwre at menu->language. 4. Before you click "connect", make sure you can see QHY90A in the device manager on Windows. Sometimes if you click "connect", you may see the warning shown in the picture below.
  • Page 14 QHY90A You can select which filter you are going to use by changing the position of filter wheel as shown in the following picture. You can use the preview tab to do preview. And use the focus tools to do focus. Then use the...
  • Page 15 QHY90A 8. In EZCAP_QT there is a planner for image tasking. You can capture a series images by using the table below.

  • Page 16: Use Qhy90A In Firecapture

    By default, it will be installed in the "Documents" folder. After it was installed successfully, navigate to "Document folder", and you will find its installation folder as shown below. Enter that folder and run "FireCapture.exe", then select QHYCCD camera. And after the loading, you will see the image on FireCapture like shown below.

  • Page 17: Peripheral Ports On Qhy90A

    Keep the camera in good contact with the earth is the premise that the entire shooting system can work safely and properly. So QHY90A provides a grounding port. This port is connected to the GND on the PCB in the camera, and the GND is also the cathode of the 12V power supply. The grounding wire is included in the package, you can use it to connect the camera to other equipment (Metal case of the equatorial mount or metal case of PC) so that they have common ground.
  • Page 18 Caution: Never connect the grounding port to any electrical socket or outlet, otherwise, electrical shock may happen. Note that the camera used in the picture above isn’t QHY90A, it is QHY16803A. They have the same peripheral ports. 12V power ports These two ports are connected in parallel, so you can either one of these two as power input port and use the other one as a power output port for other devices that need 12V power supply.

  • Page 19: Faq

    Besides, during the process of cleaning, you may scratch the CCD, and you may damage the internal circuit when you open the camera. QHYCCD provides CCD clean service. The cleaning fee is 100 USD per time and it doesn't include the shipping cost.
  • Page 20 QHY90A You will see the power PCB board. Remove the two screw of the power PCB board Remove the three cable carefully.
  • Page 21 QHY90A Please use a film to protect the CCD chamber optic window. The CCD chamber is connecting with the silicone gel tube socket by a rubber pipe. Remove the two screw for the silicone gel socket. Remove the four screw for the CCD chamber. There is totally eight screws for the CCD chamber. Only...
  • Page 22 QHY90A Now the CCD chamber is removed. The CCD sensor can be clean here. The CCD sensor has the AR coating. Please clean it carefully by using the lens paper or another professional tools (like the DLSR sensor clean tools)
  • Page 23 5. How to protect the cooler in QHY90A? The cooler in QHY90A can lower the CCD temperature to a value that's almost 40 degrees centigrade below the ambient temperature. So you need to be careful to avoid thermal shock, which refers to when the cooler's temperature rises or fall dramatically, the cooler is subjected to strong internal stress due to contraction principle.
  • Page 24 You can use QHY5L-II-M as the guider. Please pay attention that you may remove the front part of QHY5L- II-M to get the back focus short enough for this combination of OAG-S and QHY90A. If you are using other guider. We are not guarantee the back focus is suitable for them due to the very short back focus of the QHY90A.

  • Page 25: Ohy90A Mechanical Size

    QHY90A 09 OHY90A Mechanical Size Mechanical drawing without OAG-S...
  • Page 26 QHY90A...
  • Page 27 QHY90A Mechanical drawing with OAG-S...
  • Page 28 QHY90A...

  • Page 29: Specifications

    QHY90A 10 Specifications CCD Sensor KAF8300 Mono, Standard Grade Effective Pixels 3358(H)*2536(V) 8.6mega pixels Pixel Size 5.4um*5.4um Effective Area 17.96mm(H)*13.52mm(V), Typical 4/3inch Readout Type Full Frame CCD, Progressive Scan FullWell >25.5ke 16bit Readout Noise Typical 9 e- System Gain QE Peak...
