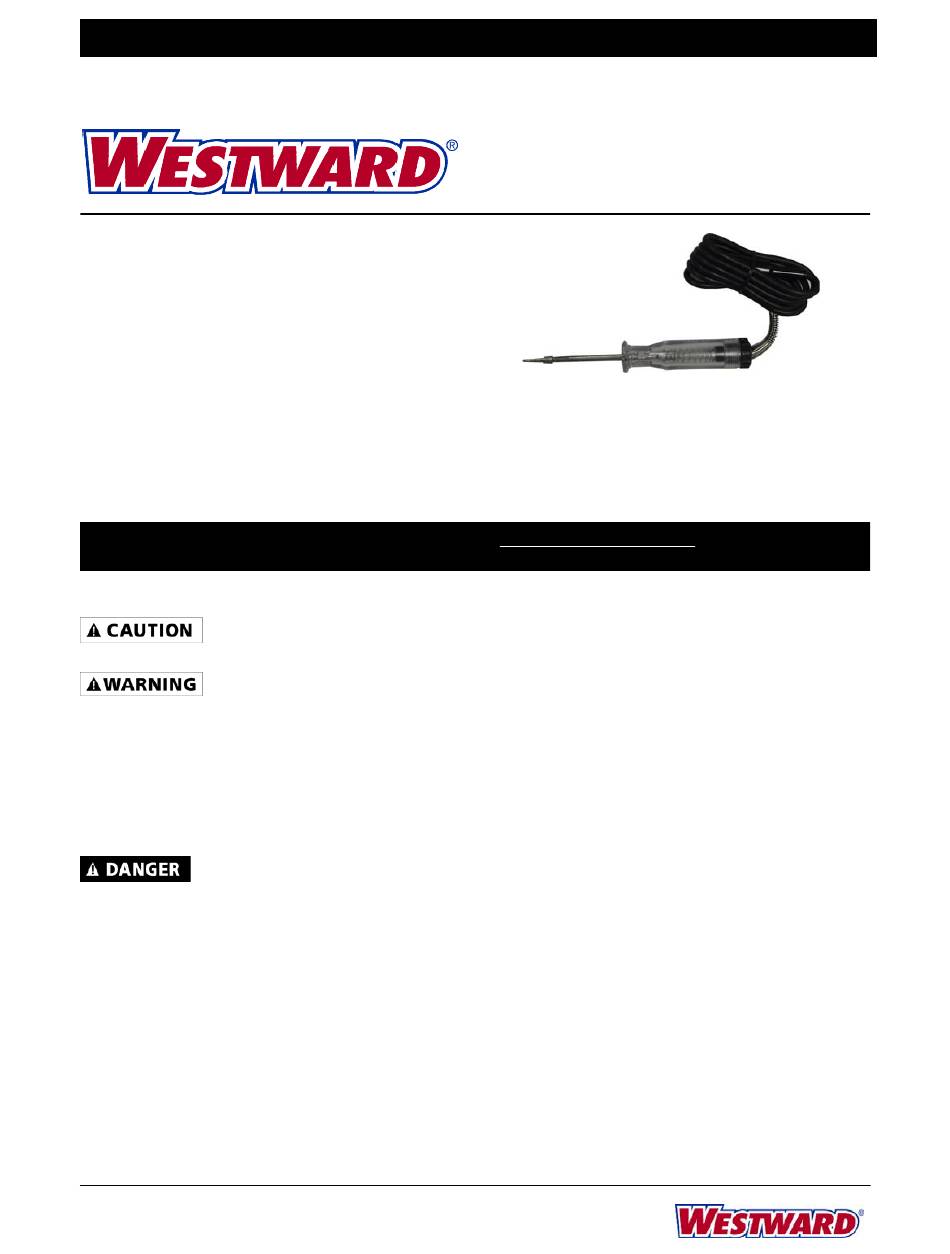

Operating Instructions and Parts Manual
Please read and save these instructions. Read through this owner's manual carefully before using product. Protect
yourself and others by observing all safety information, warnings, and cautions. Failure to comply with instructions could
result in personal injury and/or damage to product or property. Please retain instructions for future reference.
Description

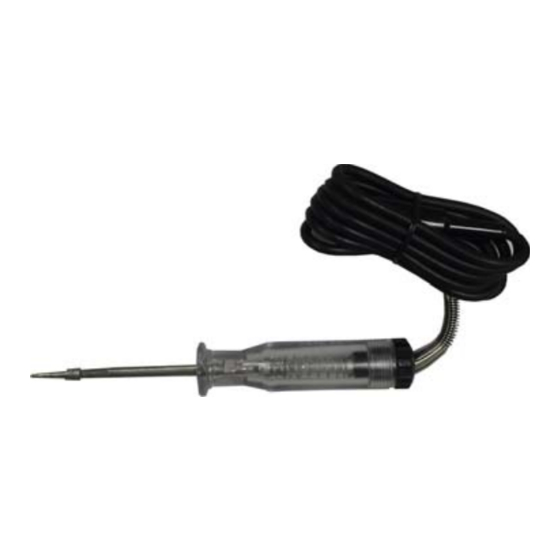

Easy to use screwdriver probe continuity tester for 6, 12,
and 34 volt systems. This self-powered electrical tester can
be used to detect power, ground and find shorts and breaks
in low voltage circuits. The handle will light up if the circuit
is complete. If the handle fails to light up, the circuit is faulty.
Unpacking
After unpacking unit, inspect carefully for any damage that
may have occurred during transit. Check for loose, missing, or damaged parts. Shipping damage claim must be filed
with carrier.
Specifications and Dimensions
Model
Display
1EKN5
Bulb
Wear safety glasses and gloves
that have heat protection.
Study, understand, and follow all
instructions before using this tool. Intended use
is to detect power, ground, and find shorts and
breaks in low voltage electrical circuits. No
alterations of this product are allowed. Do not
use this tool for any purpose other than that for
which it was intended. Failure to heed any one or
combination of these warnings may result in
severe personal injury.
Do not use to test spark plugs and
systems with 110 volts or higher.
Types of Application
•
Wiring, connectors, switches, and relays
•
Fuses and fusible links
•
Circuit Breakers
•
Switches
•
Distributors
•
Junction Blocks
•
Armatures
•
Condensers
•
Coils and diodes
•
Breaker points
•
Appliance cords
THRXXX
Printed in Taiwan
08/07
Voltage Protection
(Yes/No)
No
PROFESSIONAL CIRCUIT
TESTER
Dimensions (Inch)
Length
Diameter
Height
10.75"
N/A
Operation
Before using this tool verify that the voltage does not
exceed 110V or higher.
1.
Remove bulb tip by twisting and install 2 AA
batteries (1.5V). Tester is ready for use.
2.
Turn off power source on the item that is being
tested.
3.
Attach the alligator clip securely to ground wire.
LOCAL LIVE WIRE
4.
Use the probe to pierce the wire insulation. If
the tester lights up the wire is live.
BROKEN WIRE
5.
Use the probe to pierce the wire insulation.
Probe along the wire until tester fails to light up.
This is where the circuit is broken.
TEST FUSES
6.
Use the probe to make contact with the fuse
terminal closets to load. If the tester lights up
the fuse is good.
TEST LIGHT SOCKETS
7.
Connect alligator clip to socket housing and use
the probe to touch the base of the socket. If
tester lights up the circuit is good.
1EKN8
Weight
(Lbs)
1.5"
0.221LBS
