Westward 22YM05 Operating Instructions Manual

Operating Instructions Manual
Please read and save these instructions. Read through this owner's manual carefully before using product. Protect
yourself and others by observing all safety information, warnings, and cautions. Failure to comply with instructions could
result in personal injury and/or damage to product or property. Please retain instructions for future reference.
Description

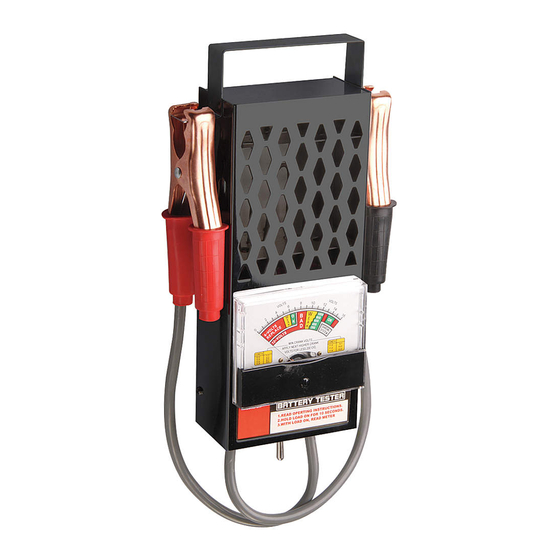

The battery tester is designed to test the state and condition of 6 and 12 volt batteries.
Before using this product, read this instruction thoroughly and follow the instructions carefully, with particular
emphasis on the safety precautions. This ensures your own safety and that of others around you.
Unpacking
After unpacking unit, inspect carefully
for any damage that may have
occurred during transit. Check for
loose, missing, or damaged parts.
Shipping damage claim must be filed
with carrier.
With the meter disconnected from
the battery, make sure the gauge
needle is set to zero, using the screw
on the front of the gauge as
necessary.
Specifications and Dimensions
Model Battery
22YM05 6V/12V
General Safety Information
IMPORTANT: Before using this product, read this
instruction thoroughly and follow the instructions
carefully, with particular emphasis on the safety
precautions. This ensures your own safety and that of
others around you.
201308
Printed in CHINA
08/13
Type Load Range
Analog 50-100 Amps
Battery Load Tester
Dimensions (Inches)
Length Width
12-7/8 6-1/2
Always avoid creating sparks in
a battery-charging environment, as this could
cause fire, or even an explosion. Similarly, it is
vital to avoid creating sparks when testing a
battery installed in a motor vehicle as spikes in
the system could cause serious damage to the
vehicle electronic circuitry.
22YM05
Weight
Height (Lbs)
3-1/2 3.31
