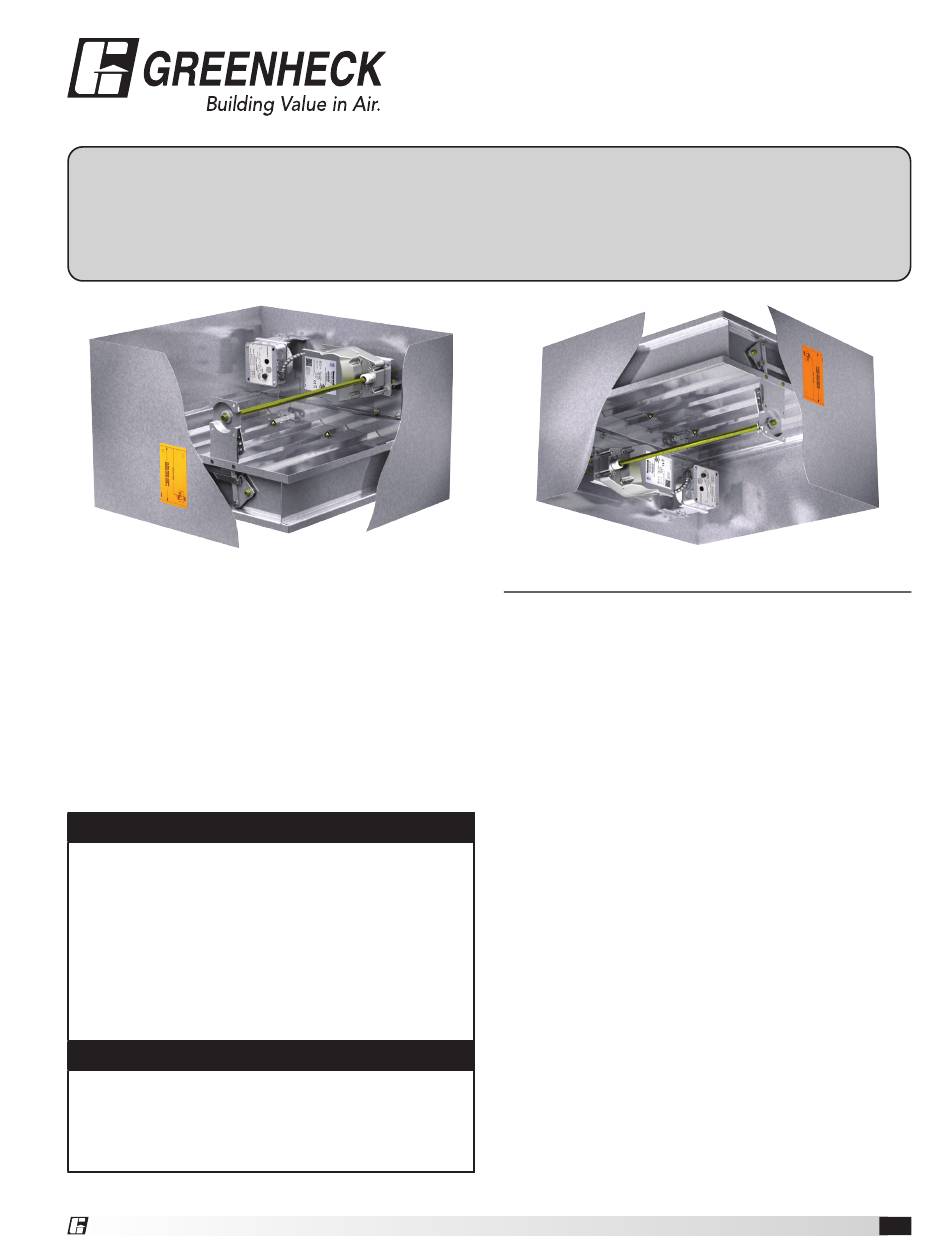

Installation, Operation and Maintenance Manual
Please read and save these instructions for future reference. Read carefully before attempting to assemble, install,
operate or maintain the product described. Protect yourself and others by observing all safety information. Failure
to comply with these instructions will result in voiding of the product warranty and may result in personal injury
and/or property damage.
These instructions cover the installation of CFSD-XXX
leakage rated combination fire smoke dampers with
factory installed actuators and sleeves in corridor ceiling
applications. These instructions meet the requirements
of UL 555 and UL 555S.
There are three different configurations available for
this application. Configurations 1 and 2 apply when
the fire rated ceiling is also the finished ceiling and the
damper is installed behind a grille, register, or diffuser.
Configuration 3 applies when the fire rated ceiling is
above the finished ceiling and the grille, register or
diffuser is somewhere below the corridor damper.
Receiving and Handling
Upon receiving dampers, check for both obvious
and hidden damage. If damage is found, record all
necessary information on the bill of lading and file
a claim with the final carrier. Check to be sure that
all parts of the shipment, including accessories, are
accounted for.
Dampers must be kept dry and clean. Indoor storage
and protection from dirt, dust, and the weather is
highly recommended. Do not store at temperatures in
excess of 100°F (38°C).
SAFETY WARNING
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, injury
or death. Read the installation, operating, and
maintenance instructions thoroughly before installing
or servicing this equipment.
®
Corridor Ceiling Dampers
(with factory installed sleeve and actuator

Table of Contents

General Information . . . . . . . . . . . . . . . . . . 2
Installation Supplements. . . . . . . . . . . . . . . . 2
Electrical Guidelines . . . . . . . . . . . . . . . . . . 2
Pre-Installation Guidelines . . . . . . . . . . . . . . . 2
Preparation of Openings . . . . . . . . . . . . . . . . 3
and Ceiling Openings . . . . . . . . . . . . . . . . . 3
Maximum Assembly Table . . . . . . . . . . . . . . . 3
Openings . . . . . . . . . . . . . . . . . . . . . . . . 4
Duct to Sleeve Connection . . . . . . . . . . . . . . 5
Connections . . . . . . . . . . . . . . . . . . . . . . 7
Damper Maintenance . . . . . . . . . . . . . . . . . 8
Damper Troubleshooting . . . . . . . . . . . . . . . . 8
Document 461335
CFSD-xxx Series
CFSD Series
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CFSD Series and is the answer not in the manual?

Questions and answers

Related Manuals for Greenheck CFSD Series

Summary of Contents for Greenheck CFSD Series

  • Page 1: Table Of Contents

    Do not store at temperatures in excess of 100°F (38°C). SAFETY WARNING Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment. CFSD Series ®...

  • Page 2: General Information

    Verify power before wiring actuator. provided for damper inspection and servicing. Greenheck is not responsible for any damage to, or Where it is not possible to achieve sufficient size failure of the unit caused by incorrect field wiring. To...

  • Page 3: Preparation Of Openings

    These are total clearances (ignoring fastener heads) and do not need to be spaced equally around the damper. Maximum Assembly Table Wood Stud Assembly Horizontal Mount Maximum Single Damper Model Section Size (inches) CFSD-211, -212 24 x 24 CFSD Series ®...

  • Page 4: Securing The Damper/Sleeve Assembly To Ceiling Openings

    Opening lined with UL rated 5/8 in. gypsum board (wood studs only) Retaining angle (See Section 3) Configuration 3 Actuator in airstream or out of airstream Actuator can be installed either above or below ceiling construction CFSD Series ®...

  • Page 5: Duct To Sleeve Connection

    • Ducts larger than 22 in. (558 mm) wide (or dia.) up to and including 36 in. (914 mm) wide (or dia.) shall have five Type B screws. Wall or Floo Type R and O factory furnished duct collars qualify Sleeve as breakaway connections. Duct Damper Type R, O Figure 8: Type R and O Transition CFSD Series ®...
  • Page 6 Spot weld or Tek screw per manufacturer instructions TDC or TDF TDC or TDF manufacturer instructions Connection Connection Butyl Gasket Damper Sleeve Butyl Gasket Damper Sleeve Figure 13: Metal cleat method Figure 14: Screw method CFSD Series ® Metal cleat...

  • Page 7: Actuator And Temperature Response Device Connections

    1.0 Amps, 24 Vac 1.5 Amps, 24 Vdc Temperature Limit: 165° F (standard primary sensor) 212° F (optional primary sensor) Figure 18: TOR 250° F (secondary sensor )* 350º F (secondary sensor)* * based on actuator temperature rating CFSD Series ®...

  • Page 8: Damper Maintenance

    As a result of our commitment to continuous improvement, Greenheck reserves the right to change specifications without notice. Product warranties can be found online at Greenheck.com, either on the specific product page or in the literature section of the website at Greenheck.com/Resources/Library/Literature.
