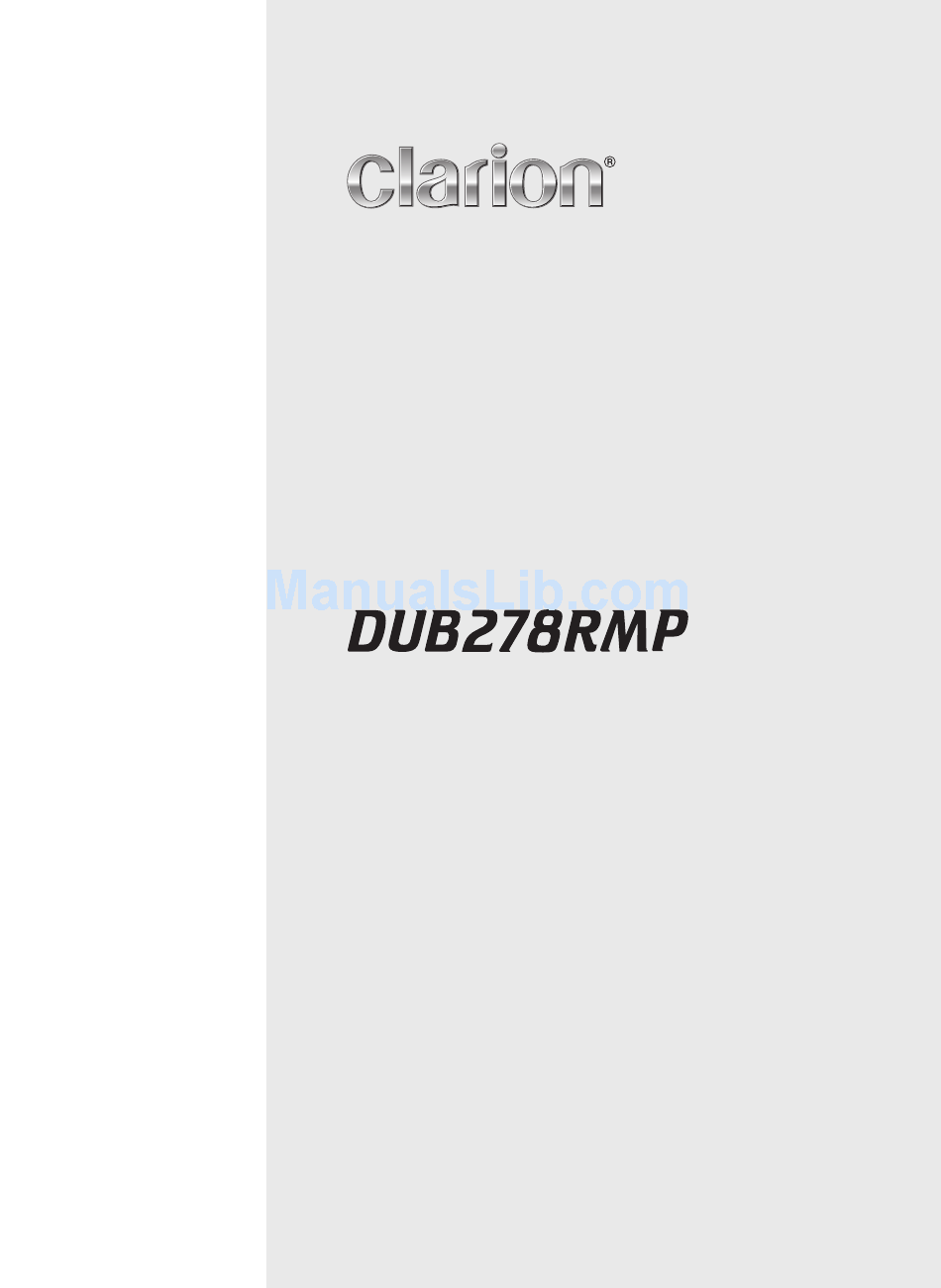

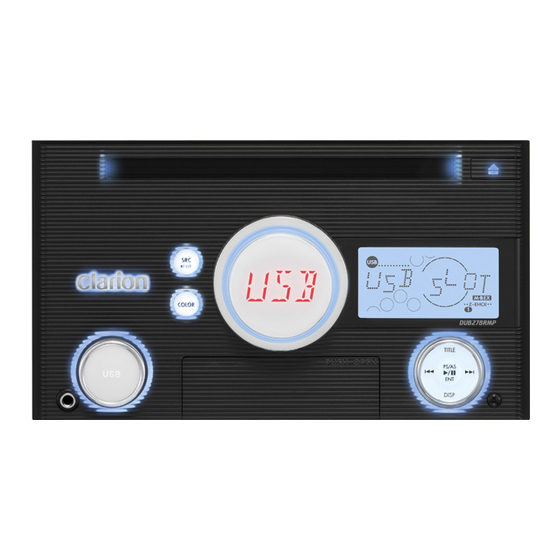

  • Page 1 Owner’s manual Mode d’emploi Bedienungsanleitung Istruzioni per l’uso Gebruiksaanwijzing Manual de instrucciones Bruksanvisning Manual de instruções CD/USB/MP3/WMA RECEIVER RECEPTEUR CD/USB/MP3/WMA CD/USB/MP3/WMA RECEIVER RICEVITORE CD/USB/MP3/WMA CD/USB/MP3/WMA ONTVANGER RECEPTOR PARA CD/USB/MP3/WMA CD/USB/MP3/WMA MOTTAGARE RECEPTOR PARA CD/USB/MP3/WMA...
  • Page 3 Indvendigt i apparatet er anbragt den her gengivne advarselsmækning, som advarer imod at foretage sådanne indgreb i apparatet, at man kan komme til at udsaætte sig for laserstråling. DUB278RMP OBS! Apparaten innehåller laserkomponenten som avger laserstrålning överstigande gränsen för laserklass 1.

  • Page 4: Table Of Contents

    CD to skip. 3. This unit is applicable for on-road 4 wheel ve- hicle purpose only. Use for tractor, fork truck, bulldozer, off road vehicle, 2 or 3 wheel motor bicycle, marine boat or other special purpose vehicle is not appropriate. DUB278RMP...

  • Page 5: Handling Compact Discs

    Bitte ausbreiten und die nächste Seite lesen. / Volgende pagina uitvouwen en doorlezen a.u.b. / Glöm inte att vika ut och läsa nästa sida. / DUB278RMP Note on compact discs mark. Never stick labels on the surface of the compact disc or mark the surface with a pencil or pen.

  • Page 6: Controls

    Observera: Vik ut denna sida för att kunna se figurerna över bilstereons framsida medan du läser de olika kapitlen. Nota: Certifique-se de abrir esta página e consulte os diagramas frontais conforme realiza a leitura de cada capítulo. DUB278RMP / HAUPTGERÄT...

  • Page 7: Nomenclature

    Track No./Play time Folder No./Track No. Title Display Clock Display Play time... DUB278RMP ] button Perform preset scan while in the Radio mode. Press and hold the button for 2 seconds or longer to perform auto store. Play or pause a track while in the CD/USB mode.
  • Page 8 RDS ADJ mode. [ TA ] button Use the button to set the TA ( Traffic Announcement ) standby mode. [ DIRECT ] buttons Store a station into memory or recall it directly while in the Radio mode. DUB278RMP...

  • Page 9: Display Items

    Display Items LCD Screen In extreme cold, the screen movement may slow down and the screen may darken, but this is normal. The screen will recover when it returns to normal temperature. DUB278RMP...

  • Page 10: Remote Control

    Use only the designated battery. When replacing the battery, insert properly, with + /- polarities oriented correctly. Do not subject battery to heat, or dispose of in fire or water. Do not attempt to disassemble the battery. Dispose of used batteries properly. DUB278RMP...

  • Page 11: Functions Of Remote Control Unit Buttons

    [ PTY ] PTY stand by mode on and off. ∗ Some of the corresponding buttons on the main unit and remote control unit have different functions. DUB278RMP CD-DA MP3/WMA and USB Play the first track. Top play. Move tracks up and down.

  • Page 12: Operations

    1. Push the [ PUSH OPEN ] cover to open the flip down cover that consists of the following buttons: [ DIRECT ] [ BAND ] [ A-M ] [ Z-EHCR ] [ ADJ ] [ TA ] Clock display Main display Clock Display DUB278RMP...

  • Page 13: Adjusting The Balance

    flipping down, you can close the cover back and push 2 sides of the cover to return to normal condi- tion. DUB278RMP Audio mode adjustments 1. Press the [ A-M ] button to select the Adjustment mode. The mode switches as follows each time...

  • Page 14: Aux Function

    “Selecting AUX IN sensitivity” on page 27 for details. Remove the audio jack from AUX mode will revert to Radio mode automati- cally. [ AUX ] input during DUB278RMP...

  • Page 15: Radio Operations

    Broadcast stations with good reception sensitivity are selected. ∗ When local seeking starts, “LO” appears in the display. DUB278RMP Manual tuning There are 2 ways available: Quick tuning and step tuning. When you are in the step Tuning mode, the fre- quency changes one step at a time.

  • Page 16: Rds Operations

    3. Turn the [ ROTARY ] knob to select “ON” or “OFF”. “AF” in the display lights and AF function turns on. OFF: “AF” in the display goes off and AF function turns off. ] button to select “AF”. DUB278RMP...
  • Page 17 [ DIRECT ] button of the same number. The unit receives a local station on the same network. DUB278RMP TA ( Traffic Announcement ) In the TA standby mode, when a traffic announce- ment broadcast starts, the traffic announcement broadcast is received as top priority regardless of the Function mode so you can listen to it.

  • Page 18: Selecting Pty

    ∗ The PTY select mode is cancelled automatically 7 seconds after a PTY is selected. ] button to select “PTY-S ] button. PTY item ENGLISH Contents News News Info Information Pop M Pop Music Sport Sport Classics Serious Classical Music Easy Listening Music Easy M DUB278RMP...

  • Page 19: Pty Preset Memory

    The 29 types of PTY below can be selected. 5. If you press and hold any one of the [ DIRECT ] buttons for 2 seconds or longer, the selected PTY is stored into that preset channel memo- DUB278RMP PTY item ENGLISH Contents...

  • Page 20: Cd/Mp3/Wma Operations

    Rip settings, unclick the check box for COPY PROTECT MUSIC. Then, reconstruct files. Notes: Personally constructed WMA files are used at your own responsibility. Disabling DRM can be done if the file is ripped from ” logo are ® COPY MUSIC DUB278RMP...

  • Page 21: Folder Structure

    ( including an exten- sion ) . 3. Do not affix a name to a file inside a folder having the same name. DUB278RMP Folder structure 1. A disc with a folder having more than 8 hierar- chical levels will be impossible.

  • Page 22: Ejecting The Cd

    15 seconds and this will not automatically switch to CD/MP3/WMA mode. For CD/MP3/WMA playback, please refer to “CD/USB Common Operations”. Radio... indicator will lit on if the mark and CD-ROMs ] button, then the CD will be eject- DUB278RMP...

  • Page 23: Usb Operations

    USB memory devices. For USB memory devices compatibility, please consult Clarion dealer for more information. ∗ Devices compatible with “USB Mass Stor- age Class” can be used merely by con- necting to the host device, without need for special drivers or application software.

  • Page 24: Connecting A Usb Memory Device

    Remove the USB memory device from the port during USB mode, the unit will revert to Radio indica- mode automatically. Alternately, user can remove USB memory de- vice at any mode. Note: It is safe to remove USB memory device during track playing. Radio... DUB278RMP...

  • Page 25: Cd/Usb Common Operations

    “NO SONG NAME” for Title Tag Notes: For MP3, supports ID3 Tags V2.4/2.3/2.2/1.1/1.0. The MP3 player decodes each file ID3 TAG ver 2 by default, if ID3 TAG ver 2 is unavailable, ID3 TAG ver 1 will be decoded. In the case of album Tags for WMA, the information written into the extension header is displayed.

  • Page 26: Selecting A Track

    ] button for taining MP3/WMA files and start playing from the first track in the folder. 1. Press the [ F-UP ] button to move the next folder. 2. Press the [ F-DN ] button to move the previous folder. DUB278RMP...

  • Page 27: Top Function

    ∗ All scan play starts from the next track after the track currently being played. DUB278RMP Repeat play CD-DA, MP3/WMA : This function allows you to play the current track repeatedly.

  • Page 28: Operations Common To Each Mode

    ∗ The factory default setting is “OFF”. 2-1. Select “TEL-SW”. 3-1. Turn the [ ROTARY ] knob to select the set- ting. Each time you turn the [ ROTARY ] knob, the setting changes in the following order: MUTE DUB278RMP...
  • Page 29 This unit requires hands-free kit that supports [ AUX ] input as a cellular phone audio input. Please con- sult your local authorized Clarion dealer for more information on the handsfree kit offered. If connecting a hands-free kit, please ensure the setting is ON to receive the telephone audio through the system.
  • Page 30 Operations Common to Each Mode COLOR INDIGO-BLUE SURF-BLUE SILKY-WHITE AQUA-GREEN FRESH-GREEN LEAF-GREEN WARM-AMBER PASSION-RED VIVID-PINK PALE-PINK DARK-VIOLET PURE-PURPLE U-COLOR1 U-COLOR2 U-COLOR3 DUB278RMP...
  • Page 31 Nothing happens when button are pressed. Display is not accurate. No sound heard. DUB278RMP Cause Fuse is blown. Replace with a fuse of the same amperage. If the fuse blows again, consult your store of purchase.

  • Page 32: Troubleshooting

    Use ISO9660 level 1, 2 or JOLIET or Romeo rect. file system. Disable DRM as describe in the chapter “To dis- The song may be copy protected ( DRM ) . able DRM ( Digital Rights Management ) ” Measure DUB278RMP...

  • Page 33: Troubleshooting

    USB memory device con- nector is in bad condi- tion. Compatibility issue Please consult your Clarion dealer for USB memory device compatibility. The USB memory de- Reinsert the USB memory device with the vice connector may be correct direction.

  • Page 34: Error Displays

    System: Compact disc audio system Usable Discs: Compact disc Frequency Response: 10 Hz to 20 kHz (± 3 dB ) Signal-to-Noise Ratio: 85 dB ( 1 kHz ) IHF-A Dynamic Range: 80 dB ( 1 kHz ) Harmonic Distortion: 0.01% Measure Measure DUB278RMP...
  • Page 35 Specifications and design are subject to change without notice for further improvement. Please make sure when connecting external power amplifier, that you properly, to the car chassis, ground the amplifier. If this is not done, severe damage to the source unit may happen. DUB278RMP...
  • Page 36 Clarion Co., Ltd. All Rights Reserved. Copyright © 2007: Clarion Co., Ltd. PE-2973E Printed in Malaysia / Imprimé en Malaisie / Gedruckt in Malaysia / Stampato in Malaysia 280-8528-00 Gedrukt in Maleisi / Impreso en Malasia / Tryckt i Malaysia /...
