Sítio dos Barrabés, Armazém Nave Y, Caixa Postal 908-Z, 8150-016 São Brás de Alportel - PORTUGAL | Tel: +351 289 896 560
Email: info@globalfire-equipment.com | Technical Support: techs@globalfire-equipment.com | www.globalfire-equipment.com
MATERIAL / COLOUR
WEIGHT: HOUSING
PROTECTION / AIR SAMPLING TUBE
DIMENSIONS: HOUSING
DIMENSIONS: VENTURI PIPE
UG-7/STD-H

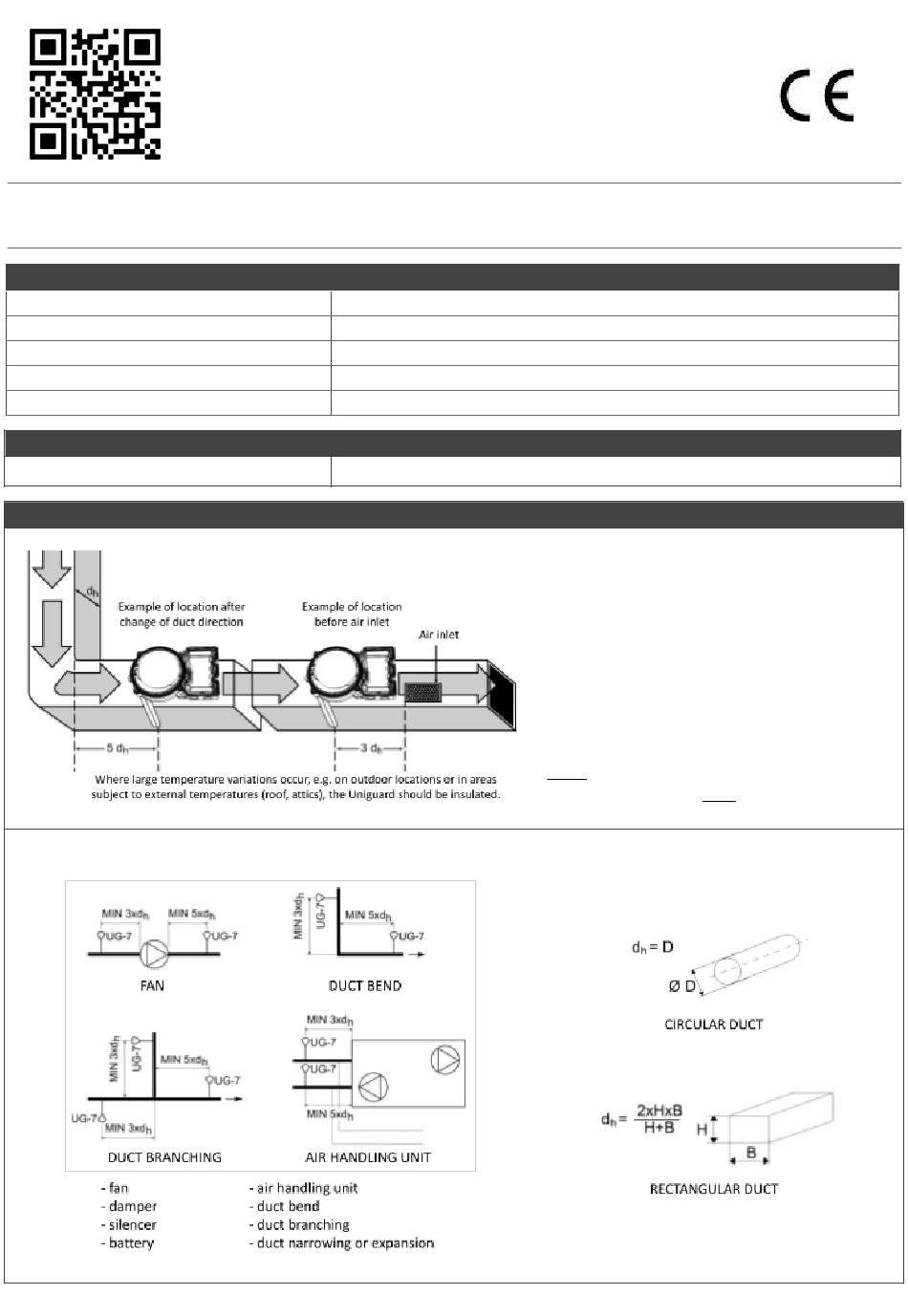

Example of installation at sources of interference
UG-7/STD-H
SMOKE DETECTOR
HOUSING HIGH LID
GLOBAL FIRE EQUIPMENT S.A.
TECHNICAL SPECIFICATIONS
ABS Plastic/Aluminium / Grey
880 g
IP54 / Aluminium
279mm x 165mm x (103mm + venturi pipe length)
0,6m, 1,5m or 2,8m - 1.6m extension tube available
ORDER CODE
SMOKE DETECTOR HOUSING HIGH LID
MOUNTING AND POSITIONING
The Uniguard should be installed according to the
drawing below. The Uniguard can be installed on any side
of the duct. N.B. Rectangular ducts: In order to gain
maximum air sampling coverage, install the Uniguard on
the shortest side of a rectangular duct. We recommend
that the Uniguard is mounted at an equal distance from
heating, cooling, or humidity devices, and similar to the
siting for flow monitors.
A distance of 3 times the duct diameter should be left
before a damper, filter or change of the duct direction,
and 5 times the diameter after these devices.
Hydraulic diameter
MANUAL 220829
MADE IN PORTUGAL - EU
Advertisement
Table of Contents
Related Manuals for Global Fire Equipment UG-7/STD-H
Summary of Contents for Global Fire Equipment UG-7/STD-H
- Page 1 HOUSING HIGH LID MADE IN PORTUGAL - EU GLOBAL FIRE EQUIPMENT S.A. Sítio dos Barrabés, Armazém Nave Y, Caixa Postal 908-Z, 8150-016 São Brás de Alportel - PORTUGAL | Tel: +351 289 896 560 Email: info@globalfire-equipment.com | Technical Support: techs@globalfire-equipment.com | www.globalfire-equipment.com...
- Page 2 INSTALLATION Drill a hole in the duct: • Without mounting bracket, ø 38mm. • With mounting bracket, ø 51mm. 1. Measure the diameter of the duct. 2. Shorten the pipe, if necessary. The pipe should penetrate approx. 90% of the width of the duct. 3.
- Page 3 TEST OF DETECTOR Check the detector with smoke detector tester RDP-300. • Move the "test hole plug" to the side and briefly release a spray of aerosol. When alarming the LED lits red on the detector and when service alarming (contamination) it lits green.
- Page 4 MOUNTING IN PLACES WHERE POSSIBLE CONDENSATION PROBLEMS COULD ARISE, E.G. COLD ATTICS OR OUTDOOR MOUNTING BRACKET FOR CIRCULAR OR INSULATED RECTANGULAR DUCTS Using the mounting bracket the diameter of the duct can be as small as 100mm. The mounting bracket is supplied with a rubber gasket and sealing sleeve. FINAL CHECKS ●...
