Summary of Contents for INSE E3 PLUS
-
Page 2: Table Of Contents
All the pictures in the manual are for the reference only, please refer to the actual object in the box. Table of contents Safety Notes ---------------------------------------------------------- 1 Product Components -------------------------------------------- 4 Host and accessories ---------------------------------------------- 4 Illustration of Host --------------------------------------------------- 5 Carriage components ---------------------------------------------- 5 Charging stand... -
Page 3: Safety Notes
Safety Notes Please read the following safety notes carefully and abide by all routine preventive measures for safety. Please read this manual carefully. Please keep this manual well. This product may be damaged due to any operation inconformity to this manual. Expressions Symbols &... - Page 4 Safety Notes It is forbidden to damage and process the Do not touch. power cable. Do not put a weight on the power When the product is operating and sweeping, cable or heat, drag or bend the power cable please pay attention to the safety of babies, forcefully.
- Page 5 Safety Notes Notes on using rechargeable batteries Danger Do not use other battery adapters. Neither short-circuit nor damage the battery Otherwise, leakage, heating or cracking rudely. may be caused. Otherwise, leakage, heating or cracking may be caused. Prohibition Prohibition Do not deliver or save it together with metal Do not throw the battery into fire or heat it up.
-
Page 6: Product Components
Product Components Host and accessories Quantity Name Host 1 pcs. Charging stand 1 pcs. Remote control (without batteries) 1 pcs. Power adapter 1 pcs. Cleaning tools 1 pcs. User's manual 1 pcs. Side brush 1 pair. Carriage components 1 pcs. Focus... -
Page 7: Illustration Of Host

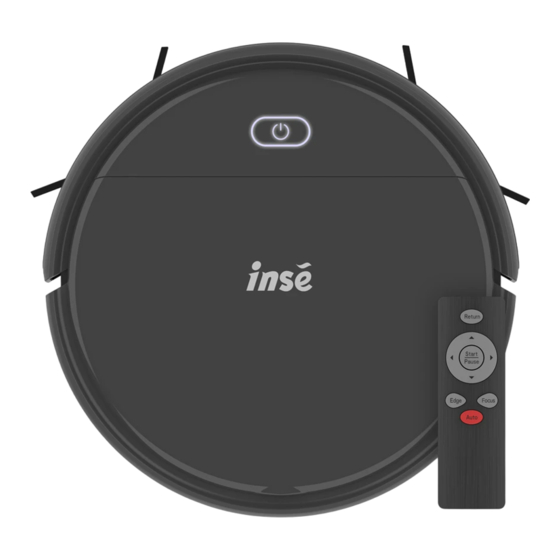

Product Components Illustration of Host Panel Bumper Infrared signal receiving window Rotating cover Automatic-charging Universal wheel electrode slice R side brush L side brush Suction channel Battery cover L side wheel R side wheel Bottom case Scrapper Trash box Rotating cover Pre filter Trash box High-efficient filter... -
Page 8: Charging Stand
Product Components Charging stand Signal communication window Indicator Power adapter port Recharging electrode slice Remote control Key description 1"Start/Pause" button In standby mode, press this button to start automatic cleaning. In sleep mode, press this key to enter standby mode from sleep mode. In working mode, press this button to stop cleaning. - Page 9 Product Components 3. "Auto" button In standby mode or working mode, press this button and the machine will start auto cleaning. 4. "Focus" button In standby mode or working mode, press this button and the machine will start focus cleaning. Focus 5.
-
Page 10: Product Operation
Product Operation 1. Quick Start Guide 1> Place charging stand against a wall, and remove all obstacles within 1 meter on the left and right and 2 meters in front of the charging stand, as shown in the picture on the right, then connect the adapter and power supply, then the power indicator on the charging stand is always light. -
Page 11: Start/Pause/Hibernation
Product Operation 4>. Automatic charging A. When the battery level is too low, the machine will automatically start looking for a charging dock to charge. B. Please make sure that the charging base is in a power-on state and there are as few obstacles as possible, otherwise the machine cannot find the charging base for charging. -
Page 12: Carriage Components
Product Operation 3>. Hibernation If the machine is not operated within 20~25 seconds, the machine will automatically enter sleep mode ! Note: If you do not use the machine for a long time, please turn off the power of the machine. 3. -
Page 13: Cleaning Mode
Product Operation 4. Cleaning mode 1>. Edge cleaning In standby mode or working mode, press the "Edge" button on the remote control, and the machine will start cleaning along the largest edge of the room. 2>. Focus cleaning Place the machine next to the dusty area, press the "Focus"... -
Page 14: Product Maintenance
Product maintenance 1. Side brush cleaning If the side brush becomes dirty, please clean it with water and dry it before using; if the side brush is damaged and cannot work normally, please replace it. ! Notice: When replacing the side brush, please correspond to the "L" and "R" marks on the side brush, as well as the "L"... -
Page 15: Cleaning Cloth Maintenance
Product maintenance 3. Cleaning cloth maintenance A. Take off the cleaning cloth, rinse and spread it out to dry; as shown in Figure J. ! Notes: * Please do not use the dripping cloth directly to avoid product from slipping during work. -
Page 16: Common Faults
Common faults Warning code table If the machine has some common failures, the corresponding phenomena and solutions are as follows. Common faults and solutions Phenomena Fault Solution Normal Steady green Charge Flashing green The red light flashes Ground inspection Place the host back on quickly and the buzzer abnormal the ground... -
Page 17: Battery Replacement
Battery replacement Battery replacement Battery cover Battery cover screw Figure 2 Figure 3 Figure 1 Figure 4 Figure 5 Long press the machine cleaning button to turn off it (Figure 1). Use a screwdriver to remove the screws from battery cover at the bottom of the machine (Figure 2). -
Page 18: Product Parameters
Product parameters Classification Item Parameter Diameter 290mm Structure Net weight 1.8kg Voltage Electronics 11.1V Automatic charging Charging type Manual charging Edge cleaning, Cleaning focus cleaning, Cleaning mode parameters auto cleaning Charging time About 180-300 minutes Host key type Mechanical keys Note: The storage environment temperature range of this product is 0~40°C... - Page 19 Product Hazardous Substance Restriction Labeling Table Name and content table of hazardous substances SJ/T 11364-2014 Hazardous substance Chromiu Polybro Polybrom minated inated Name of part (Cr(VI)) biphenyl diphenyl Plumbu Hydrargy Cadmiu s (PBB) ethers m (Pb) rum (Hg) m (Cd) (PBDE) Metal 〇...
