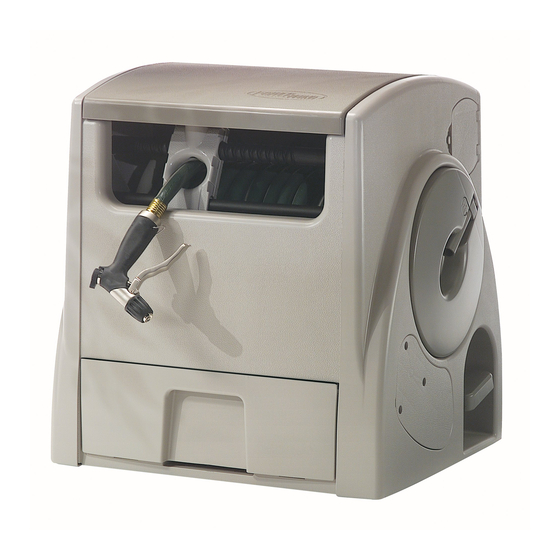

PW100 Powerwind Hose Reel
100' Hose Capacity
OWNER'S MANUAL
PW100 Dévidoir auto-enrouleur d'une
capacité de 30 m
MANUEL DU PROPRIÉTAIRE
Tools Required
Outil requis
Herramientas necesarias
P
hillips Head Screwdriver
Tournevis cruciforme Phillips
KEY INFORMATION YOU SHOULD KNOW BEFORE USING THIS PRODUCT
• Charge battery for 12 - 14 hours before using your hose reel.
• Read all instructions prior to use.
INFORMATION IMPORTANTE À SAVOIR AVANT D'UTILISER CET ARTICLE
• Chargez la batterie pendant 12 à 14 heures avant d'utiliser le dévidoir de tuyau.
• Lisez toutes les instructions avant de l'utiliser.
© 2022 Suncast Corporation, Batavia, IL
0360843E
