Clarion DB266MP Owner's Manual

Clarion cd/mp3 receiver owner's manual
Hide thumbs Also See for DB266MP:
Table of Contents

Advertisement

Quick Links

See also: Service Manual

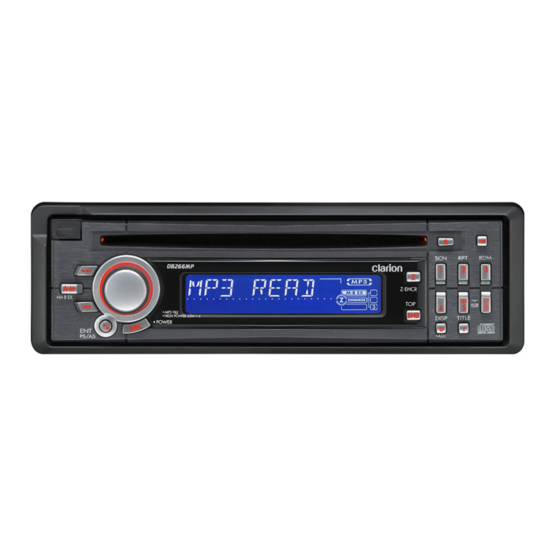

DB266MP
CD/MP3 RECEIVER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DB266MP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Clarion DB266MP

Summary of Contents for Clarion DB266MP

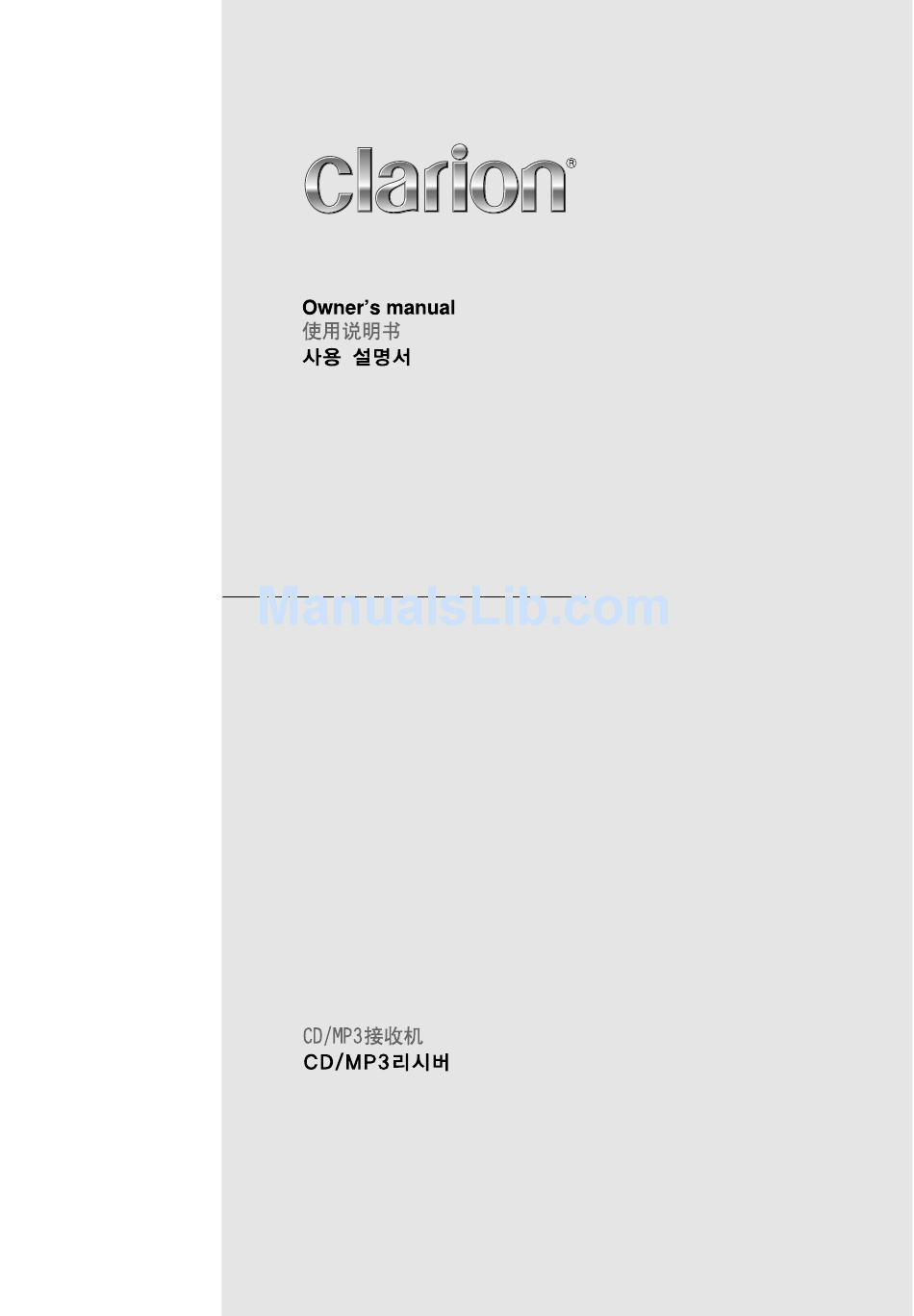

  • Page 1 DB266MP CD/MP3 RECEIVER...

  • Page 2: Table Of Contents

    Thank you for purchasing this Clarion product. ∗ Please read this owner’s manual in its entirety before operating this equipment. ∗ After reading this manual, be sure to keep it in a handy place (e.g., glove compartment). ∗ Check the contents of the enclosed warranty card and keep it carefully with this manual.

  • Page 3: Controls

    Operation status indication Frequency, Clock, etc. are displays Preset channel indication (1 to 6) Stereo indication Manual indication Folder indication Scan indication DB266MP [ CD SLOT ] [ BND ] [ SENSOR ] Random indication Repeat indication [ DIRECT ]...

  • Page 4: Button Terminology

    [T] button • Switches MP3 TITLE display. • Press and hold for 1 second to scroll display data. DB266MP [D] button • Switch the display indication (Main display, clock display). MP3 FUNCTION-DISPLAY SELECTION • Display changes in the following order: Track No.

  • Page 5: Precautions

    3. This unit uses a precision mechanism. Even in the event that trouble arises, never open the case, disassemble the unit, or lubricate the rotating parts. Bottom View of Source Unit DB266MP...

  • Page 6: Handling Compact Discs

    LCD Screen In extreme cold, the screen movement may slow down and the screen may darken, but this is normal. The screen will recover when it returns to normal temperature. DB266MP • Do not use compact discs that have large mark.

  • Page 7: Dcp (Detachable Control Panel)

    Be careful not to damage it by pressing on it with fingernails, pens, screwdrivers, etc. DCP Rear Panel Main Unit Front connector Note: • If the DCP is dirty, wipe off the dirt with a soft, dry cloth only. Main unit connector DB266MP...

  • Page 8: Remote Control

    • Do not subject battery to heat, or dispose of in fire or water. Do not attempt to disassemble the battery. • Dispose of used batteries properly. DB266MP Signal transmitter [ BND ] ], [ [ DISP ]...

  • Page 9: Functions Of Remote Control Unit Buttons

    When pressed and held for 1 second or longer: Folder scan. Repeat play. Repeat play. When pressed and held for 1 second or longer: Folder repeat. Random play. Random play. When pressed and held for 1 second or longer: Folder random. DB266MP...

  • Page 10: Operations

    ∗ The volume level is from 0 (minimum) to 33 (maximum). DB266MP Note:Be sure to read this chapter referring to the front diagrams of chapter “2. CONTROLS” on page 3 (unfold). Setting the Z-Enhancer This unit are provided with 3 types of sound tone effects stored in memory.

  • Page 11: Switching Display

    2 seconds. 3. Turn the [ROTARY] knob clockwise to turn on the auto-scroll or counterclockwise to turn off the auto-scroll. 4. If auto-scroll setting is set to on, the MP3 title will scroll continuously in MP3 title display mode. DB266MP...

  • Page 12: Radio Mode Operations

    3. Press and hold one of the [DIRECT] button for 2 seconds or longer to store the current station into preset memory. DB266MP Auto store function (Automatic Station Store) 1. Press [BND] button to select the desired band FM1, FM2, FM3 or AM.

  • Page 13: Cd Mode Operations

    At Audio CD press the [RDM] button, the “RDM” is lit & display shows “TRK RDM”, then the entire tracks on the disc will be played at random. Press the [RDM] button again to disengage the unit from random play. DB266MP...

  • Page 14: Mp3 Mode Operations

    1st track of target folder. Note: • The folder which contents of no MP3 file will be skipped. DB266MP MP3 playing order When selected for play folder up down functions, files and folders are accessed in the order in which they were written by the CD- ROM writer.

  • Page 15: Display Selection

    Indicator “TRK “SCN” SCN” “FLDR “ALL···” SCN” & “SCN” (Track No., Play time) (Folder No., track No.) ... FOLDER (Folder) ∗ Refer to “Title display mode” After 2 seconds Folder Title Track Title Album tag Artist Tag Title Tag DB266MP...
  • Page 16 • The folder name will be displayed as “ROOT” which the file allocates in the root folder. • The MP3 player decodes each file ID3 TAG ver 2 by default, if ID3 TAG ver 2 is unavailable, ID3 TAG ver 1 will be decoded.

  • Page 17: Troubleshooting

    ➜ Check the compact disc. This indicates that the CD’s TOC (table of contents) cannot be read, for example because the selected disc is upside- down. Solution Reset button DB266MP...

  • Page 18: Specifications

    Folder Support: 128 File Support: 254 Folder Name: Maximum 16 characters File Name: Maximum 28 characters DB266MP Audio Maximum Power Output: 180 W (45 W × 4 ch) Continuous Average Power Output: 17 W ✕ 4, into 4 Ω, 20 Hz to 20 kHz, 1%THD Bass Control Action (100 Hz): ±14 dB...
  • Page 19 Clarion Co., Ltd. All Rights Reserved. Copyright © 2005: Clarion Co., Ltd. PE-2793K Printed in China / 2005/12 (A·C) 280-8355-00...
