- Page 1 Owner’s manual Mode d’emploi Manual de instrucciones DB285USB CD/USB/MP3/WMA RECEIVER AUTORADIO CD/USB/MP3/WMA RECEPTOR CD/USB/MP3/WMA...
- Page 2 Si este equipo causa interferencias perjudiciales en la recepción de radio, lo cual podrá determinarse conectando y desconectando la alimentación del equipo, se aconseja al usuario que consulte al abastecedor o que pida ayuda a un técnico en radio experimentado. DB285USB Bottom View of Source Unit Fond de l’appareil pilote...
-
Page 3: Table Of Contents
Radio Operations ... 15 CD/MP3/WMA Operations ... 17 Operations Common to Each Mode ... 21 7. ACCESSORIES ... 23 USB Operations ... 23 8. TROUBLESHOOTING... 25 9. ERROR DISPLAYS ... 27 10. SPECIFICATIONS ... 28 For USA and Canada only www.clarion.com DB285USB... -
Page 4: Features
3. This unit uses a precision mechanism. Even in the event that trouble arises, never open the case, disassemble the unit, or lubricate the rotating parts. DB285USB CAUTION USE OF CONTROLS, ADJUSTMENTS, OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN, MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. -
Page 5: Handling Compact Discs
• Do not use any solvents, such as commercially available cleaners, anti-static spray, or thinner to clean compact discs. • After using special compact disc cleaner, let the compact disc dry off well before playing it. DB285USB... -

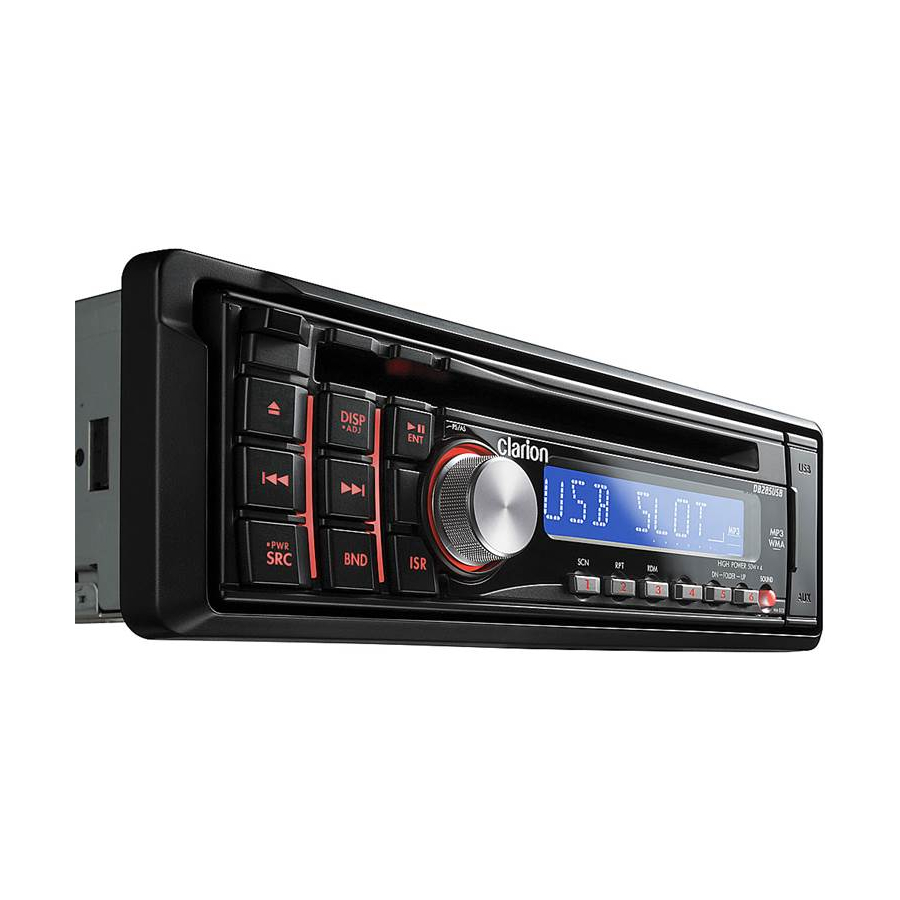

Page 6: Controls
• CD insertion slot. [USB SLOT] • USB memory insertion slot. [AUX] input jack • The input jack for connecting an external device. DB285USB [ IR RECEIVER ] [ CD SLOT ] [ SCN ] [ RPT ] [ RDM ] [SOUND] button •... -
Page 7: Rotary Knob
This button is used to make various settings. • Press and hold the button for 1 second or longer to enter the fast-forward or fast- backward mode. [Q] (EJECT) button • Eject a disc when it is loaded into the unit. DB285USB... -
Page 8: Display Items
Display Screen In extreme cold, the screen movement may slow down and the screen may darken, but this is normal. The screen will recover when it returns to normal temperature. DB285USB : Preset channel indication (1 to 6) : Enter indication... -
Page 9: Dcp (Detachable Control Panel)
Be careful not to damage it by pressing on it with fingernails, pens, screwdrivers, etc. Main Unit Front DCP Rear Panel connector Main unit connector Note: • If the DCP is dirty, wipe off the dirt with a soft, dry cloth only. DB285USB... -
Page 10: Remote Control
• Press and hold the button for 2 seconds or longer to store current station in ISR memory (radio mode only). [DISP] button • Press to select the desired display. DB285USB Signal transmitter [ BND ] [ DISP ] [ RDM ]... -
Page 11: Inserting The Battery
1 second or longer to perform folder repeat play. [RDM] button • Press to perform random play. • When in MP3/WMA mode, press and hold the button for 1 second or longer to perform folder random play. Insertion guide DB285USB... -
Page 12: Operations
1. Press the [SRC] button. 2. Press and hold the [SRC] button for 1 second or longer to turn off the power for the unit. DB285USB Selecting a mode 1. Press the [SRC] button to change the operation mode. 2. Each time you press the [SRC] button, the... -
Page 13: Sound Adjustment
] button to return to the ] button for 1 ] button. “B<F 60>” “Q 1” (Adjustment range: 7 to – “60”. (Adjustment range: 60/80/100/ 200) :The factory default setting is “1”. (Adjustment range: 1/1.25/1.5/2) ] button to return to the DB285USB... -
Page 14: Adjusting The Treble
The factory default setting is “CENTER” (center). (Adjustment range: FRONT12 to REAR12 (front 12 to rear 12)) DB285USB Adjusting the non fader output volume You can adjust the volume output from the unit’s non fader output terminal. -
Page 15: Radio Operations
1. Press the [BND] button and select the desired band (FM or AM). 2. Press and hold the [ or longer. The stations with good reception are stored automatically to the preset channels. ] button for 2 seconds DB285USB... - Page 16 • Be careful not to press and hold the [ for 2 seconds or longer, otherwise the auto store function is engaged and the unit starts storing stations. DB285USB Instant station recall (ISR) Instant station recall is a special radio preset that instantly accesses a favorite radio station at a touch of a button.
-
Page 17: Cd/Mp3/Wma Operations
2. Tracks are played in the order that they were recorded onto a disc. (Tracks might not always be played in the order displayed on the PC.) 3. Some noise may occur depending on the type of encoder software used while recording. DB285USB... -
Page 18: Displaying Cd Titles
The mode changes each time the [SRC] button is pressed. Radio CD/MP3/WMA Radio ... DB285USB Loading a CD 1. Insert a CD into the centre of the CD SLOT with the labeled side facing up. “LOADING” appears in the display, the CD enters into the slot, and the play starts. -
Page 19: Selecting A Track
“ALL RPT” appears in the display for 2 seconds. Random play This function allows you to play all tracks recorded on a disc in a random order. 1. Press the [RDM] button to perform random play. “TRK RDM” appears in the display for 2 seconds. DB285USB... - Page 20 1. Press and hold the [RDM] button for 1 second or longer to perform folder random play. “ALL RDM” appears in the display for 2 seconds. DB285USB To cancel play 1. Press the operating button previously selected. The various play mode is canceled and the various play off mode appears in the display for 2 seconds.
-
Page 21: Operations Common To Each Mode
To scroll just 1 time. Setting the dimmer control You can set the dimmer control “ON” or “OFF”. The factory default setting is “ON”. 2-1. Select “DIMMER”. 3-1. Turn the [ROTARY] knob to select “ON” or “OFF”. after 1 second, DB285USB... -
Page 22: Aux Function
• If connecting a hands-free kit, please ensure the setting is ON to receive the telephone audio through the system. DB285USB AUX function This system has an external input jack on the front panel so you can listen to sounds and music from external devices connected to this unit. -
Page 23: Accessories
- When the device is subjected to static electricity or electric noise. • Do not leave a USB memory device unattended in an automobile. Exposure to direct sunlight or high temperatures may cause deformation or other malfunction of the USB memory device. DB285USB... -
Page 24: Usb Memory Device
USB memory device connected (the actual playback order may not be the same as that indicated on your computer’s display). DB285USB To listen to tracks on a connected USB memory device 1. Press the [SRC] button to switch the source. -
Page 25: Troubleshooting
Clean the compact disc with a soft cloth. Replace with a compact disc with no scratches. Use MP3/WMA files encoded properly. Let dry for about 1 hour with the power on. Use ISO9660 level 1, 2 or JOLIET or Romeo file system. Measure Reset button DB285USB... - Page 26 Can’t insert USB USB memory device has memory device. been inserted improperly. The connector is broken. DB285USB Cause Record MP3/WMA files properly to USB memory device. Use only properly encoded MP3/WMA files. See page 17 for details on how to cancel DRM protection.
-
Page 27: Error Displays
This is a failure of CD deck’s mechanism and consult your store of purchase. Replace with a non-scratched, non-warped-disc. Eject the disc then reload it properly. Disconnect USB memory device and reconnect, if the device still can’t be recognized, try replacing with a different USB memory device. Measure DB285USB... -
Page 28: Specifications
Treble Control Action (10 kHz): +14 dB, –14 dB Line Output Level (CD 1 kHz): 1.8 V Note: • Specifications and design are subject to change without notice for further improvement. DB285USB General Power Supply Voltage: 14.4 V DC (10.8 to 15.6 V allowable), negative... - Page 29 Clarion Co., Ltd. PE-3047B All Rights Reserved. Copyright © 2007: Clarion Co., Ltd. 2007/12 280-8587-00 Printed in China / Imprimé en Chine / Impreso en China...
