COMPACT COMPONENT SYSTEM
CA-MXJ950R
CD
TAPE
AUX
FM/AM
INSTRUCTIONS
COMPACT
DIGITAL AUDIO
For Customer Use:
Enter below the Model No. and Serial
No. which are located either on the rear,
bottom or side of the cabinet. Retain this
information for future reference.
Model No.
Serial No.
GVT0037-008A
[ B ]
Advertisement
Table of Contents
Related Manuals for JVC CA-MXJ950RB
Summary of Contents for JVC CA-MXJ950RB
- Page 1 COMPACT COMPONENT SYSTEM CA-MXJ950R TAPE FM/AM INSTRUCTIONS COMPACT DIGITAL AUDIO For Customer Use: Enter below the Model No. and Serial No. which are located either on the rear, bottom or side of the cabinet. Retain this information for future reference. Model No.
-
Page 2: Important For Laser Products
IMPORTANT for the U.K. DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appro- priate safety approved extension lead or consult your dealer. - Page 3 “SOME DOS AND DON’TS ON THE SAFE USE OF EQUIPMENT” This equipment has been disigned and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured. Do read the operating instructions before you attempt to use the equipment.
- Page 4 Introduction We would like to thank you for purchasing one of our JVC products. Before operating this unit, read this manual carefully and thoroughly to obtain the best possible performance from your unit, and retain this manual About This Manual This manual is organized as follows: •...
-
Page 5: Table Of Contents
Contents Location of the Buttons and Controls ... 3 Front Panel ... 3 Remote Control ... 5 Getting Started ... 6 Unpacking ... 6 Putting the Batteries into the Remote Control ... 6 Connecting Antennas ... 6 Connecting Speakers ... 7 Connecting Other Equipment ... -
Page 6: Location Of The Buttons And Controls

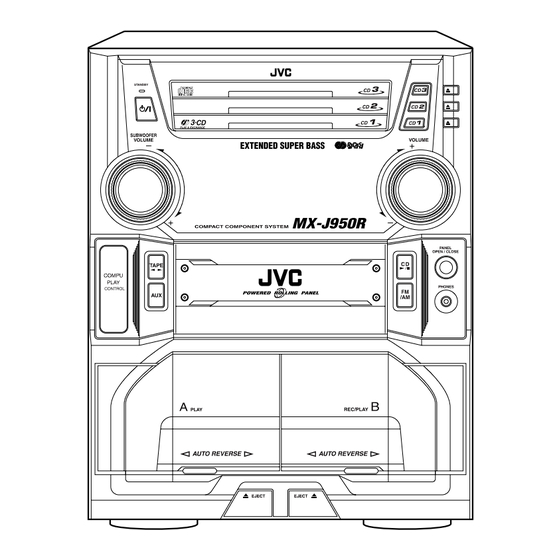

Location of the Buttons and Controls Become familiar with the buttons and controls on your unit. Front Panel Powered Rolling Panel Press PANEL OPEN/ CLOSE to open the panel. To close the panel, press the button again. Front Panel – 3 –... - Page 7 Display Window See pages in the parentheses for details. Front Panel 1 Disc trays (Standby/On) button and STANDBY lamp (9) 3 Display window 4 SUBWOOFER VOLUME control (10) 5 Remote sensor 6 TAPE 2 3 button and lamp (9, 18) Pressing this button also turns on the unit.
-
