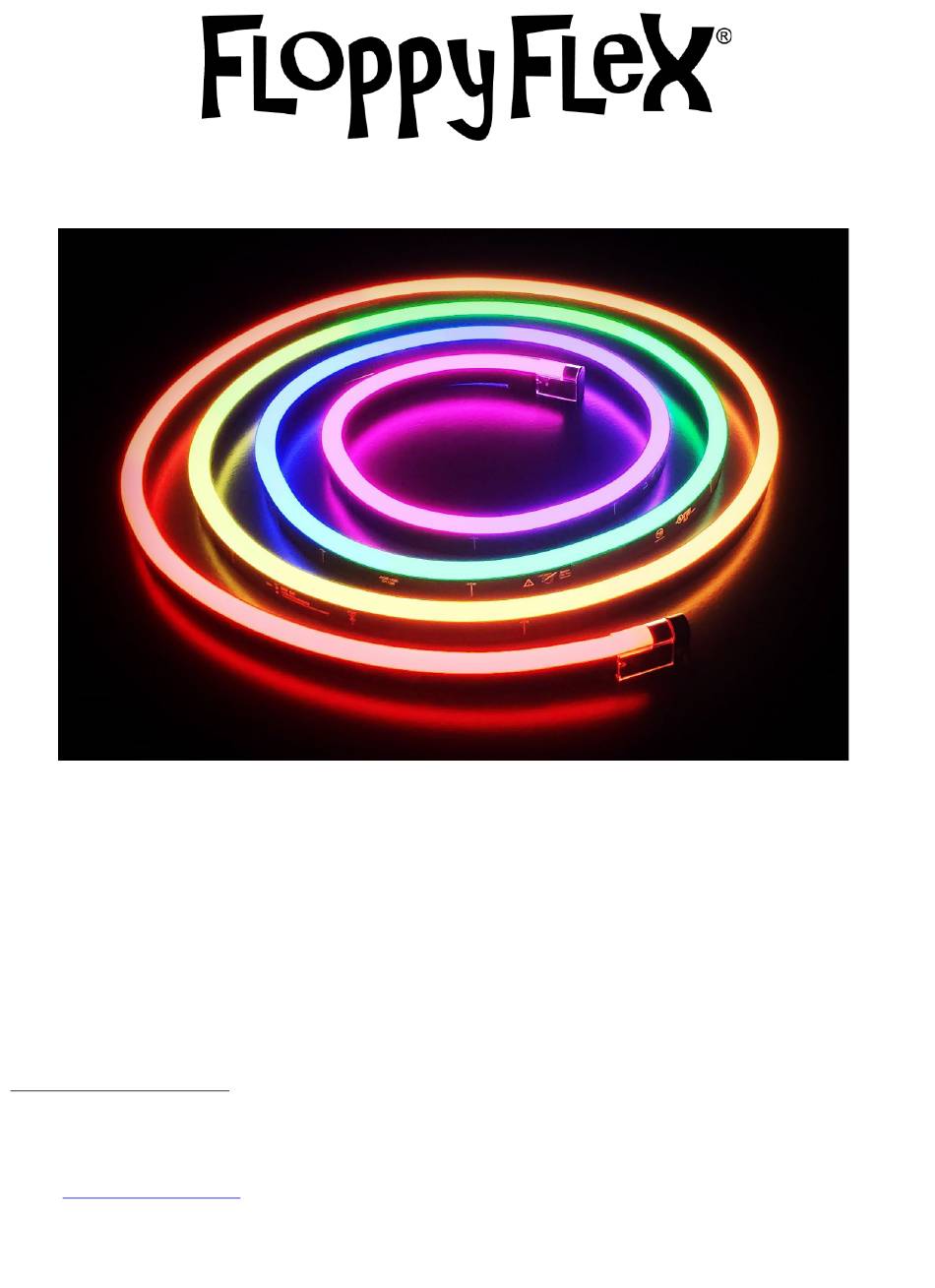

PRODUCT OVERVIEW FloppyFlex and FloppyFlex Digital are world class professional grade, flexible IP68*, IP67 and IP20 LED “neon”. It’s the perfect replacement for glass neon, easy to use, long lasting & durable. Suitable for many projects and installations including indoor, outdoor, signage & architectural. Single Color, RGB, Digital RGB, Digital RGBW and Dynamic White with side-to-side (STS) and front-to-back (FTB) bend options. -
Page 6: Arge Rofile | Sts - General Pecifications
[7 LEDs] [-40 to 131 °F] Silicone 125 mm [4.92 in] -40 to 55 °C RGBW 24 VDC 3-wire DMX via FloppyDrive Digital [7 LEDs] [-40 to 131 °F] - 6 - FloppyFlex User Manual Version 2.0 - 22 August 2022... -
Page 7: Mall Rofile | Sts - General Pecifications
[7 LEDs] [-40 to 131 °F] Silicone 125 mm [4.92 in] -40 to 55 °C RGBW 24 VDC 3-wire DMX via FloppyDrive Digital [7 LEDs] [-40 to 131 °F] - 7 - FloppyFlex User Manual Version 2.0 - 22 August 2022... -
Page 8: Lat Rofile | Ftb - General Pecifications
[7 LEDs] [-40 to 131 °F] Silicone 125 mm [4.92 in] -40 to 55 °C RGBW 24 VDC 3-wire DMX via FloppyDrive Digital [7 LEDs] [-40 to 131 °F] - 8 - FloppyFlex User Manual Version 2.0 - 22 August 2022... -
Page 9: Lat Rofile | Sts - General Pecifications
DMX via FloppyDrive 2x2 83.34 mm [3.28 in] -40 to 55 °C Green, Blue 24 VDC 2-wire Line-side MLV Dimming (with [6 LEDs] [-40 to 131 °F] compatible transformer) - 9 - FloppyFlex User Manual Version 2.0 - 22 August 2022... -
Page 10: Ini Rofile | Ftb - General Pecifications
125 mm [4.92 in] -40 to 60 °C Silicone Red, Green, Blue, Amber 24 VDC 2-wire Line-side MLV Dimming (with [9 LEDs] [-40 to 140 °F] compatible transformer) - 10 - FloppyFlex User Manual Version 2.0 - 22 August 2022... -
Page 11: Care And Handling
CARE AND HANDLING FloppyFlex LED neon contains electronic components and LEDs. While the flexible housing enhances durability, FloppyFlex does require proper care and handling. Treated correctly, per the guidelines below, FloppyFlex will provide many years of reliable service and beautiful colors. - Page 12 NEVER pull FloppyFlex out of the box from the center or twist it backwards. Use the box as intended. Thread the FloppyFlex end through the box insert and pull gently to un- coil. - 12 - FloppyFlex User Manual Version 2.0 - 22 August 2022...
- Page 13 Keep the assembly flat by layering cardboard above and below. Several Coiled assemblies can be stacked and transported in this manner. - 13 - FloppyFlex User Manual Version 2.0 - 22 August 2022...
-
Page 14: Cutting Floppyflex
FloppyFlex Large, Small and Flat profile products, while the smaller spreader is used for FloppyFlex Mini profile. We highly recommend using the Mini Tool Kit for optimal results and reduced risk of damage to the product. - Page 15 Cutting Instructions FloppyFlex Cutting Instructions are applicable to all types of STS and FTB FloppyFlex. Cutting FloppyFlex is a quick and easy process with minimal tools and is adaptable for preparing FloppyFlex in the shop beforehand or in the field. Visit https://tmb.com/floppyflex/...
-
Page 16: Terminating Floppyflex
UMBERING YSTEM The FloppyFlex internal PCB is not symmetrically located within the housing, meaning each end will have a different PCB placement and will only marry with the appropriate EZ-Connector. After cutting, inspect end and note which numbered side is visible, “01” or “02”. The visible number determines which style of connection must be used. -
Page 17: Inserting The Spreader
NSERTING THE PREADER The inner components of FloppyFlex are hermetically sealed inside a PVC or silicone housing that offers little clearance for connector installation. Using the insertion spreader tool, users can separate the flexible PCB from the PVC insulating strip and create a “pocket” for the connector input. This allows easy access to the copper conductors of the flexible PCB and ensures proper connectivity between the conductors and connector pins. -
Page 18: Ez Connect Termination Instructions
EZ Connect Power Feeds, End Caps and Jumpers. Terminating FloppyFlex is a quick and easy process with minimal tools and is adaptable for preparing FloppyFlex in the shop beforehand or in the field. Visit tmb.com for full instructional videos. - Page 19 PCB or may be installed incorrectly on the front side of PCB. If this occurs, simply remove the connector, inspect for any damage, and repeat Step 3 to reopen the cavity. - 19 - FloppyFlex User Manual Version 2.0 - 22 August 2022...
- Page 20 Installing the Frame correctly may sometimes require additional force on the connector to push it towards FloppyFlex end until the frame can snap into place. - 20 - FloppyFlex User Manual Version 2.0 - 22 August 2022...
- Page 21 Snap Cover should easily slide over the completed assembly with minimal pressure. You should hear a distinct “click” when the Snap Cover is in place. The Assembly is now complete! - 21 - FloppyFlex User Manual Version 2.0 - 22 August 2022...
-
Page 22: Mounting Floppyflex
OUNTING ROFILES FloppyFlex is recommended to be installed in permanent architectural applications or semi-permanent scenic applications with the use of Aluminum Mounting Profiles. These mounting profiles are available in a variety of styles and pre-cut lengths which are suitable for any indoor or outdoor surface mount application. - Page 23 Self-Locking Aluminum Profile V3 FloppyFlex Flat Recessed Self-Locking Aluminum Profile V3 FloppyFlex Flat Self-Locking Aluminum Profile V3 FloppyFlex Mini Recessed Self-Locking Aluminum Profile V3 FloppyFlex Mini - 23 - FloppyFlex User Manual Version 2.0 - 22 August 2022...
- Page 24 • Freeform construction allows two-way horizontal bending and enables shape memory • Includes elastic serrated grip tape to hold FloppyFlex firmly in place • Available in .05m and 1m lengths – user cuttable to custom sizes Flexible Self-Locking Aluminum Profile...
-
Page 25: Aluminum Profile Installation Guidelines
FloppyFlex is uniquely durable LED neon replacement with unlimited potential in many applications, however it is not an invincible product. It is extremely important that FloppyFlex assemblies are adequately supported by aluminum mounting profiles which are installed with respect to the installation guidelines. - Page 26 Warning: Make sure cut edges of profile are smooth and do not have any burrs that can damage FloppyFlex. Edges can be filed or sanded after cutting. - 26 - FloppyFlex User Manual Version 2.0 - 22 August 2022...
- Page 27 Warning: Bending a run FloppyFlex at a right angle violates the minimum bending diameter and can result in damage to the FloppyFlex assembly. - 27 - FloppyFlex User Manual Version 2.0 - 22 August 2022...
- Page 28 If necessary, adjust the tape and remove any extra that protrudes from both ends of the profile. o Step 5: Installation is now complete. Clean visible markings as necessary. - 28 - FloppyFlex User Manual Version 2.0 - 22 August 2022...
- Page 29 When handling FloppyFlex in lengths greater than 2 meters, make sure to have a second person helping to support the product while the first ≥10 mm person secures the product into place. - 29 - FloppyFlex User Manual Version 2.0 - 22 August 2022...
- Page 30 FloppyFlex from the serrated gripping tape. o Slowly remove FloppyFlex by hand, from one direction, making sure to keep an angle no more than 15˚ from the profile. - 30 - FloppyFlex User Manual Version 2.0 - 22 August 2022...
-
Page 31: Frequently Asked Questions
Most projects require smaller sections of profile to create curving shapes. In those cases, using our smallest 20 mm sections of profile, we recommend using at least 5 pieces per meter of FloppyFlex in order to have safe and proper support. - Page 32 Digital FloppyFlex products are the only individually DMX addressable versions. The process for addressing FloppyFlex is a function of the FloppyDrive being used to send power and control data to the assembly. While DMX starting address is user selectable, pixels are self-addressing afterwards. This means that pixels cannot be addressed individually out of order, rather they will be addressed sequentially.
-
Page 33: Lead-In Lengths
100W 110W 120W Note: The cable length does not include the power connector cable. Note: FloppyFlex Digital RGB and FloppyFlex Digital RGBW maximum lead-in length 10m with 18AWG - 33 - FloppyFlex User Manual Version 2.0 - 22 August 2022... -
Page 34: Return Procedure
Please send returned merchandise prepaid and in the original packing. Freight call tags will not be issued for shipping the product to TMB, but TMB will pay the freight for return to the customer. Clearly label package with a Return Merchandise Authorization Number (RMA #). Products returned without an RMA # will delay service. - Page 35 CONTACT INFORMATION LOS ANGELES HEADQUARTERS 527 Park Avenue | San Fernando, CA 91340, USA Tel: +1 818.899.8818 | Fax: +1 818.899.8813 sales@tmb.com TMB 24/7 TECH SUPPORT US/Canada: +1.818.794.1286 Toll Free: 1.877.862.3833 (1.877.TMB.DUDE) UK: +44 (0)20.8574.9739 Toll Free: 0800.652.5418 techsupport@tmb.com LOS ANGELES +1 818.899.8818 LONDON +44 (0)20.8574.9700...
