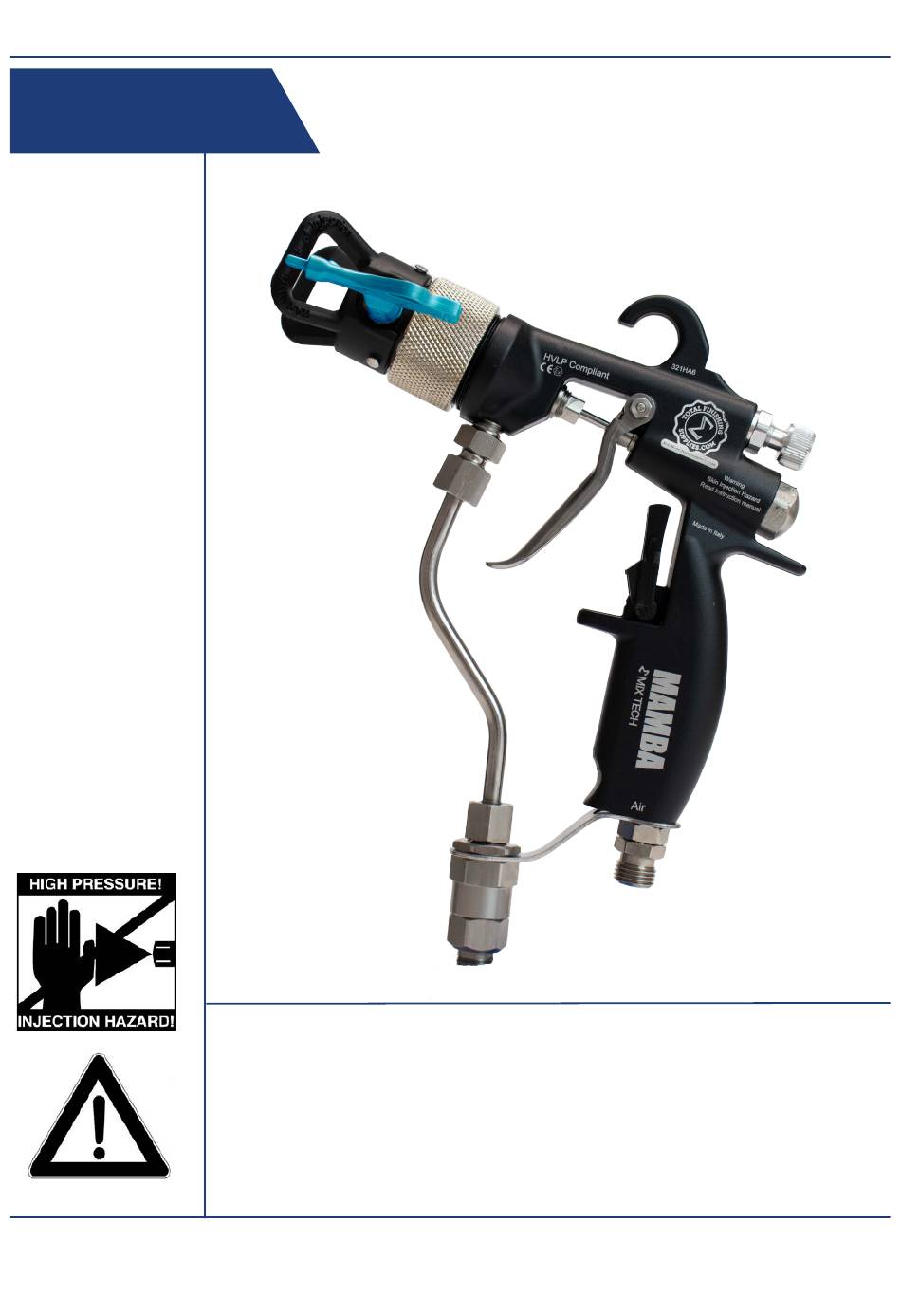

AirCombi Spray Gun
WARNING!!! Read all instructions carefully before assembling components and oper-
ating sprayer. Incorrect procedure could result in damage to the unit, severe personal
injury and/or property damage. When spraying flammable materials, sprayer must be
placed at least 20 feet from target in a well-ventilated area. Vapours can be ignited by
static discharge or electrical sparks and result in severe personal injury. Airless sprayers
generate high fluid pressure. Improper use could result in an injection injury.
OPERATING MANUAL
Advertisement
Table of Contents
Summary of Contents for Mamba AirCombi
- Page 1 OPERATING MANUAL MAMBA AirCombi Spray Gun WARNING!!! Read all instructions carefully before assembling components and oper- ating sprayer. Incorrect procedure could result in damage to the unit, severe personal injury and/or property damage. When spraying flammable materials, sprayer must be placed at least 20 feet from target in a well-ventilated area.
-
Page 2: Table Of Contents
Spray Gun Filter ................... 8 Air Hose Connection ..................9 Material Hose Connection ................9 Hints for Airless & AirCombi Sprayer ........10 Painting and Tip Selection ................10 Spray Painting Method ................10 How to select tip and proper filter ........11 Proper system setting ............12... -
Page 3: Description Of Symbols
MAMBA AirCombi Spray Gun 1. Description of symbols The signs and symbols used in this manual have the following meaning: NOTE marks a section of text which is especially relevant to safety. Special attention should be paid to this section and its contents strictly observed. -
Page 4: General Cautions
MAMBA AirCombi Spray Gun 2. General Cautions • Always follow safety precautions and warnings printed on paint container. • Only use accessories supplied by the manufacturer. User assumes all risk and liability when using spray guns, hoses or other parts not complying with minimum specification and safety devices •... - Page 5 MAMBA AirCombi Spray Gun High Pressure Hazard This system is capable of producing 200 Bar (2900 PSI). To avoid rupture and injury, do not operate this pump with components rated less than 200 bar (2900 PSI) working pressure (including but not limited to spray guns, hose and hose connections).
-
Page 6: Introduction
We appreciate your decision to purchase a high quality professional paint spraying system and believe you will find it to be the best sprayer you ever owned. Your AirCombi Spray Gun is capable of spraying a wide variety of latex, oil-based and alkyd paints, as well as stains, preservatives, fire-proofing, water-proofing, and other many industrial coatings. -
Page 7: Assembly Details
MAMBA AirCombi Spray Gun 4.2 Assembly details Pos. Description AirCap complete Hook Fan regulator set Trigger Trigger lock Filter Holder Fluid connection Air connection OPERATING MANUAL Page... -
Page 8: Set-Up
5. Set-up The spray gun is designed specifically for AirCombi spraying, i.e. the Spray gun can be used in Airless mode as well as in Mixed Air mode. The atomization is accomplished by the pressure (adjustable from 0 up to 200 Bar) through a pump. -
Page 9: Air Hose Connection
MAMBA AirCombi Spray Gun 5.4 Air hose connection Attention: It is suggested to install an air filter on the gun air line to ensure a dry, clean air supply to the gun. Dirt and moisture can ruin the appearance of your finished worked piece. Install an air pressure reg- ulator on the gun air line to control air pressure to the gun. -
Page 10: Hints For Airless & Aircombi Sprayer
MAMBA AirCombi Spray Gun 6. Hints for Airless & AirCombi Sprayer WARNING: DO NOT BEGIN SPRAYING BEFORE READING THIS SECTION AND ALL PREVIOUS SAFETY INFOR- MATION. To disengage your trigger lock: Your spray gun is shipped from the factory with the trigger lock in the engaged position (horizontal). -
Page 11: How To Select Tip And Proper Filter
MAMBA AirCombi Spray Gun 7. How to select tip and proper filter Tip and filter table with specifications concerning capacity at different pressures (lt. minute) with water. Notice: For each tip size please choose between the following fan corners: CAPACITY MEASURED IN LT/MIN. -
Page 12: Proper System Setting
2. Set the gun air pressure on the pump according the fluid to spray 3. Adjust the Fan Regulator Set on the AirCombi gun if it is necessary to increase or decrease the fan width 8.1 Spring Tension Adjustment - Only for “A” Versions Your AirCombi Spray Gun “A”... -
Page 13: Cleaning
AirCombi Spray Gun 9. Cleaning Your AirCombi Spray Gun must be cleaned properly or it will not operate properly. Clogged nozzle and fil- ters are the most common causes of problems. If followed, these guidelines will insure trouble free perfor- mance from your sprayer. -
Page 14: Gun Filter Changing
MAMBA AirCombi Spray Gun 10.2 Gun Filter changing NOTE: It is important to clean the gun filter regularly in order to minimize tip clogging problems. Use the proper solvent according to the paint used. 1. Unscrew the Filter holder (pos. 6) with the proper wrench 2. -
Page 15: Troubleshooting
MAMBA AirCombi Spray Gun 11. Troubleshooting Our products are carefully tested and their quality is excellent, thus the gun-life and its good performance principally depends on careful cleaning and maintenance. PROBLEMS CAUSES REMEDIES Low flush of materials a. Gun butt filter is clogged a. - Page 16 Technical data subject to change...
