CasaCam CM825735 User Manual

7” wireless system with night vision camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

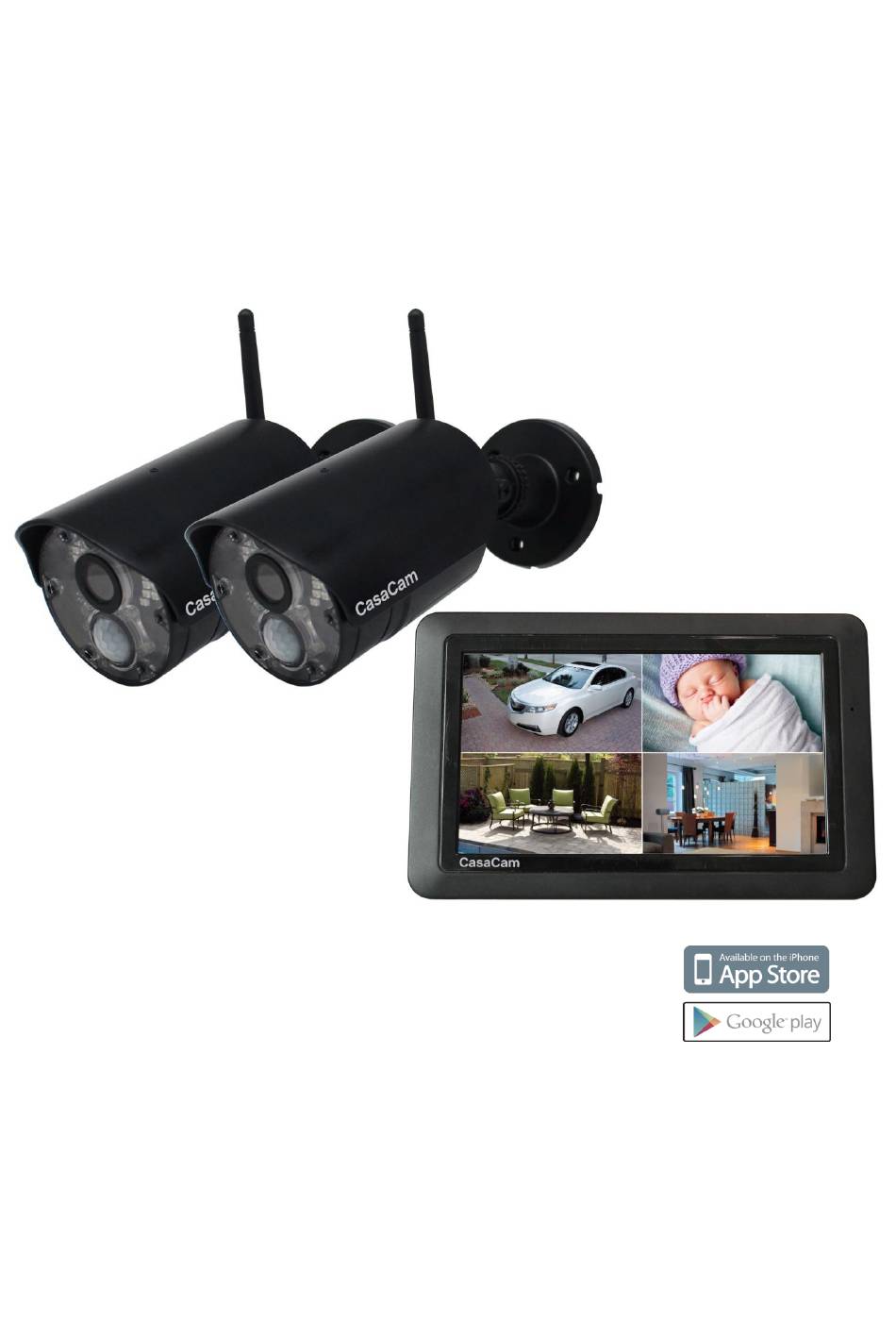

7" Wireless System with Night Vision Camera
CM825735
USER MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM825735 and is the answer not in the manual?

Questions and answers

Related Manuals for CasaCam CM825735

Summary of Contents for CasaCam CM825735

  • Page 1 7” Wireless System with Night Vision Camera CM825735 USER MANUAL...

  • Page 2: Table Of Contents

    Table of Contents What’s Included in the Box? ....................3 Overview ........................... 3 2.1 Wireless Receiver (7”Touchscreen Monitor) ....................3 2.2 Camera ................................4 Set up the Hardware ........................ 5 3.1 Monitor ................................5 3.2 Camera ................................5 3.2.1 General ..............................5 3.2.2 Placement Considerations ........................

  • Page 3: What's Included In The Box

    1. What’s Included in the Box? 2. Overview 2.1 Wireless Receiver (7”Touchscreen Monitor)

  • Page 4: Camera

    2.2 Camera Item What it is What it does Captures the sound on camera side and transmits the sound from Microphone camera to monitor. Catches the video in front of the lens and transmits video from Lens camera to Monitor. IR LED Infrared LEDs provide viewing in no/low light conditions.

  • Page 5: Set Up The Hardware

    Use the bracket to mount the camera on a wall or other flat Bracket surfaces. The pair button is located on the back of the camera. Press pair Pair button button when monitor is in pairing mode. Deterrent light Deterrent light flashes when motion detected. 3.

  • Page 6: Placement Considerations

    clean the lens glass with a soft cloth is recommended. 3.2.2 Placement Considerations Consider the following when placing cameras: • The clearest line-of-sight between the camera and monitor is best. • Walls, especially brick and concrete will shorten the transmission distance. •...

  • Page 7: Live Screen Icons (Quad)

    Live Screen Icons (Quad) In split/quad display, touch live view area (not operation icon), it will switch to related single channel display. Signal Strength: Shows how strong the camera's signal is. Signal ranges from 4 bars down to 0 bars (out of range). Camera Number: Displays the current channel number you are currently viewing.
  • Page 8 SD Card Indicator: Displays if an SD card is inserted into the monitor. If green, recording space is available. If red, the SD card is full. Recording Indicator: When this icon flashes red, it indicates that recording is in progress. Network Connection Status: Green- Monitor is connected to the internet.
  • Page 9 mode, icon change to red Short cut: Touch this button to show following shortcut menu buttons. Channel button: Touch this button to change channel. Menu: Touch this to open the main menu LED Light: This icon appears when white spotlight camera is paired to the system. touch this button to turn on camera LED light manually, when LED is on it shows touch again to turn off manually, icon shows Siren: Touch this button will activate siren at camera side, touch and hold the button...

  • Page 10: Menu

    monitor, Menu==Recording Setup==Motion Recording On/Off to turn on/off auto recording for each camera. SEQ Display Mode: Displays when the monitor is in auto switch mode; it will change channels automatically. 5. Menu In live view or quad, touch to get shortcut buttons, touch the menu button to open the main menu.

  • Page 11: Recording Setup

    2. Camera On/Off. Make the cameras visible to the monitor. 3. Brightness. Adjust camera brightness for different camera separately. 4. Resolution. Adjust the video quality of each camera. 5. Night Vision Setup Set the camera night vision in Auto mode or turn off the night vision 6.
  • Page 12 Touch “Modify” at the bottom right corner, you will go to following page, you can choose which cameras (you can select more than one), which day and then time period you want to record. If you selected “Motion” (the button in green background), means system will record only if camera detects motion in the schedule you set.

  • Page 13: System Settings

    sure time period is wider than schedule and touch “Delete”. If you want to delete several schedules in one day, you can set both “Start Time” and “End Time” to 00:00 am 3. File Overwrite. Overwrites the oldest recorded data on the Micro SD card once the card is full. 4.

  • Page 14: Motion Detection Settings

    Six languages available for this system: English, German, Spanish, Italian, French, Dutch. 4. Default Settings. Set the system back to default setting. 5. Format Memory. Format Micro SD card used to record video. Please note that formatting will delete all recorded files. 6.

  • Page 15: Alert

    If you want to turn off motion detection, pls touch “Sensitivity” in above page, select “VMD or HDM (PIR)” , set both VMD and HMD to off. 5.5 Alert Alert settings for Monitor and Camera. 1. Alert on Monitor. 1). Alert Volume: Adjust alert volume on monitor. 2).

  • Page 16: Light Settings

    Turn on/off alerts (Deterrent Light & Voice Message) for each camera. 5.6 Light Settings *Please note that the Light Setting is not available for this model. It is available only when monitor connects to floodlight camera (RDI CL794). Set up light on duration, create a schedule for automatic light on/off, and adjust the brightness of the floodlight.

  • Page 17: Monitor Basic Operation (Quick Guide)

    two or more cameras are in pairing mode, you can’t control which camera the monitor will detect first. Pair Cameras 1. From the Pairing Camera screen, choose the channel you want to pair. A processing icon displays for a 30 second countdown. 2.

  • Page 18: Operating The Deluxecam App

    Delete recording 1. From Menu\Recording Setup\Schedule Recording. Shows “Schedule Recording schedule Overview”, select different day to show all schedules. Find the schedule you want to delete 2. Touch “Modify” button to go into “Schedule Recording Setup” page, select correct camera, and correct date, set the “Start Time”...

  • Page 19: Android

    8.1 Android 8.1.1 Add Camera 1. Start DeluxeCam and tap on the icon or on the respective text. 2. There are three ways to add the camera: • Tap Scan to Scan the QR code on the back of the monitor.• If your phone and monitor is connected to the same router, Tap Search to search the available UID and chose the one that you want to remote access.

  • Page 20: Settings In The App

    - Turning the sound from the camera on / off. - Turn on the loudspeaker on the camera (Talk-back function). - Turn the LED light on the camera on / off. (Not available for this model, only available when the monitor connects to Floodlight camera). If you have access to several cameras with the APP, you can use the icons etc at the top of the display to select the desired camera for displaying the live image.
  • Page 21 1. There are two ways to add the camera:  Tap Add to Enter the UID number (below the QR code on the back of the monitor) in the UID input field.  Tap QR code to scan the QR code on the back of the monitor.

  • Page 22: Operating The App

    8.2.2 Operating the APP While the live image is displayed, you can use the icons at the bottom of the display to access the following functions: - Access to the snapshots / photos (which you have triggered with the app). - Take a snapshot.

  • Page 23: Maintenance

    9. Maintenance • Clean the housing surfaces with a soft, fluff−free cloth. • Never use cleaning agents or solvents. 10. Technical Data Monitor Screen size 7" capacitive touchscreen LCD Screen Resolution 1024(H)×600(V) Video input 4x1008p\4x720p Video Video format Audio output Built-in speaker Audio Audio format...

  • Page 24: Important Safety Instructions

    Camera Resolution 2MP 1920x 1080 1/2.9” CMOS sensor Sensor Minimum illumination 0.02Lux @(F2.1,AGC ON) , 0 Lux with IR Lens & Angle 2.8mm Horizontal view angle:100° , Diagonal 118° Camera Day & night switching mode ICR Infrared filter type VMD detection VMD sensitivity adjustable, selected mask area Night fill light mode &...

  • Page 25: Trouble Shooting

    device on a pad or mat. • Only use the power adapter plugs contained in the material supplied since other power adapter plugs could damage the devices. • Ensure access to the power adapter plugs is not obstructed by furniture or such. •...

  • Page 26: Out Of Range

    system is connected to the internet. If it is in white, please re-boot the monitor and home router, then wait for 15 minutes to get the green icon. A brief introduction to the network status indicator on the monitor: Red - monitor is not connected to router. Check the RJ45 cable connection. White - monitor is connected to router, but router is not connecting to internet.
  • Page 27 the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.
