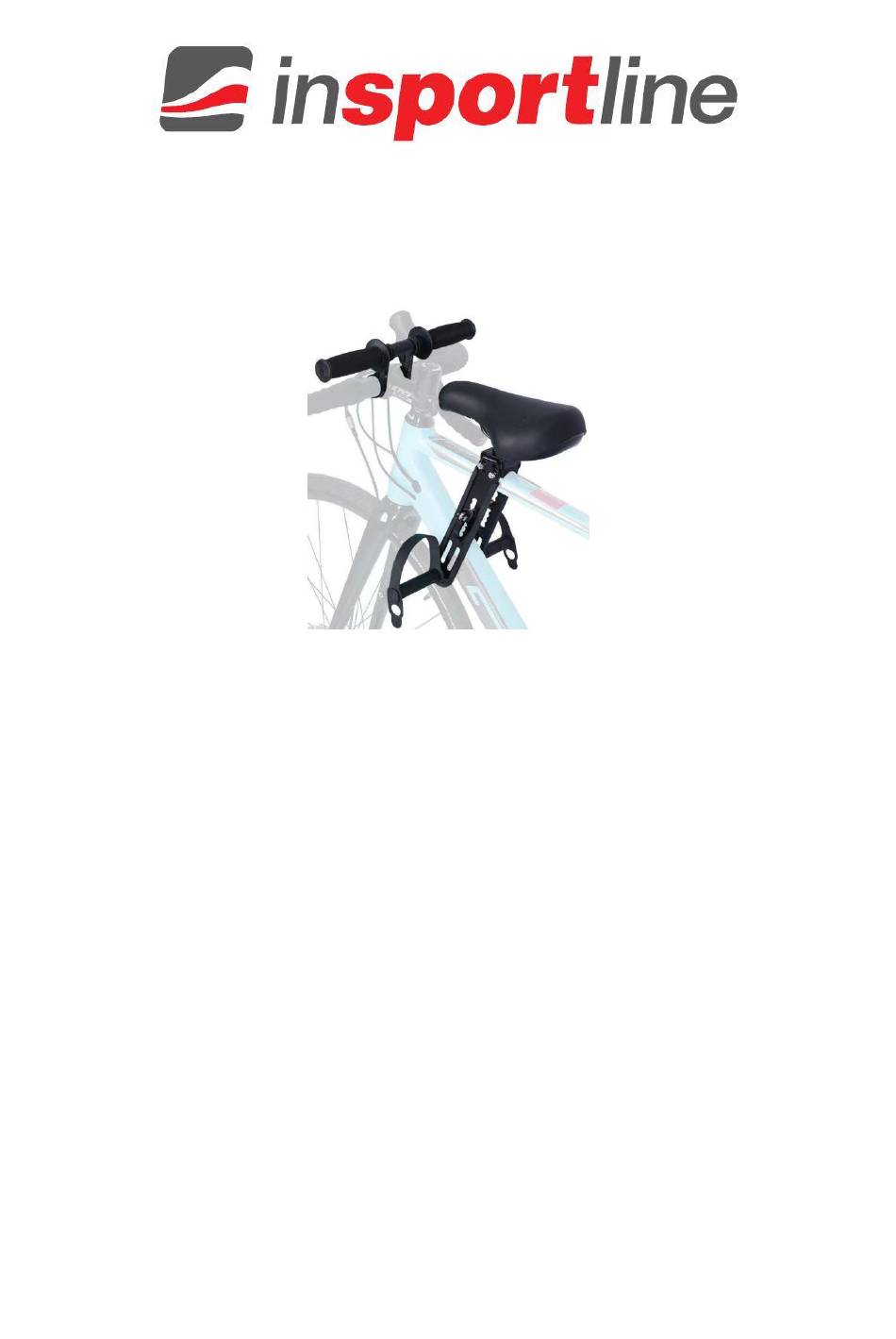

IN 24174 Child seat for bike frame inSPORTline Mousino
SAFETY INSTRUCTIONS
Read the manual carefully before use and assembly and keep it for future reference.
Prior to use, make sure that all screws are tightened, and the seat and handles are properly
fastened.
The child must have personal protective equipment (protectors, helmet, etc.)
The driver of the bicycle must be over 18 years of age.
Check the condition of the bike before use.
No part of the child's body or clothing should interfere with the moving parts of the bike.
Do not modify the product.
Never leave a child unattended in a seat.
Do not use the product if it is damaged or has sharp edges.
Never exceed the maximum load capacity of the entire bike.
Always place the child's feet on risers with straps and make sure they are not damaged (you
must always fasten the straps even when you are not transporting the child).
Ride carefully, the balance of the bike may be affected by the child and the seat.
Use warm water and soap to clean the saddle and soft parts, never use solvents.
Respect the rules of the road, wear a helmet (you and the child) and ride carefully.
Do not expose the seat to high temperatures and make sure that the seat is not hot before
use.
If your kid cannot sit properly, do not transport them.
USER MANUAL – EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 24174 and is the answer not in the manual?

Questions and answers

Summary of Contents for Insportline 24174

  • Page 1 USER MANUAL – EN IN 24174 Child seat for bike frame inSPORTline Mousino SAFETY INSTRUCTIONS • Read the manual carefully before use and assembly and keep it for future reference. • Prior to use, make sure that all screws are tightened, and the seat and handles are properly fastened.
  • Page 2: Handle Assembly

    • If parts of the seat are damaged or broken, replace the seat. • Never transport goods to the seat, use a carrier. If you are transporting a child, the goods must be placed at the other end of the bike. •...
  • Page 3 Make sure all parts are present. The handles are divided into 3 parts. The handle brackets are marked A and B. Loosen the screws on both sides of the brackets. Holes A are for attaching the handlebars. Use suitable inserts according to the diameter of the handlebars.
  • Page 4: Seat Assembly

    First, attach the handlebar brackets to the bike handlebars. Then attach the handlebar to the brackets. Tighten the screws. SEAT ASSEMBLY Loosen the seat bracket bolt. Extend the bracket to the width of the frame. Remove the marked part by unscrewing the nut. Place the bracket on the frame and find a suitable position.
  • Page 5 Tighten the 2x screws on both upper sides. Set the appropriate bracket angle. Press the bracket and tighten the upper bolt. The pedals are divided into 3 parts. Both sides of the rod are the same, marked for illustration only. Screw the nuts into one third of the rod on side A.
  • Page 6 The pedals are composed of straps and footrests. The side of the strap with two holes is on the outside and is used to adjust the length according to the size of the foot. The open part of the footrest is used to slide the pedals onto the pedal rod.
  • Page 7: Environment Protection

    Prior to use, make sure that all parts are correctly assembled and tightened. ENVIRONMENT PROTECTION After the product lifespan expired or if the possible repairing is uneconomic, dispose it according to the local laws and environmentally friendly in the nearest scrapyard. By proper disposal you will protect the environment and natural sources.
  • Page 8 SEVEN SPORT s.r.o. Strakonická 1151/2c, Praha 5, 150 00, ČR Registered Office: Dělnická 957, Vítkov, 749 01 Headquaters: Warranty & Service: Čermenská 486, Vítkov 749 01 CRN: 26847264 VAT ID: CZ26847264 Phone: +420 556 300 970 E-mail: eshop@insportline.cz...
  • Page 9 Web: www.inSPORTline.cz inSPORTline s.r.o. Headquaters, warranty & service center: Električná 6471, Trenčín 911 01, SK CRN: 36311723 VAT ID: SK2020177082 Phone: +421(0)326 526 701 E-mail: objednavky@insportline.sk reklamacie@insportline.sk servis@insportline.sk Web: www.inSPORTline.sk...
