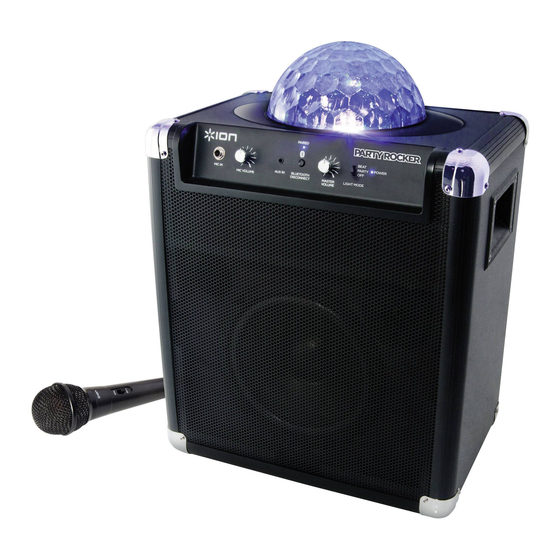

ION Audio
Party Rocker
[iPA22]
Service Manual
v1.0
2013.07.23
ATTENTION!
THIS DOCUMENT CONTAINS SENSITIVE
PROPRIETARY INFORMATION.
ALL RECIPIENTS MUST HAVE A CURRENT
NON-DISCLOSURE AGREEMENT ON FILE
WITH ION AUDIO.
DO NOT MAKE ILLEGAL
COPIES OF THIS DOCUMENT
The information in this document contains privileged and confidential information. It is intended
only for the use of those authorized by ION Audio. If you are not the authorized, intended
recipient, you are hereby notified that any review, dissemination, distribution or duplication of this
document is strictly prohibited. If you are not authorized, please contact ION Audio and destroy
all copies of this document. You may contact ION Audio at support@ionaudio.com.
Copyright ION Audio
Confidential
ION Audio Service Manual
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ION Party Rocker
Summary of Contents for ION Party Rocker
- Page 1 The information in this document contains privileged and confidential information. It is intended only for the use of those authorized by ION Audio. If you are not the authorized, intended recipient, you are hereby notified that any review, dissemination, distribution or duplication of this document is strictly prohibited.
- Page 2 As the owner of the copyright to the Manual, ION Audio does not give you the right to copy the Manual, and you agree not to copy the Manual without the written authorization of ION Audio.
- Page 3 REPAIR BY ANY PERSON OR ENTITY OTHER THAN AN AUTHORIZED ION AUDIO SERVICE CENTER WILL VOID THE ION AUDIO WARRANTY. PROVISION OF THIS MANUAL DOES NOT AUTHORIZE THE RECIPIENT TO...
-
Page 4: Safety Instructions
The product is exposed to water or excessive moisture, c. The AC power supply plug or cord is damaged, d. The product shows an inappropriate change in performance or does not operate normally, or e. The enclosure of the product has been damaged. Confidential ION Audio Service Manual... - Page 5 Bill of Materials (BOM) Part number Part name Description Unit Q'ty Remark CR010394 PRE module IPA22 PRE ASSY 17020021 Sub-electrolytic capacitor 3.3uF/25V,±20%,-40/+85℃,Φ4*7mm,P=1.5mm,黑色,剪脚为4mm 17020084 Sub-electrolytic capacitor 100uF/16V,±20%,-40/+105℃,Φ5*7mm,P=2mm,黑色,剪脚为4mm 17030012 Low leakage electrolytic capacitor 0.22uF/50V,±20%,-40/+85℃,Φ5*11mm,P=2.0mm,橙色,剪脚为4mm 17020010 Sub-electrolytic capacitor 0.47uF/50V,±20%,-40/+85℃,Φ4*7mm,P=1.5mm,黑色,剪脚为4mm 17020032 Sub-electrolytic capacitor 10uF/50V,±20%,-40/+85℃,Φ5*7mm,P=2.0mm,黑色,剪脚为4mm 17020013 Sub-electrolytic capacitor 1uF/50V,±20%,-40/+85℃,Φ4*7mm,P=1.5mm,黑色,剪脚为4mm...
- Page 6 50050069 SMT ceramic capacitor 104,VDC25,±10%,X7R,0603,编带式 50050036 SMT ceramic capacitor 47PF,VDC50,±5%,NPO,0603,编带式 50050047 SMT ceramic capacitor 101,VDC50,±5%,NPO,0805,编带式 50050059 SMT ceramic capacitor 102,VDC16,±10%,X7R,0805,编带式 50050075 SMT ceramic capacitor 104,VDC50,±10%,X7R,0805,编带式 50050116 SMT ceramic capacitor 221,VDC50,±5%,NPO,0805,编带式 50050138 SMT ceramic capacitor 331,VDC50,±5%,NPO,0805,编带式 50050030 SMT ceramic capacitor 33PF,VDC25,±5%,NPO,0805,编带式 50050037 SMT ceramic capacitor 47PF,VDC50,±5%,NPO,0805,编带式...
- Page 7 24010033 SMT deads FCM1608K-721T,200MHZ,720Ω,0603,线艺 24010009 SMT deads 600Ω@100MHZ,0.5A,±25%,0805,FB0805-601,奋发 60190108 ESD interference suppressor 0603ESDA-TR1 14040740 MC78M05BDTRKG,DPAK(TO-252),ON 40330016 connector IPEX板端连接器,IPEX-001,SMD,博讯 GR000389 RoHS:IPA22 PRE SMT IPA22 PRE板SMT 14040771 TJM4558,SO8,ST 14040279 NJM062M,SOP8,JRC, CR010357 RoHS:IPA BLUETOOTH V3.0 IPA BLUETOOTH V3.0 ASSY 26060053 AN-B60043,FR4四层,BT,29*20.5*1.0mm,1盎司,镀金,绿油,V1.1 50050340 SMT ceramic capacitor 104,VDC16,±10%,X5R,0402,编带式...
- Page 8 24060112 magnetic core inductor AN-I6053,LBP1010-15uH,15uH,3.5A,脚距5mm,线艺 24100002 dead core PFR011-08403509,3.5*9*0.8J5C,1.8uH±25%,编带式,普丰瑞 40360350 pin header AN-JP413,1P,HT-TJC1-1A,三元泰 40370098 male jack AN-JP410,3961-02,(P=3.96mm,180度)，恒泰安 40370197 male jack AN-JP426,2600PS-04,高勇/柏盛(180度,P=2.54mm) 40370001 male outlet AN-JP401,XH2.5-2P,2532-02,高勇/柏盛(180度,P=2.5mm),卓志 16060099 ground cable AN-W697,18#,UL1015,100mm,绿注黄,一端打187端子+胶套,一端剥5mm PCS GR000388 RoHS:IPA22 AMP IPA22 AMP板 40370002 male outlet AN-JP401,XH2.5-3P,HT-2.5-03P-01A,180度,P=2.5mm)三元泰美,卓志 40370003 male outlet AN-JP401,XH2.5-4P,2532-04,(180度,P=2.5mm)HT-2.5-04P-01A,卓志...
- Page 9 11230050 Jump Φ0.8*7.5mm,直式 14060010 PFET CEM4435A,SO-8,CET, CR010396 RoHS:IPA22 CONTROL IPA22 CONTROL ASSY 17010168 electrolytic capacitor 47uF/16V,±20%,-40/+85℃,Φ5*11mm,P=2mm,黑色,剪脚为4mm 17010282 electrolytic capacitor 1000uF/16V,±20%,-40/+85℃,Φ8*16mm,P=3.5mm,黑色,不剪脚 24060116 magnetic core inductor PK0608-47UH,47uH,1A,加UL套管(工字型磁芯) 12040036 Touch switch AN-S436,RM-021-01B,艺西欧 12010113 Slide switch AN-S247,SS-13E05-G7,品源 40370149 male jack AN-JP418,2021-02,高勇/柏盛(P=2mm,180度) 40370197 male jack AN-JP426,2600PS-04,高勇/柏盛(180度,P=2.54mm) 40370321 male jack...
- Page 10 11170949 SMT resistor 1/4W,61.9Ω,±1%,1206 11170378 SMT resistor 1/10W,510Ω,±5%,0603 24010020 SMT dead core FB2012-301,奋发 24010016 SMT dead core FB120,3A,1206,BLM31PG121SN1L MURATA 18010123 Common diode AN-D0123,SS14,DO-214AC,VISHAY 18010075 Common diode AN-D10075,LL-34,1N4148,编带式,翔盈 14010077 NPN audion MMBT3904LT1,SOT23,ONSEMI 14060010 PFET CEM4435A,SO-8,CET, 14040920 MCP6001T-I/OT,SOT23-5,Microchip 14040900 STM8S103F3P6,TSSOP20 14040921 PT4115-89E,SOT89-5,POWTECH 14040052 TAR5SB50,TOSHIBA/LP2985AIM5-5.0,NATIONAL,5.0V LDO,SOT23-5 14040922...
- Page 12 J4-A 75.0K R13 510 TO PRE J3 R19 510 STM8S103F3P6 R20 510 82pF RED_LED AMP_ON/OFF GREEN_LED SWIM BLUE_LED J5-A NRST 2.2uf OSCIN/PA1 NRST TO AMP J5-B OSCOUT/PA2 VCAP +VDD_ON/OFF LP2985AIM5-5.0 AMP_ON/OFF J2-B MCP6001 ULN2003ADR J8-A TO AMP J2-A J1-A J1-B L5 121 10uf LIMIT SW...
