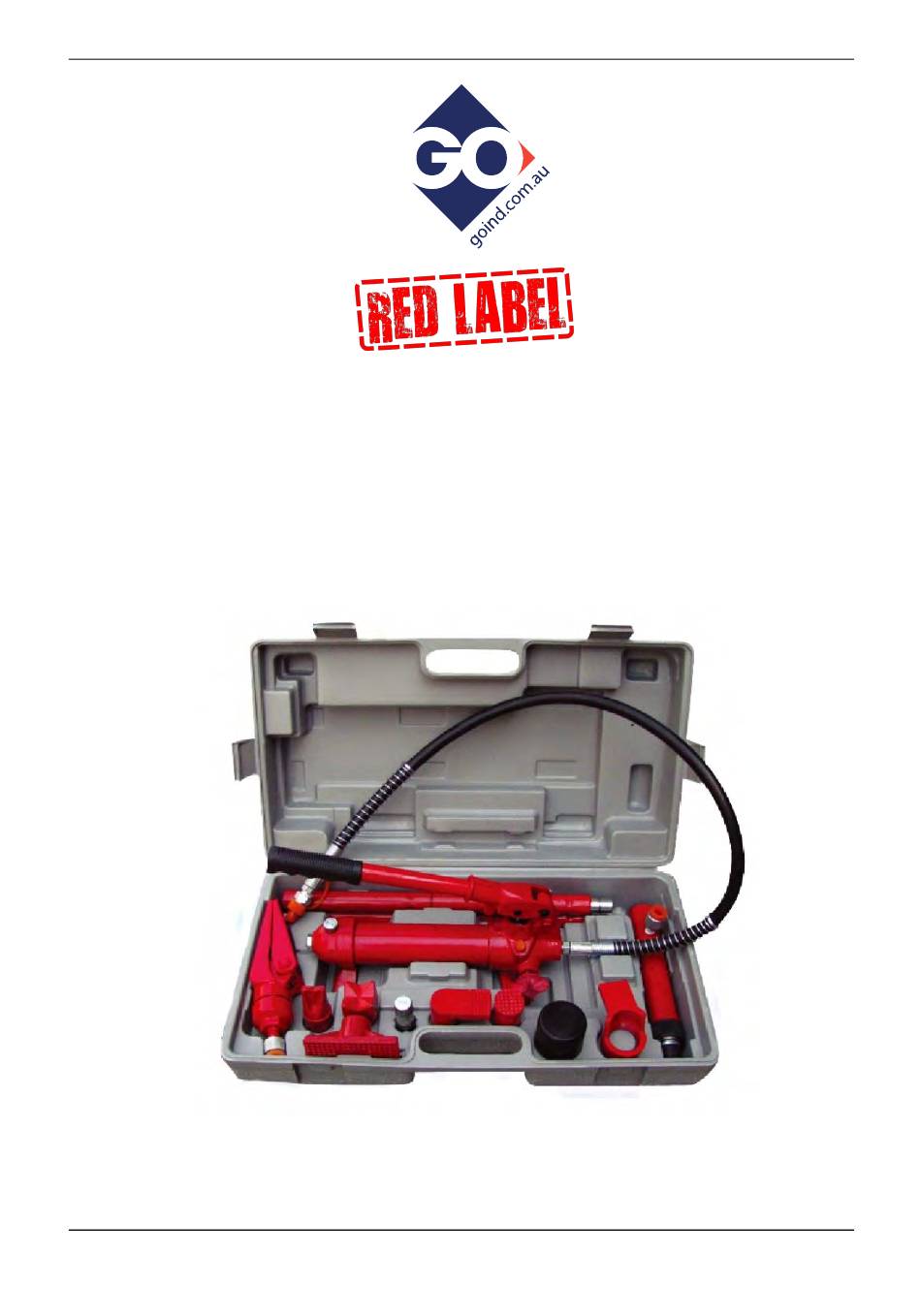

- Page 1 Product Code: RL4TPP OWNER’S MANUAL PRODUCT CODE: RL4TTP AUTO BODY REPAIR KIT 4,000KG...
-
Page 2: Table Of Contents
Keep this manual in a convenient and safe place for future reference. Whilst every effort has been made to ensure accuracy of information contained in this manual, the Red Label policy of continuous improvement determines the right to make modifications without prior warning. -
Page 3: Safety Instructions
Attachments and extension tubes must be aligned and fully engaged so ram force is straight, avoiding an off centre load condition. When servicing, use only Red Label identical replacement parts. Use of any other parts will void the warranty. ... - Page 4 Product Code: RL4TPP Hose Safety Instructions: Before operating the pump, tighten all hose connections using the correct tools. Do not over tighten; connections need only be secure and leak free. Over tightening can cause premature thread failure or high pressure fittings to split at pressures lower than their rated capacity.
-
Page 5: Assembly, Operation & Preventative Maintenance
ASSEMBLY, OPERATION & PREVENTATIVE MAINTENANCE 1. FEATURES The Red Label 4,000kg Hydraulic Auto Body Repair Kit is an auto body repair kit that features extension tubes with a snap lock design for quick and easy assembly. The flex head features a permanently moulded rubber pad, interlocked to prevent separation. - Page 6 Product Code: RL4TPP To attach the spreader wedge to the pump unit. For other attachment combinations. Made in China to TQB Brands Pty Ltd specifications Page 6 Visit us at www.tqbbrands.com.au...
- Page 7 Product Code: RL4TPP 3. BEFORE USE Conduct a thorough visual inspection checking for leaks and any abnormal conditions, such as cracked welds, and damaged, loose, or missing parts. Bleeding Air from the System Air can accumulate in the hydraulic system during the initial setup or after prolonged use, which can cause the hydraulic ram to respond slowly or operate in an unstable manner or even leak hydraulic fluid.
- Page 8 Product Code: RL4TPP 4. OPERATION Prior to each use always conduct a visual inspection checking for leaks and any abnormal conditions, such as cracked welds, and damaged, loose, or missing parts. The hydraulic pump may be operated in a horizontal position, or in a vertical position with the head pointing down as shown.
- Page 9 Product Code: RL4TPP Page 9...
- Page 10 Product Code: RL4TPP 5. MAINTENANCE Inspection: Inspect the product for damage, wear, broken or missing parts and that all components function before each use. Tighten connections as needed. Use pipe thread sealing compound when servicing connections. Only use a high quality hydraulic jack oil. Do not mix different liquids and NEVER USE brake fluid, turbine oil, transmission fluid, motor oil or glycerine.
- Page 11 Product Code: RL4TPP 6. STORAGE This hydraulic auto repair kit should always be stored in a dry location with the pump piston and ram fully retracted on a level surface. Coupler valves should always be screwed in when not in use to keep equipment clean. Always keep couplers and valves debris, dirt and dust free.
-
Page 12: Troubleshooting
Product Code: RL4TPP TROUBLESHOOTING Problem Cause Solution Erratic Action Air in system or pump Bleed the system cavitations. Contact service centre External leakage in ram. Contact service centre Ram sticking or binding. Ram will not extend, or Overload condition. Remedy overload condition... -
Page 13: Parts List
Product Code: RL4TPP PARTS LIST Part Description Part # Description Moulded Case Nylon Sealing Ring Tube Set (4 piece) Screw Flat Base O-Ring Seal Angled Toe Piston Plate Head Hinge Pin Wedge Head Circlip Square V-Hand Pivot Pin Male Connector... - Page 14 Product Code: RL4TPP Page 14...
-
Page 15: Warranty
Product Code: RL4TPP WARRANTY Red Label products have been carefully tested and inspected before shipment and are guaranteed to be free from defective materials and workmanship for a period of 12 months from the date of purchase except where tools are hired out when the guarantee period is ninety days from the date of purchase.
