Quick Start Guide

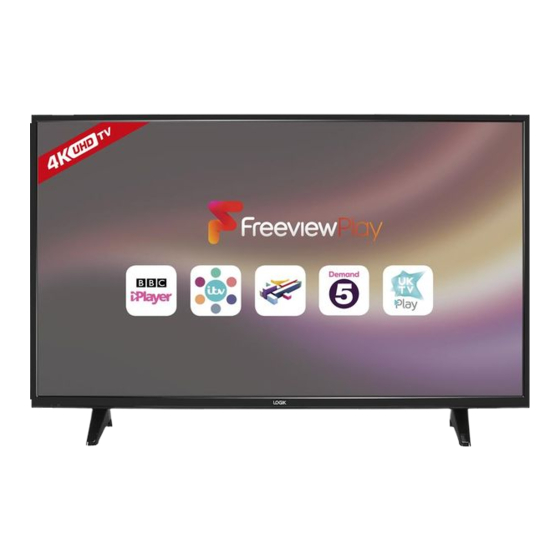

43" LED Smart 4K Ultra HD TV
L43UE17
Unpacking
Remove all packaging from the TV. Retain the packaging.
If you dispose of it please do so according to local regulations.
TV
Remote Control/
AAA Batteries x 2
TV Feet x 2
TV Leg Screws x 6
TV legs (Left and Right)
Instruction Manual
TV Foot Screws x 2
Operating Your Remote Control
1. Slide open the battery compartment on the back of the remote
control.
2. Insert two AAA size batteries. Make sure to match the (+) and ( - )
ends of the batteries with the (+) and ( - ) ends indicated in the battery
compartment.
3. Slide the battery compartment cover back into place. Make sure it
clicks into place.
L43UE17_QSG.indd 1
The latest eco-friendly power-saving technology will
switch off the TV if it is left on and idle for 4 hours. Please
refer to "Auto Standby" under the "Time Settings" section
of the instruction manual for more detail.
3
Installing the Stand
Left foot
Right foot
Fitting the Feet
1. Ensure the TV is switched off and not
connected to the mains power supply.
2. Lay the TV down on a flat surface ideally
on the edge of a table so the base of the
TV slightly overhangs the edge of the table,
with the back side facing up. Please make
sure a soft cushioned material (such as a dry
bath towel or thick piece of foam) is placed
beneath the screen.
3. Screw the foot and leg together using the
supplied screw.
4. Position the each foot onto the back of the
stand. They are marked Left and Right on the
back of each foot. Make sure you slide the lug
under the recess.
5. Using 3 of the supplied screws, to screw each
foot onto the TV.
The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be sure that
no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with it. DO NOT exert
pressure on the front of the TV at any time because the screen could crack.
Connecting the Aerial and Turning on the TV
1. Connect one end of the RF coaxial cable
Optional
to the aerial socket on the wall and the
other end of the cable to the ANT socket
If you want to connect to the internet via a wired connection then
on the back of your TV.
connect your ethernet cable to the LAN socket.
2. Plug the TV into a mains socket and
switch on at the mains.
3. In standby mode, press the
button on
the remote control to turn the TV on. The
LED indicator will flash for a few seconds
then the TV will switch on.
• Do not connect the TV to the mains supply until you have completed all the connections.
• Always disconnect the TV from the mains socket when not in use for a long period of time.
• The
button on the remote control is only used for switching the TV into standby, it does not disconnect the TV from the
mains power. To completely disconnect the mains power, please remove the mains plug from the mains socket.
Table
Cushioned
material
RF coaxial cable
(not included)
25/07/2017 10:39
