Summary of Contents for Nowatt Lighting ONYX

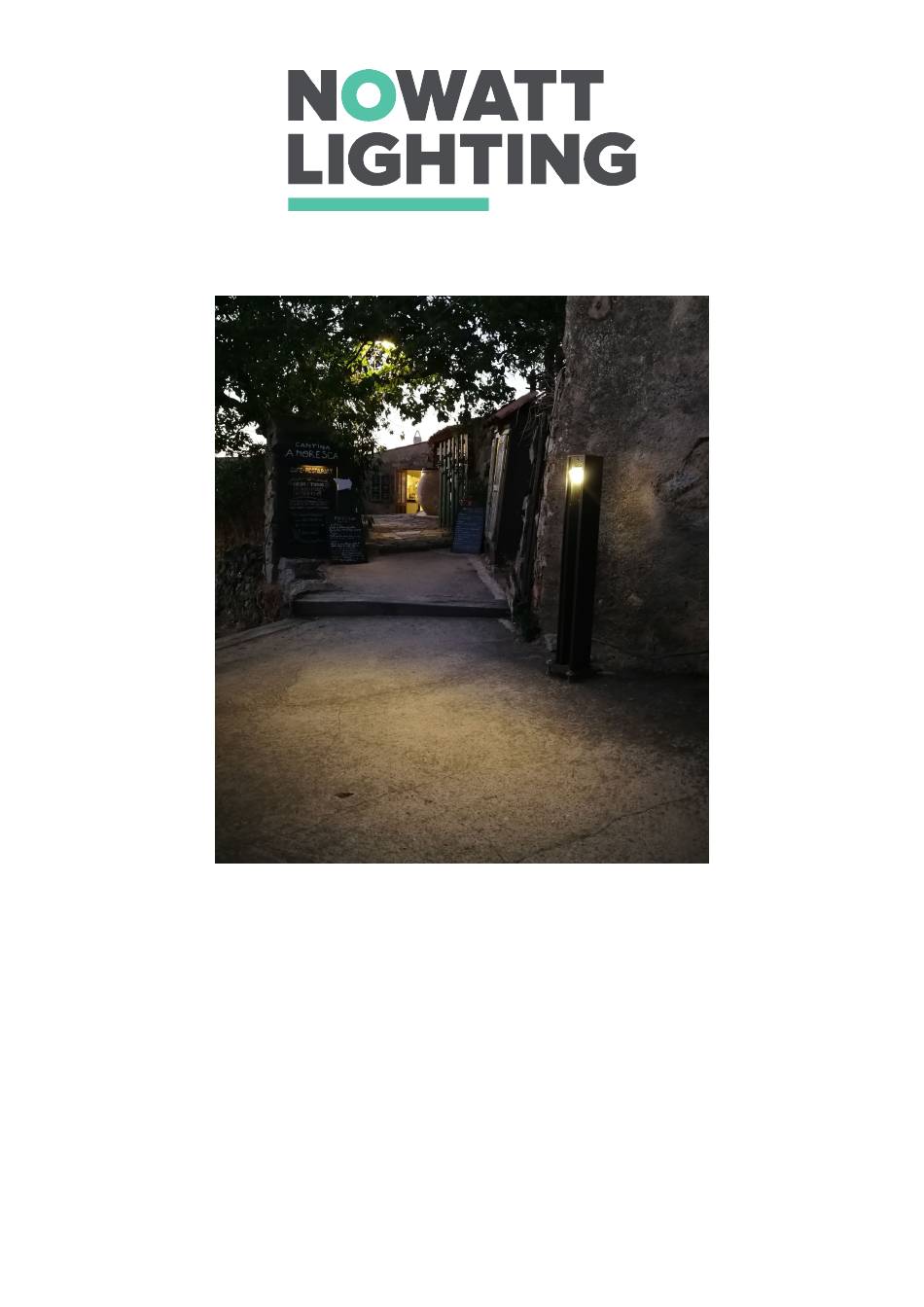

- Page 1 ONYX BOLLARD User guide...
-
Page 2: Table Of Contents
Sommaire Introduction……………………………………………………………………………………………………. Overview……………………………………………………………………………………………………………….………………. Unpacking..…………………………………………………………………………………....…………………..... Operation.……………………………………………………………………………………..…..……… Fixture positioning tips……………………………..………………………………………………………...………...…….. Control with the Nowatt Lighting application.…………………………………………………..………….…….. Installation.…………………………………….……………………………………………………..…..Installation ……………..……………………………………..………………………………………………………………… Maintenance and care…………….………………………………………………………………………. Cleaning……………………..………………………………………………………………………………………….……………… Risks of material damage…………...……………………………………………………………………………………….. Waste management..…………...……………………………………………………….………………………………...…… CE declaration of conformity...……………………………………..............Warranty………………………………………………………………………………….……………………………………….……. -
Page 3: Introduction
Introduction Overview Usage : Solar outdoor lighting bollard connected with LED. The Onyx bollard is standalone thanks to a solar panel and a battery. Optic: 30/60°. Color of the LEDs, at your choice: - White shades 2 LEDs 2700 K and 2 LEDs 5700 K for the 4W reference. -
Page 4: Unpacking
Do not put the product into service in case of damaged solar panel or optical block. The identification number of your Onyx bollard is indicated on a label inside the bollard’s head, under the board E. The smartphone applicaton also allows to know the identification number (see... - Page 5 Introduction Orientation of the optical block towards the right area to enlighten: - Unscrew the 4 screws on the side panel, - Remove the side panel to access M12 screw, - Repeat these operations on the second side of the panel, - Unscrew the 2 M12 screws (one turn of loosening is enough), - Orientate the optical block towards the area to be illuminated, - Tighten the 2 M12 screws,...
-
Page 6: Operation
Operation Fixture positioning tips Choose a suitable location where sunlight can directly reach the solar panel. Avoid obscuration by eaves or trees. In the northern hemisphere, favor installation to the south of obstacles, to the east or west. Do not install north of an obstacle. In the southern hemisphere, favor installation to the north of obstacles, to the east or to the west. -
Page 7: Control With The Nowatt Lighting Application
Control with the Nowatt Lighting application Download the Nowatt Lighting app The Nowatt Lighting application is free to download from the Play Store and the Apple Store. You can download it on a smartphone or a tablet. Turn on the bollard manually - Unscrew the plate located under the bollard head. - Page 8 Operation Homepage information Identification number of your product Battery charge status Mode : OFF / Activated / Demo Your module may display a 0% state of charge on startup. Wait Identification of the model of your a few seconds for the actual product percentage to display.
- Page 9 Scénario 3 : Lighting on detection of presence for 2 minutes, throughout the night. Scénario 4 : Specific scenario programmed in factory by Nowatt Lighting, on demand at the order. Check your programming If the home page indicates OFF or Demo, your scenario is not saved, you must repeat the previous steps.
-
Page 10: Installation
Installation Information given as an indication. Make a concrete base with anchor rods. The anchoring rods are not supplied. Height of the Onyx bollard 1 meter Dimensions of the concrete block 400 x 400 x 400 mm (side x side x height) -
Page 11: Maintenance And Care
Waste management Please observe the legal obligations relating to waste management. Return old devices to your dealers or directly to Nowatt Lighting. Do not dispose of old devices with unsorted household waste. Do not throw old devices into fire or water. -
Page 12: Warranty
Maintenance and care Warranty Nowatt Lighting products are manufactured with the utmost care. The function and safety of this product have been tested according to the currently valid directives, with a final inspection. Nowatt Lighting guarantees faultless condition and operation.
