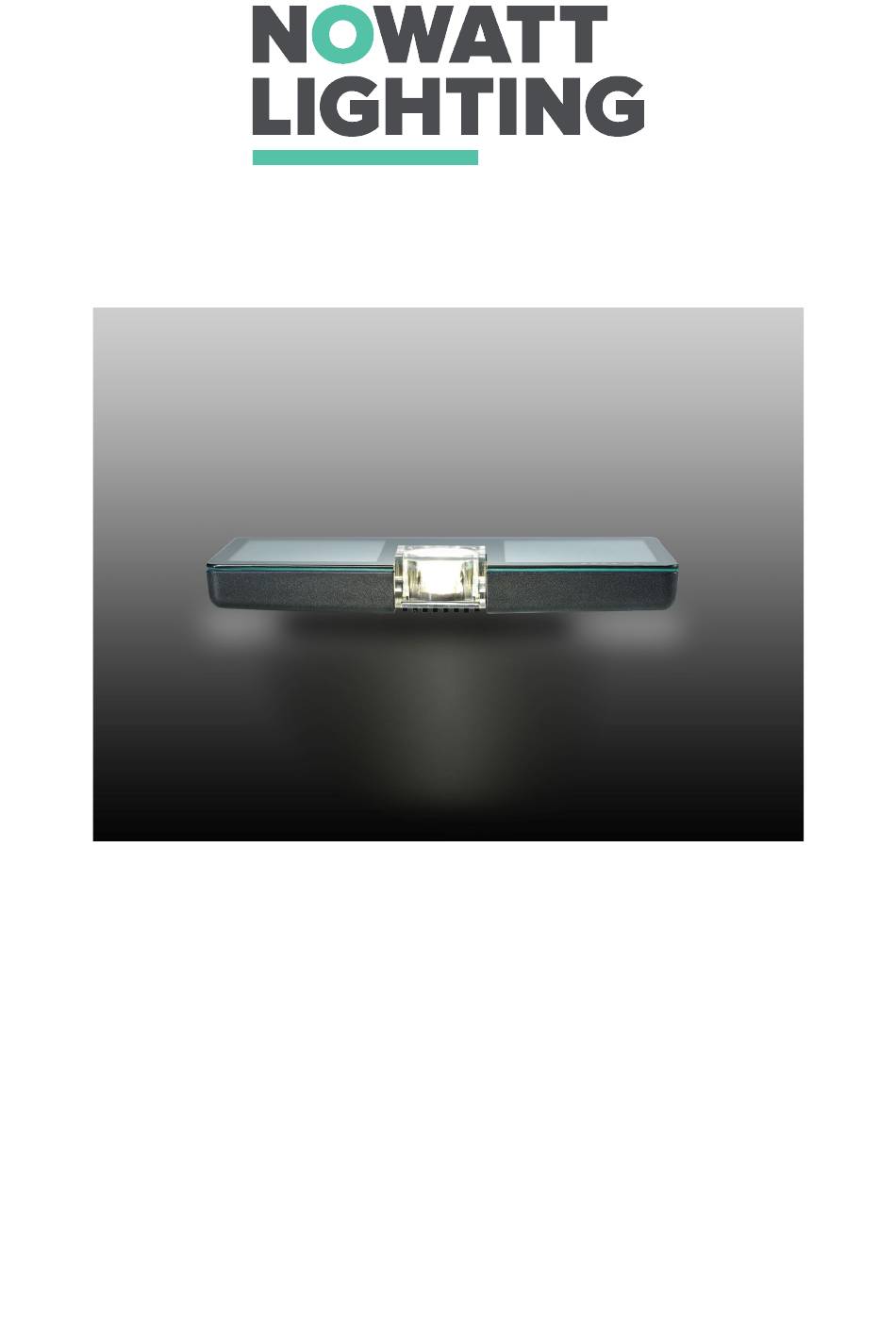

- Page 1 ONYX PROJECTOR User guide...
-
Page 2: Table Of Contents
Sommaire Introduction……………………………………………………………………………………………………. Overview……………………………………………………………………………………………………………….………………. Unpacking..…………………………………………………………………………………....…………………..... Operation.……………………………………………………………………………………..…..……… Fixture positioning tips……………………………..………………………………………………………...………...…….. Control with the Nowatt Lighting application.…………………………………………………..………….…….. Installation.…………………………………….……………………………………………………..…..Installation ……………..……………………………………..………………………………………………………………… Maintenance and care…………….………………………………………………………………………. Cleaning……………………..………………………………………………………………………………………….……………… Risks of material damage…………...……………………………………………………………………………………….. Waste management..…………...……………………………………………………….………………………………...…… CE declaration of conformity...……………………………………..............Warranty………………………………………………………………………………….……………………………………….……. -
Page 3: Introduction
Introduction Overview Usage : Solar outdoor lighting projector connected with LED with no cabling. The Onyx projector is standalone thanks to solar panels and a battery. Optic at choice: • 5°: very narrow circular optic • 20°: medium circular optic •... -
Page 4: Unpacking
Check all parts of the product for damage. Do not put the product into service in case of damaged solar panel or LEDs. The identification number of your E-Onyx projector is indicated on a label at the back of the product. -
Page 5: Operation
Operation Fixture positioning tips Choose a suitable location where sunlight can directly reach the solar panel. Avoid obscuration by eaves or trees. In the northern hemisphere, favor installation to the south of obstacles (on facades, on a pole or other), or to the east or west. Do not install due north of an obstacle. In the southern hemisphere, favor installation to the north of obstacles, to the east or to the west. -
Page 6: Control With The Nowatt Lighting Application
However, the application is more convenient to use remote projectors. Download the Nowatt Lighting app The Nowatt Lighting application is free to download from the Play Store and the Apple Store. You can download it on a Smartphone or a tablet. - Page 7 3. For each scenario, you have the possibility to adjust the white temperature of the LED or the color if your Onyx has RGBW LEDs. 4. To apply the scenario, tap "Use this scenario".
- Page 8 Scénario 3 : Lighting on detection of presence for 2 minutes, throughout the night. Scénario 4 : Specific scenario programmed in factory by Nowatt Lighting, on demand at the order. Check your programming If the home page indicates OFF or Demo, your scenario is not saved, you must repeat the previous steps.
-
Page 9: Installation
Installation Installation Use of fastening devices: Wall-mounted fastening. Steel treated with antioxidation wall bracket; black powder coated polyester finish Length 50 mm (D1) or 200 mm (D2). Top bracket for column diameter 60 mm. Steel treated with antioxidation, black powder coated polyester finish. Length 50 mm (D5) or 200 mm (D6). -
Page 10: Maintenance And Care
Waste management Please observe the legal obligations relating to waste management. Return old devices to your dealers or directly to Nowatt Lighting. Do not dispose of old devices with unsorted household waste. Do not throw old devices into fire or water. -
Page 11: Warranty
Maintenance and care Warranty Nowatt Lighting products are manufactured with the utmost care. The function and safety of this product have been tested according to the currently valid directives, with a final inspection. Nowatt Lighting guarantees faultless condition and operation.
